CCT & Power Tunable Dimmable LED Wall Pack

YG042NIT-S-3C-DM
ETL/DLC/5 Year Warranty
Power:
Color Temperature:
Standard:
Availability:
Quantity:
  • YG042NIT-S-3C-DM

  • Youth Green

CCT & Power Tunable Dimmable LED Wall Pack

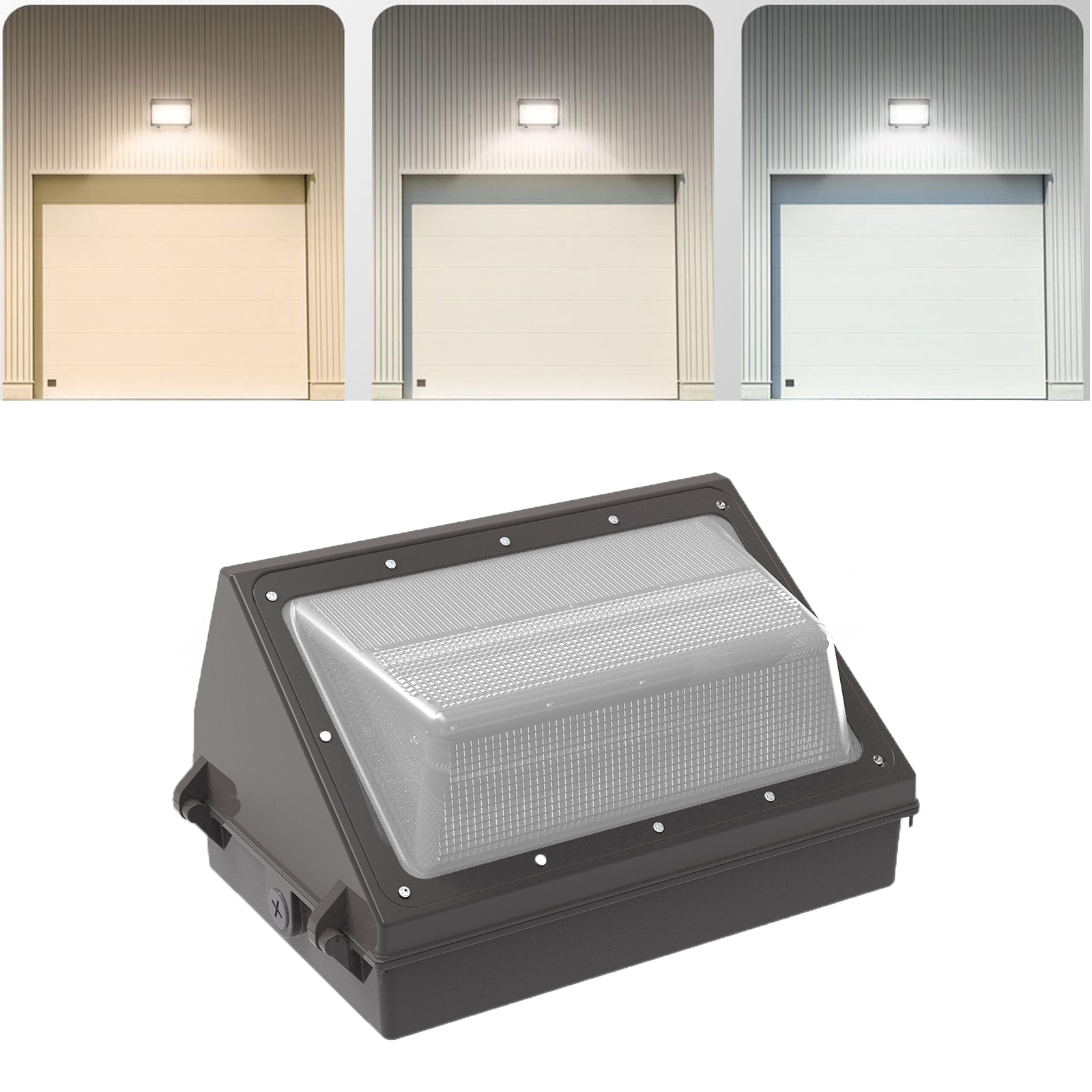

  • 3 color temperatures - Our LED wall pack exterior light offers three different color temperatures (3000K, 4000K, 5000K) that can be adjusted to your preference.

  • 3 Wattage Adjustable - Our LED wall pack light comes with a photoelectric controller, a maximum power of 120W, and a maximum brightness of 15000 lumens. It has three power options (40W-50W-60W/80W-100W-120W) that can be adjusted according to different usage environments and installation heights.

  • Suitable for warehouses, barns, yards, factories, and other places.

  • Sturdy and durable - Our LED wall pack light has a die-cast aluminum shell and high-hardness tempered glass, with an IP65 waterproof rating and IK08 impack rating. It has a lifespan of over 50,000 hours.

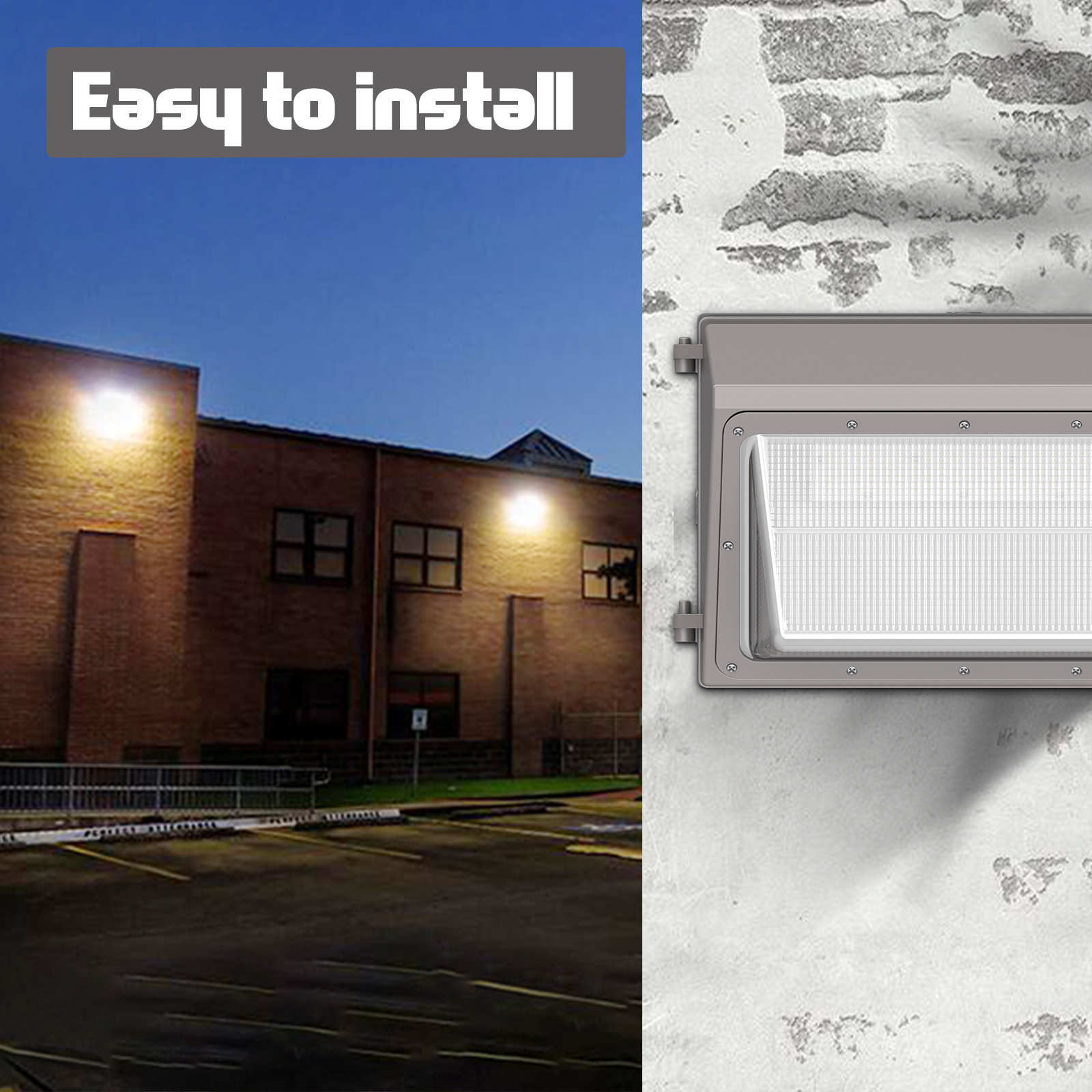

  • Easy installation - Our LED wall pack light comes with a pre-wired standard junction box, making it fast and easy to install. Suitable for mounting on walls or pillars between 15-22 feet high.

CCT & Power Tunable Dimmable LED Wall Pack


  • Power: 40-50-60W Seletable/80-100-120W Seletable

  • Input Voltage: AC120-347V

  • Frequency Range: 50Hz/60Hz

  • Luminous Efficacy: 130lm/w

  • Color Temperalure: 3000K/4000K/5000K in One

  • IP Rate: IP65(WATERPROOF)

  • Beam Angle: 100*100°

  • Total Harmonic Distortion: ≤20%

  • Power Factor: >95%

  • LED Working Voltage: DC28-50VLED Quantity: SMD2835 1W High Brightness LED

  • Lamp's Efficiency: >90%

  • lluminance Uniformity: > 0.8

  • Color Rendering Index: Ra> 80

  • Light Distribution: Symmetrical / Circular Spot

  • Light Design: ADC12 + PC Lens/Glass Cover

  • LED Junction Temperature: ≤90°C

  • Working Temperature: -40°C-+50°C

  • Storage Temperature: -25°C+65°C

  • Working Life-span: > 50,000H

  • Warranty: 5 years

  • Brand of LED Chip: San'an Chip


  • AC100-277V, 10KV surge protection dewice

  • AC100-277V 20KV surge protection deice

  • Daylight sensor , DC12V

  • Infrared sensor & daylight sensor, AC120-277V

  • The remote controller of Infared sensor
