  • YG017

  • YOUTH GREEN

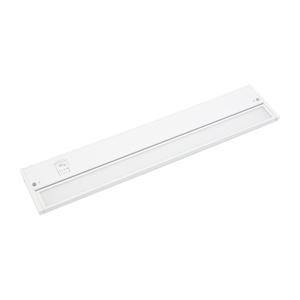

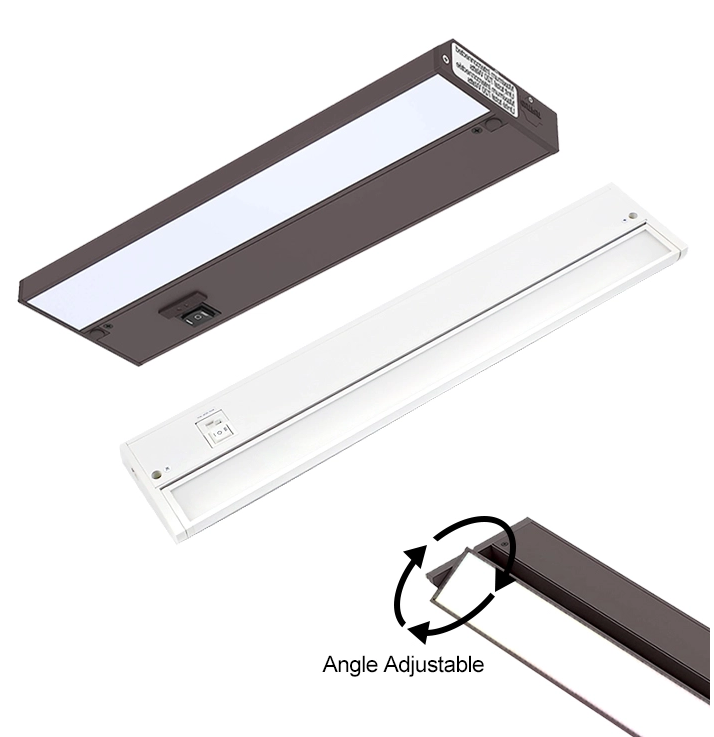

LED Kitchen Light under Cabinet


  • CRI90+

  • 3-IN-1 COLOR LEVEL SWITCH. Set the color temperature to your desired level. Choose between 3 color levels: Soft White (3000K), Cool White (4000K) and Day Light (5000K). On/Off Switch included on each fixture.

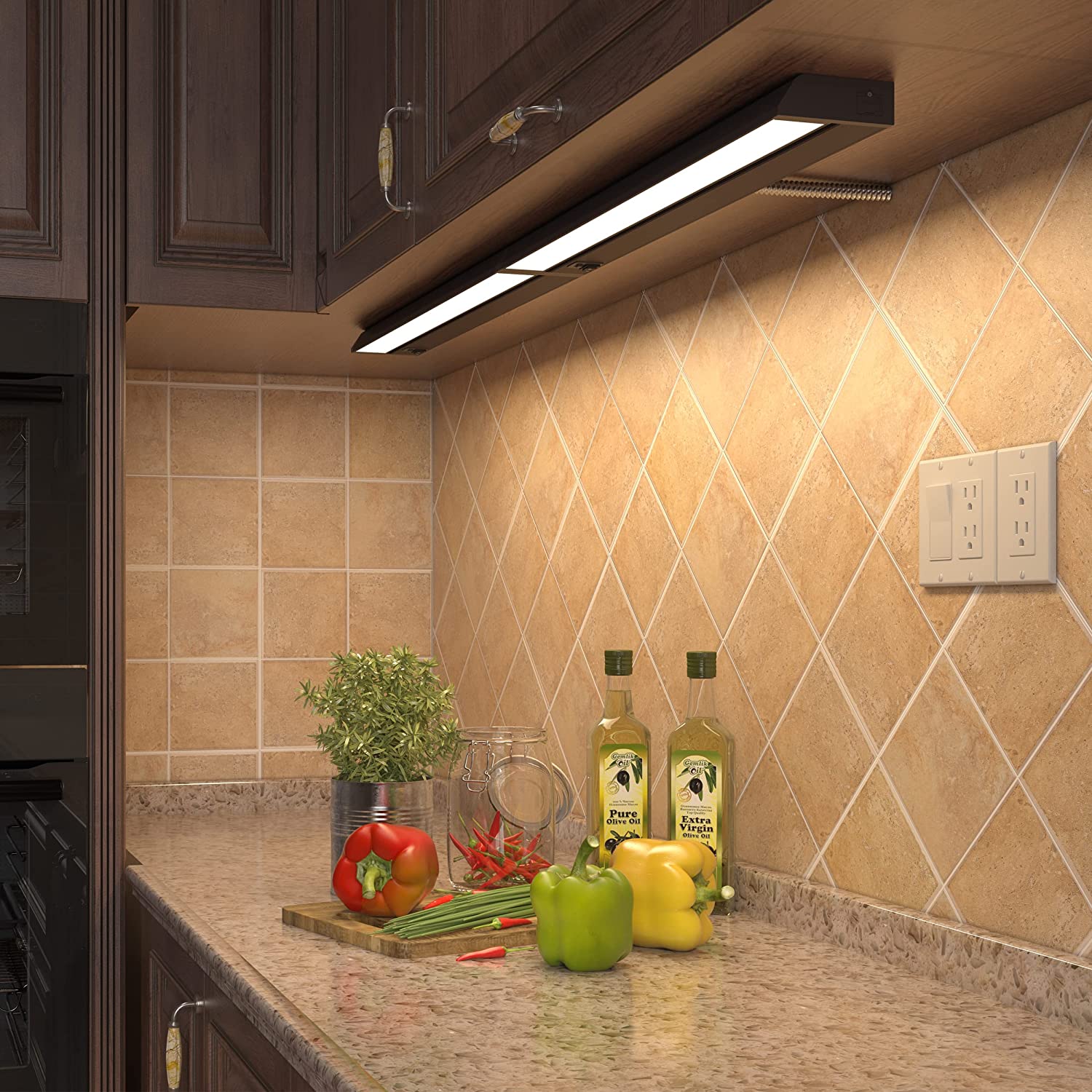

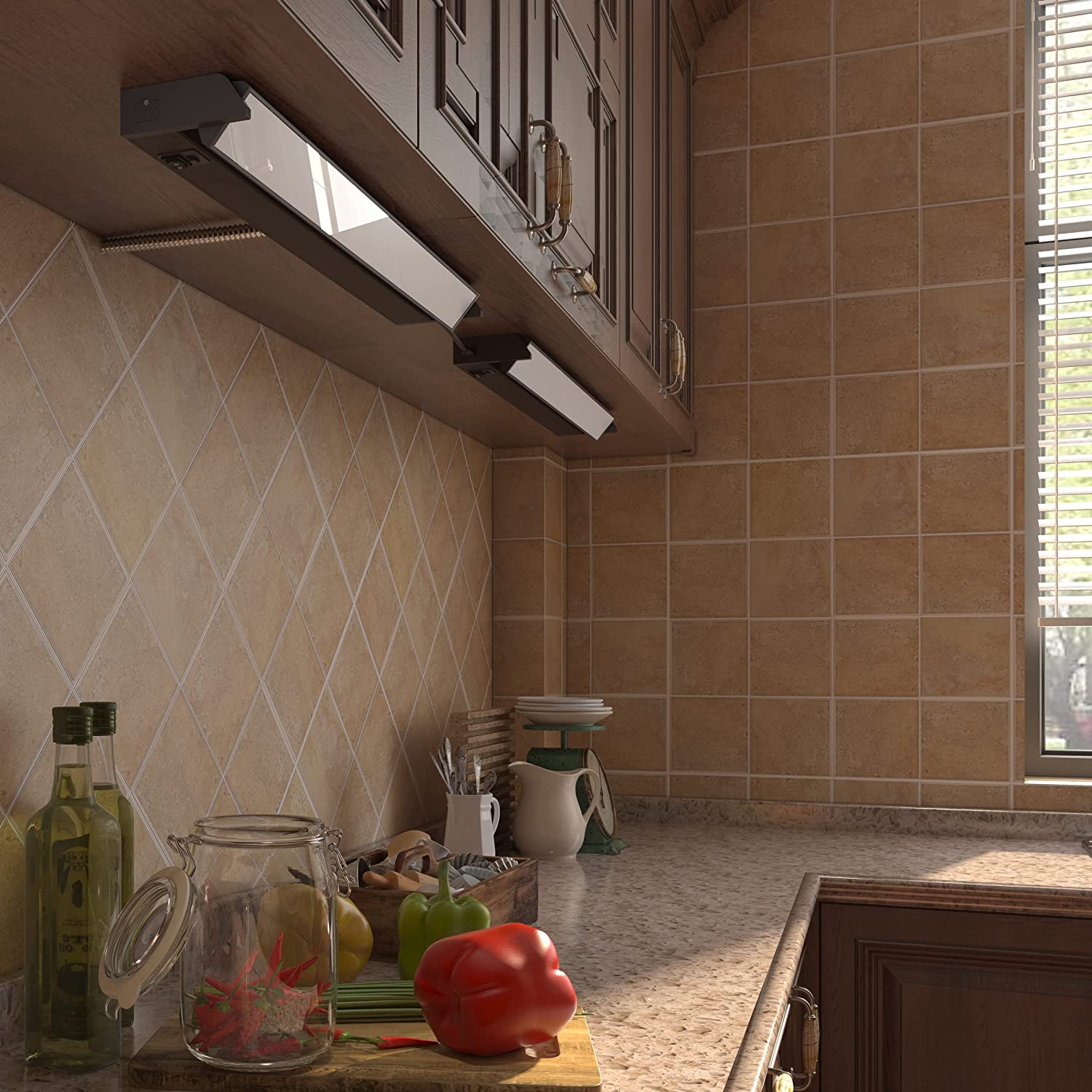

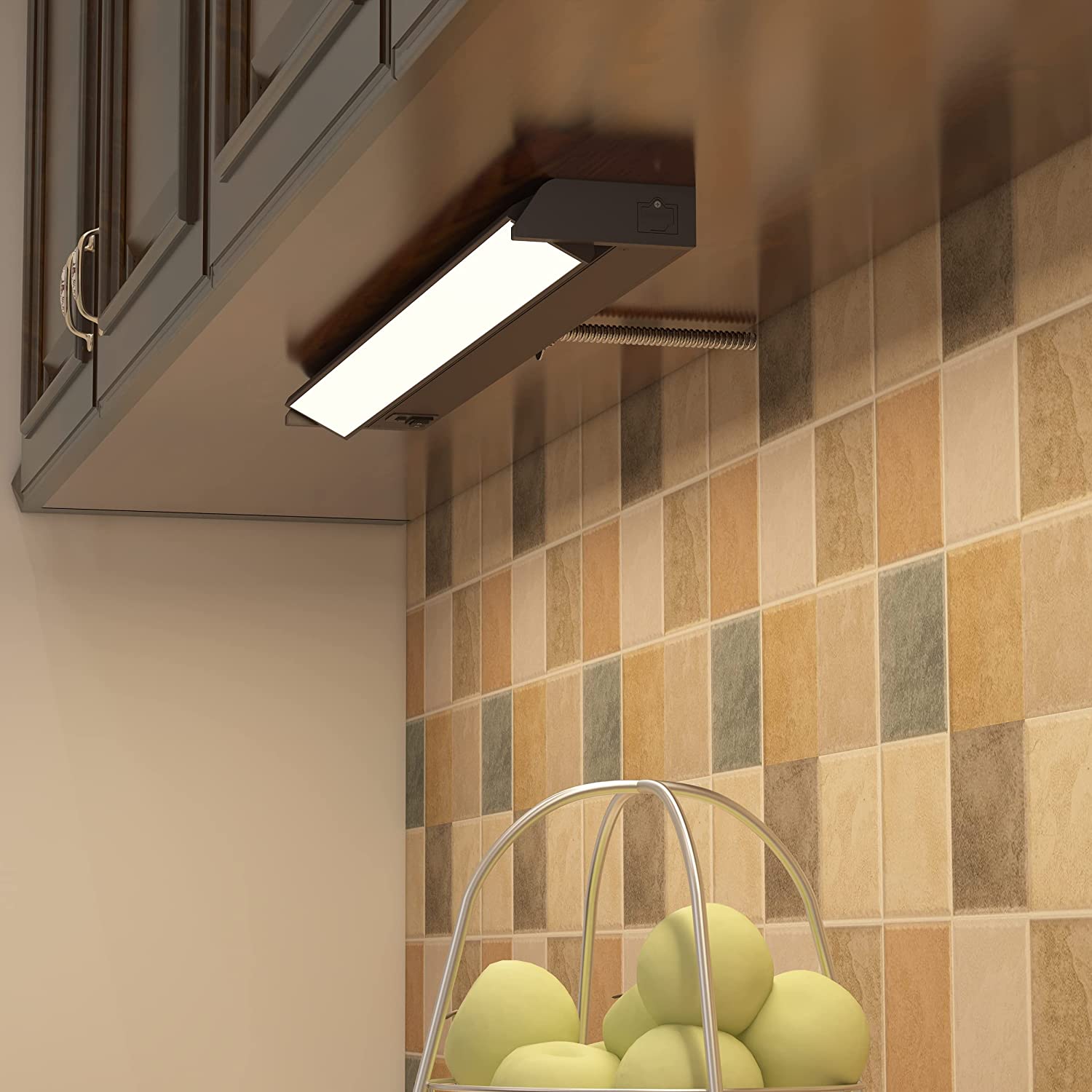

  • This LED under cabinet lighting is perfect for your family room, bedroom, cabinet, kitchen, etc. It is also damp location rated. You could also use it as a complimentary light to an already existing main light

  • Provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top-quality products and safety!

  • This product meets strict requirements to be considered energy efficient, safe and reliable. Constructed with an aluminum body to ensure lifetime durability.


LED Under Cabinet Lighting


  • Size:9inch/12inch/18inch/24inch/32inch/40inch/48inch

  • Power:3W/5W/8W/12W/16W/20W/24W

  • lumen:185LM/385LM/618LM/908LM/1180LM/1509LM/1810LM

  • Input Voltage:AC120V,50Hz/60Hz

  • Color Temperature:3CCT(3000K-4000K-5000K)

  • Beam Angle:110 degree

  • Power Factor:0.95~0.98

  • Operating Temperature:-20℃-40℃

  • Life Span Based on 3hrs/day:45years

  • IP range:IP44(Damp Locations)

  • Material:Aluminum housing

  • Finish Type:White or Black

INSTRUCTIONS FOR PROPER ASSEMBLY


PLUG IN INSTALLATION:

Step 1:Attach the fxture to the surface using 2 screws.

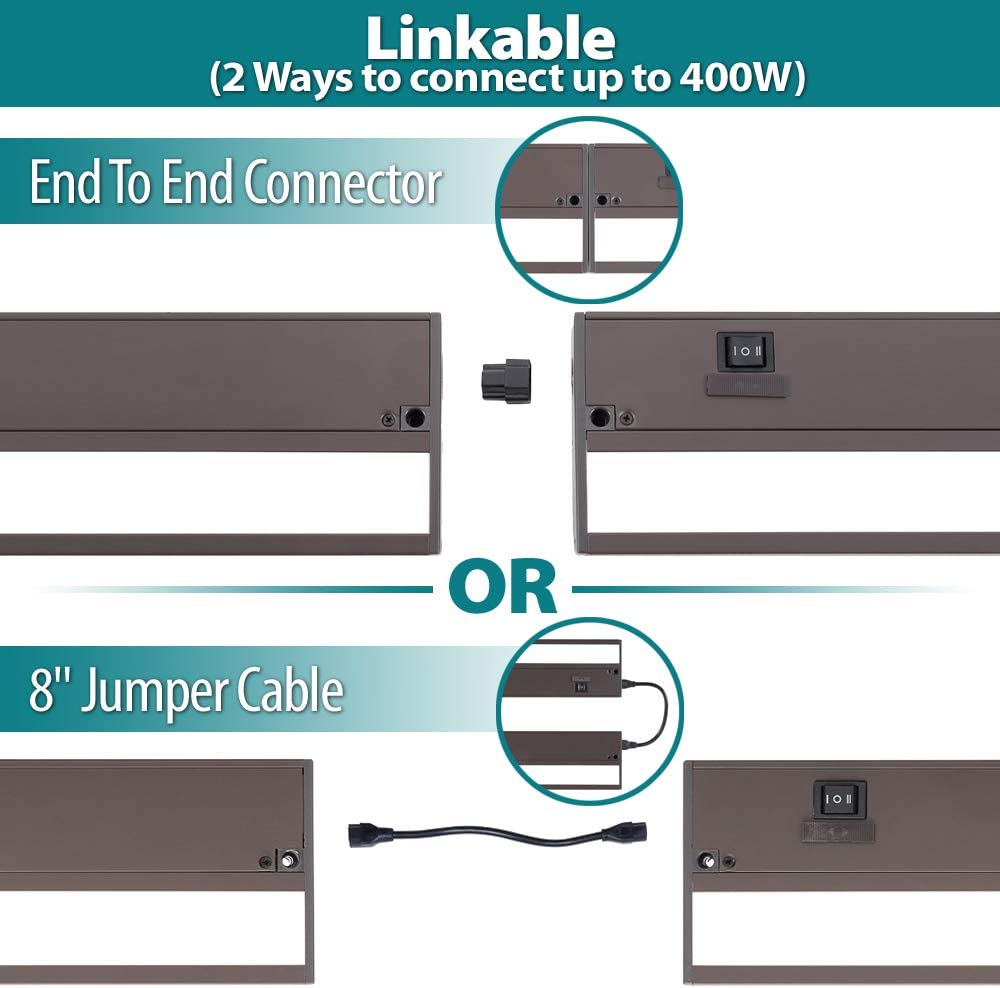

Step 2:Link the multiple fxtures together with end to end connector or linking cord.Plug the power cord into the socket.

Step 3:Choose needed color temperature and lighting mode Low or High by switch.


HARDWIRE INSTALLATION:

Step 1:Remove the knock-out.Dismount adapter plate by loosening screw. Insert the romex connector into the open hole and secure it with the nut.

Step 2:connect the wires to match colors: white to white, black to black, green to green.Tuck all the wires into the fixture and reattach the adapter plate by tightening the screw.

Step 3:Attach the fxture to the surface using 2 screws, Link the multiple fxtures together with end to end connector or linking cord.choose needed color temperature and lighting mode Low or High by switch.

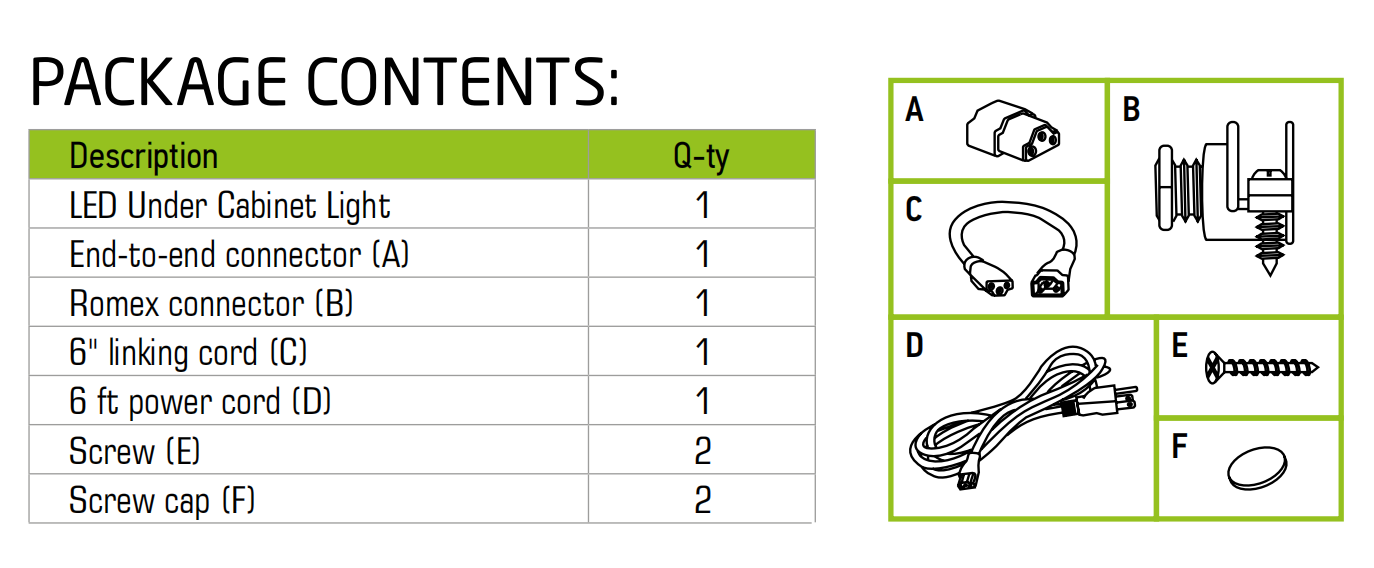

Accessories
