LED Linear Downlights

INSTRUCTIONS FOR PROPER ASSEMBLY

• Turn power OFF from the electrical panel prior to installation.

• Determine the location for installation and cut ceiling hole in accordance with cut-hole dimensions.Refer to Hole Diameter table forappropriate sizes.

• Open the junction box cover and remove the appropriate knockout(s)on the side panel.

• Insert the electrical supply cable through the knockout and secure witha cable connector(sold separately).

• Using quick-connect push-in terminals,connect the ground wire to thegreen wire terminal;black wire to black wire terminal;white wire towhite wire terminal.

• Select the light color temperature:5000K-4000K-3500K-3000K-2700K.

• Place all wiring and connections back in to the box and close the cover.Connect the driver to the light panel.

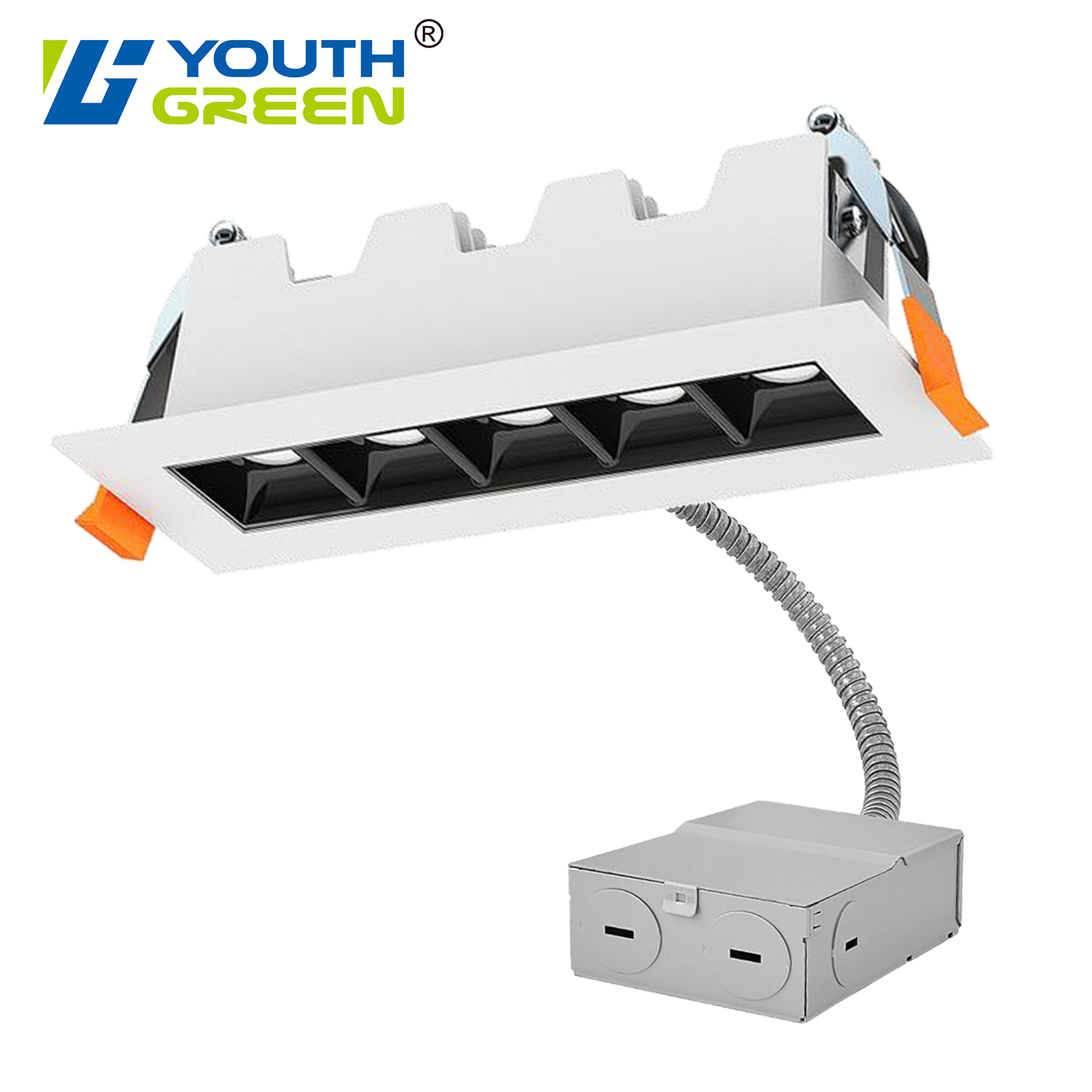

• Insert junction box through the mounting hole.

• Push spring-loaded clips on the fixture upwards and insert fixture basein to the mounting hole.Release the clips and fixture will be pulledflush tothe ceiling.
