YG042NI-S-3C-WL-DM
Youth Green
LED Wall Pack

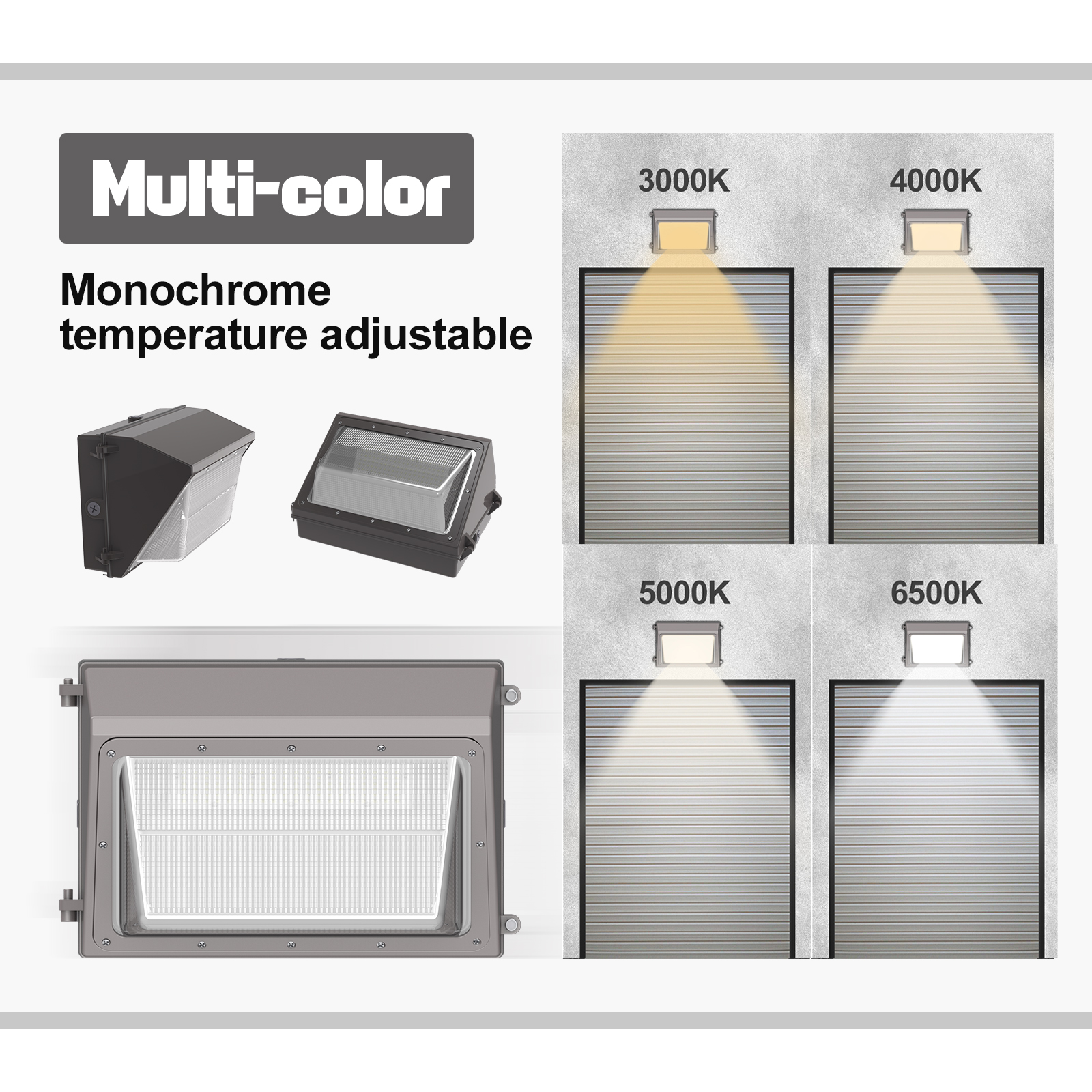

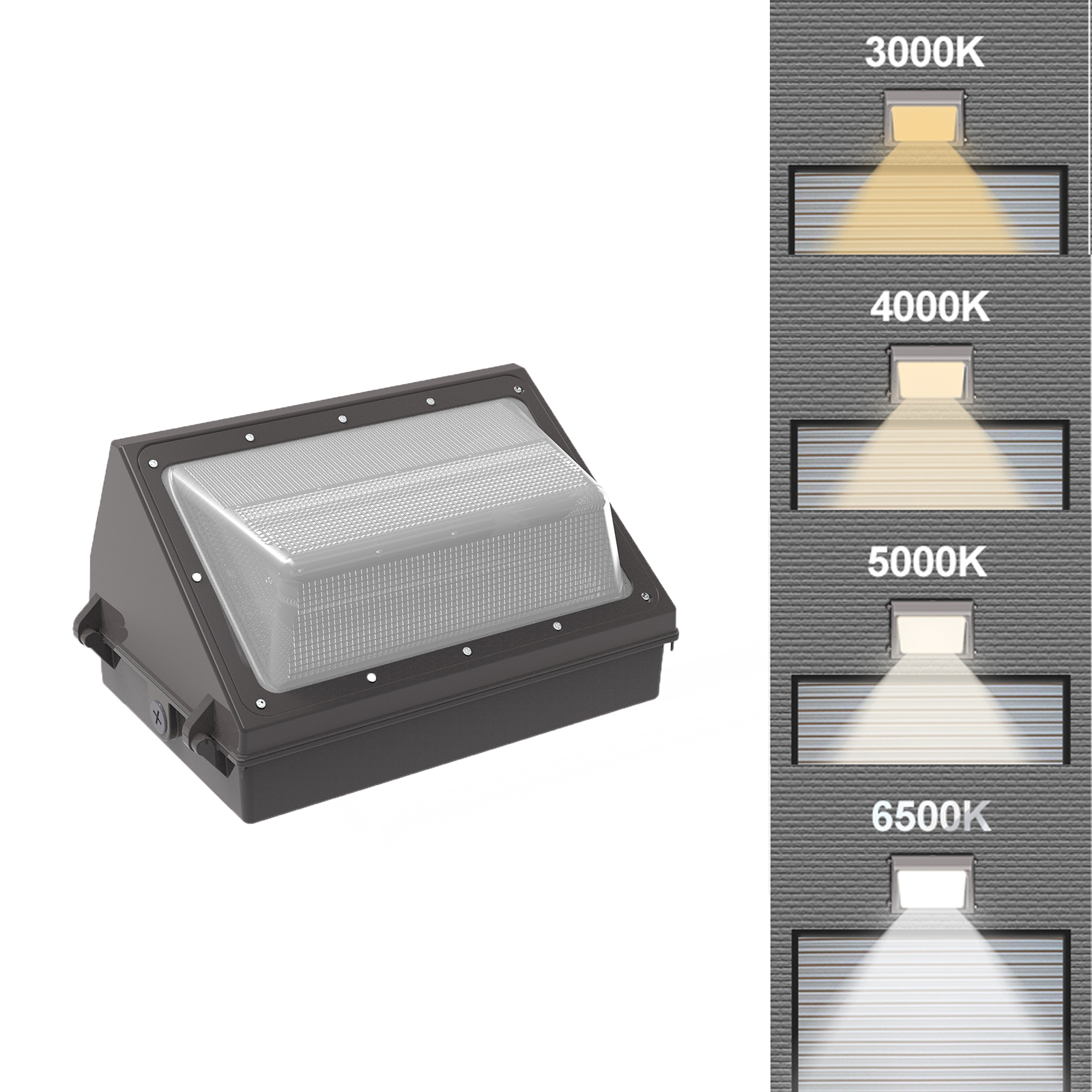

Single color 3000K/4000/5000K/6000K
PC/Glass Cover for optional

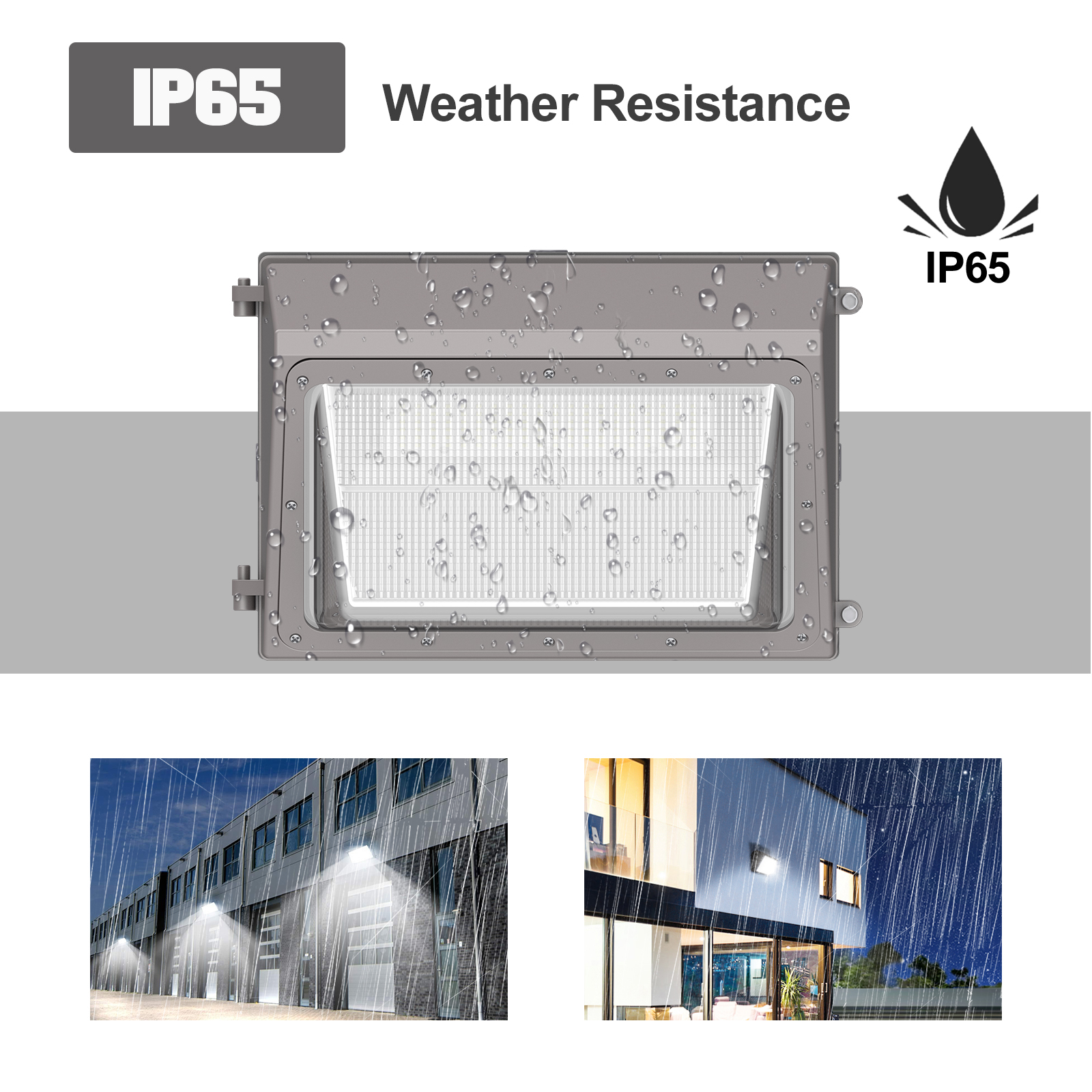

IP65 Waterproof & Long Life

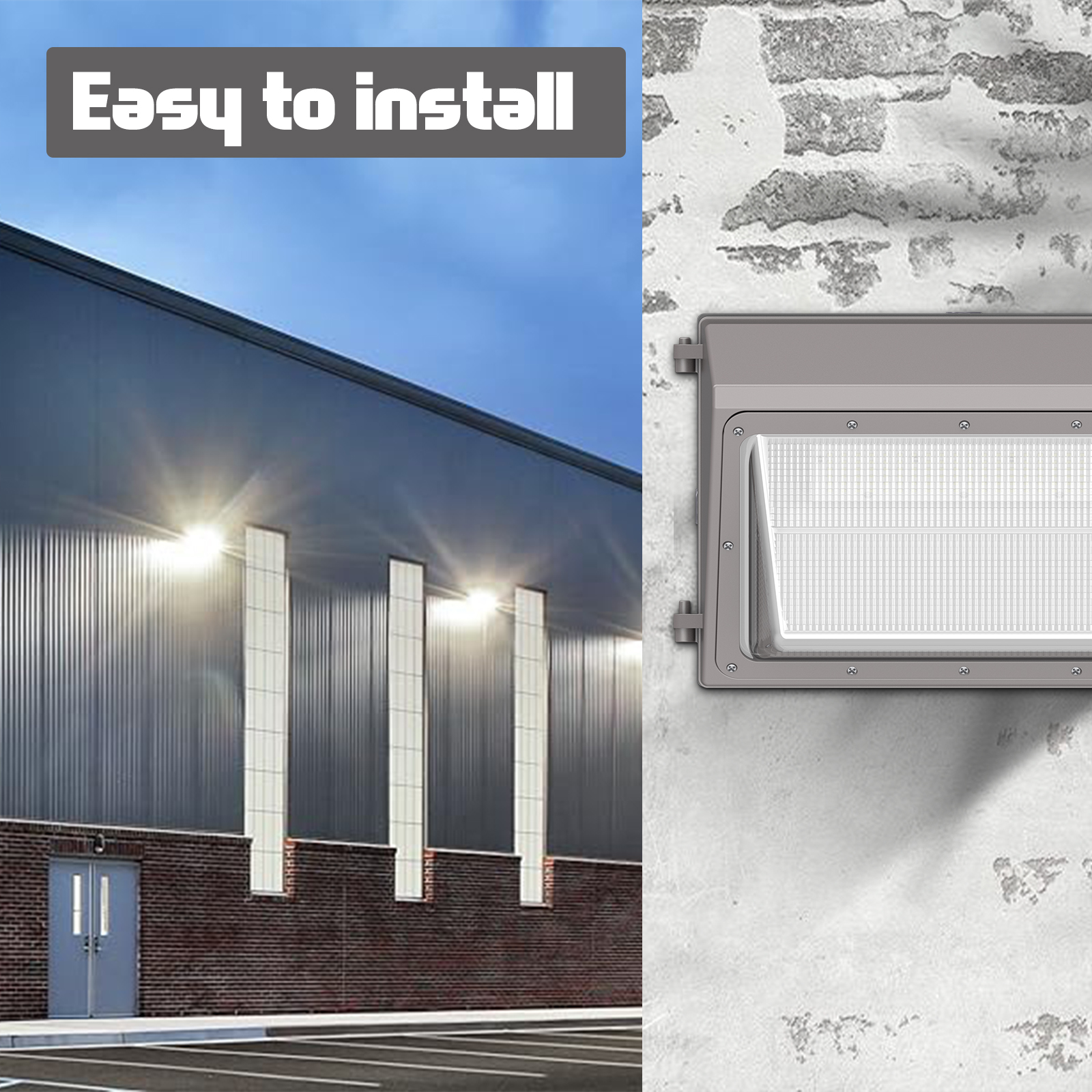

Easy Installation & Sturdy
Wide Applications
Dedicated AFTER-SALE Support
LED Wall Pack
Single color 3000K/4000/5000K/6000K
PC/Glass Cover for optional
IP65 Waterproof & Long Life
Easy Installation & Sturdy
Wide Applications
Dedicated AFTER-SALE Support
LED Wall Pack
Power: 40W/60W/80W/100W/120W
Lumen:4000LM/6000LM/8000LM/10000LM/1200LM
Input Voltage: AC120-277V
Frequency Range: 50Hz/60Hz
Luminous Efficacy: 130lm/w
Color Temperalure: 3000K/4000K/5000K/6500K
IP Rate: IP65(WATERPROOF)
Beam Angle: 100*100°
Total Harmonic Distortion: ≤20%
Power Factor: >95%
LED Working Voltage: DC28-50VLED Quantity: SMD2835 1W High Brightness LED
Lamp's Efficiency: >90%
lluminance Uniformity: > 0.8
Color Rendering Index: Ra> 80
Light Distribution: Symmetrical / Circular Spot
Light Design: ADC12 + PC Lens/Glass Cover
LED Junction Temperature: ≤90°C
Working Temperature: -40°C-+50°C
Storage Temperature: -25°C+65°C
Working Life-span: > 50,000H
Warranty: 5 years
Brand of LED Chip: San'an Chip
LED Wall Pack
Power: 40W/60W/80W/100W/120W
Lumen:4000LM/6000LM/8000LM/10000LM/1200LM
Input Voltage: AC120-277V
Frequency Range: 50Hz/60Hz
Luminous Efficacy: 130lm/w
Color Temperalure: 3000K/4000K/5000K/6500K
IP Rate: IP65(WATERPROOF)
Beam Angle: 100*100°
Total Harmonic Distortion: ≤20%
Power Factor: >95%
LED Working Voltage: DC28-50VLED Quantity: SMD2835 1W High Brightness LED
Lamp's Efficiency: >90%
lluminance Uniformity: > 0.8
Color Rendering Index: Ra> 80
Light Distribution: Symmetrical / Circular Spot
Light Design: ADC12 + PC Lens/Glass Cover
LED Junction Temperature: ≤90°C
Working Temperature: -40°C-+50°C
Storage Temperature: -25°C+65°C
Working Life-span: > 50,000H
Warranty: 5 years
Brand of LED Chip: San'an Chip
INSTRUCTIONS FOR PROPER ASSEMBLY
Mounting method 1：
Take apart the PC cover and fixture housing
Put the fixture on the wall,drill 3 holes to get through the
Get expansion screws into the holes,match the fixture to the bolts,then fix the fixture on the wall by screws lastly get the PC cover and fixture housing back together.
Mounting method 2：
Loosen screws and remove the front lens set carefully from the back plate
Remove 1/2 inch plug from where you intend to feed conduit
Drilling out the holes (C) to secure it on the wall with chossing proper screws
Finish wiring(Black for line,White for neutral and Green.Yellow Green for ground
Replace the lens set on the hinge and finish cnnections,Close the lens set and tighten the screws to fasten the lens set to the back plate.
INSTRUCTIONS FOR PROPER ASSEMBLY
Mounting method 1：
Take apart the PC cover and fixture housing
Put the fixture on the wall,drill 3 holes to get through the
Get expansion screws into the holes,match the fixture to the bolts,then fix the fixture on the wall by screws lastly get the PC cover and fixture housing back together.
Mounting method 2：
Loosen screws and remove the front lens set carefully from the back plate
Remove 1/2 inch plug from where you intend to feed conduit
Drilling out the holes (C) to secure it on the wall with chossing proper screws
Finish wiring(Black for line,White for neutral and Green.Yellow Green for ground
Replace the lens set on the hinge and finish cnnections,Close the lens set and tighten the screws to fasten the lens set to the back plate.
