YOUTH GREEN

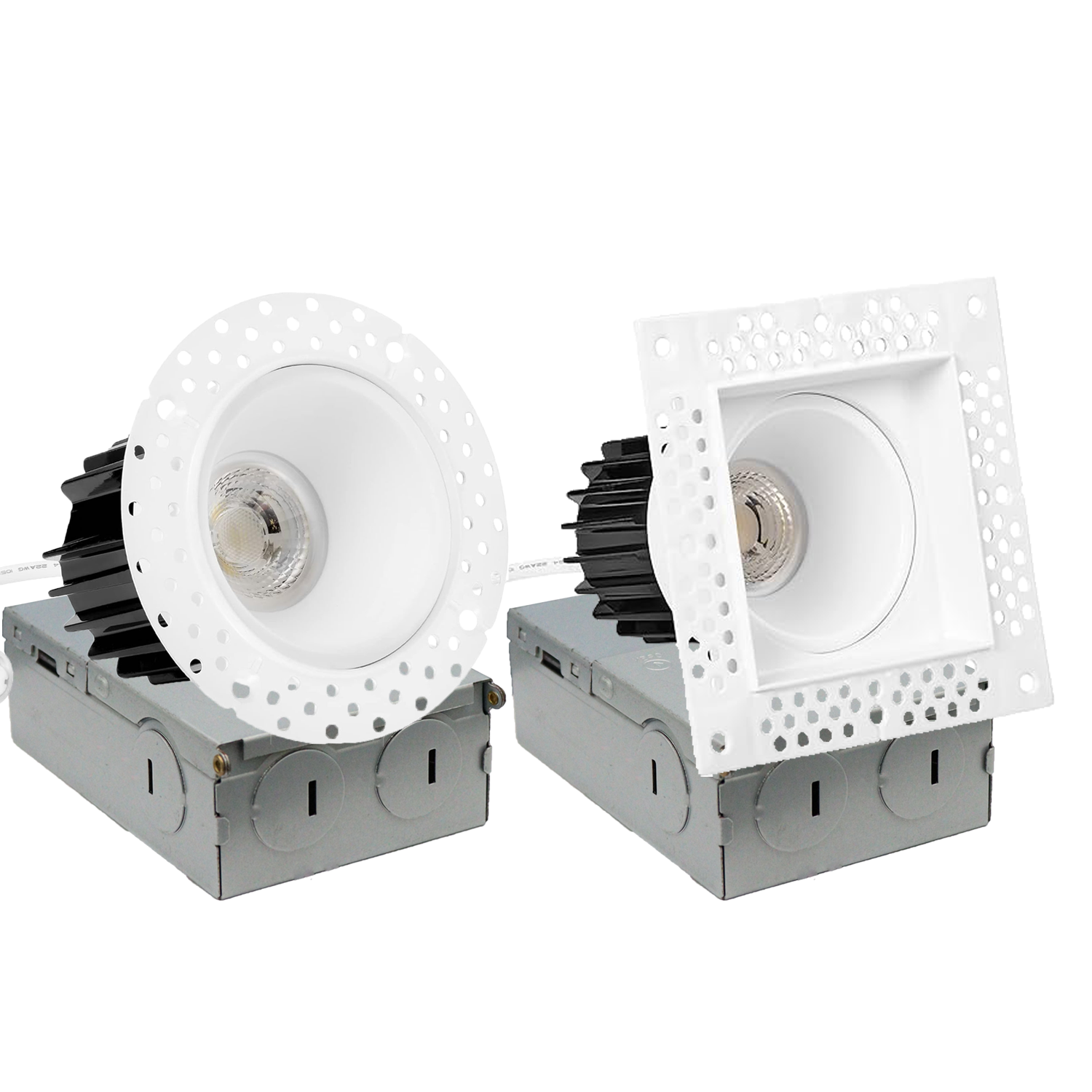

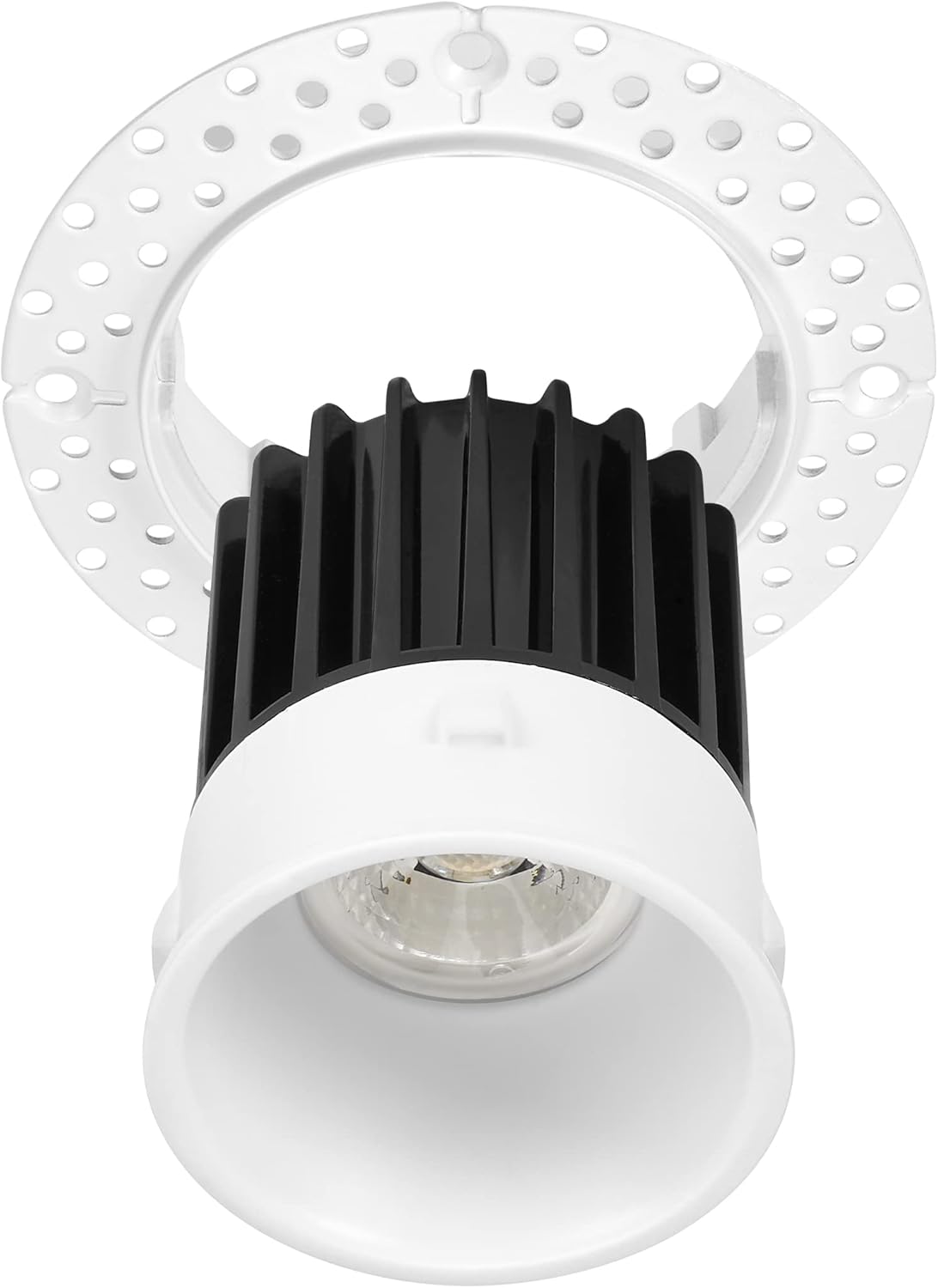

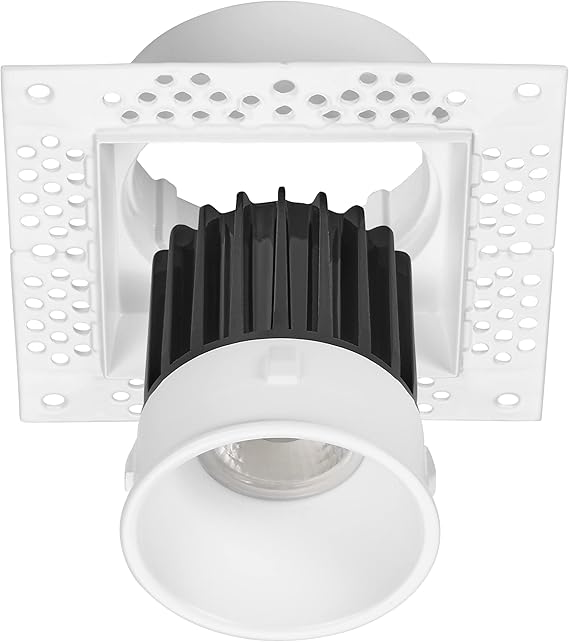

Trimless Slim Recessed Anti-Glare LED Downlight

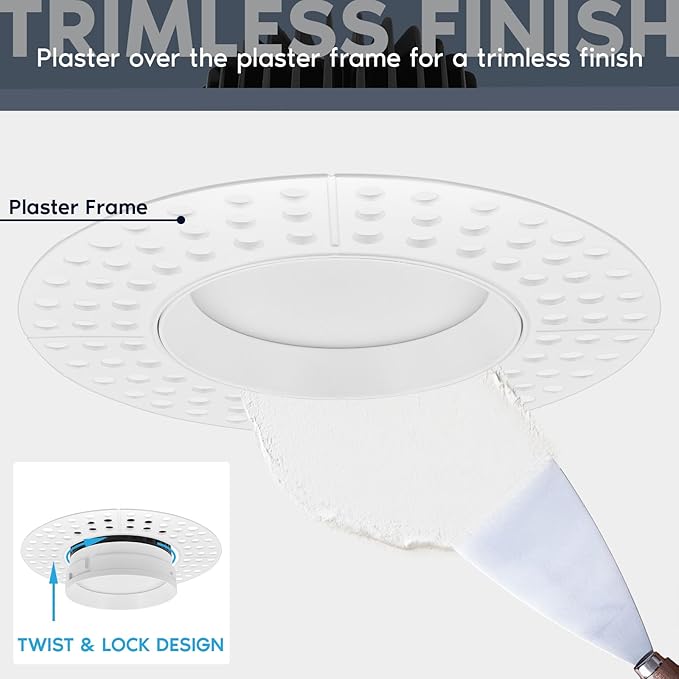

Trimless Design - Install the plaster frame into the new cutout and use screws to secure the trimless frame to sheetrock.
Plaster and paint over this frame and put the junction box through the frame and twist lock the fixture into the frame.
This gives you a clean look and feel with no trim showing on the outside of the ceiling light.
600 Lumen output anti glare square recessed lighting that provides even illumination throughout the room.
8W equivalent to 35W incandescent light.
This ultra thin downlight consumes less power than a traditional light would, allowing you to be more energy-efficient and save money.

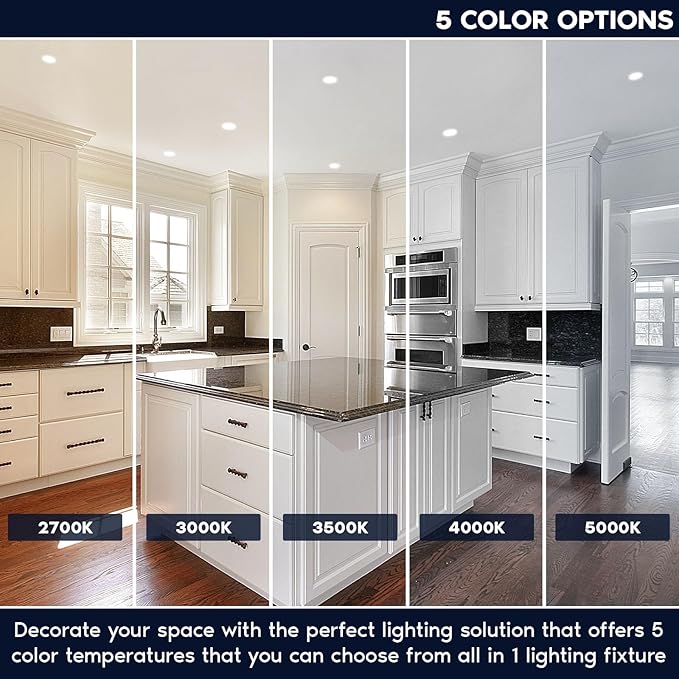

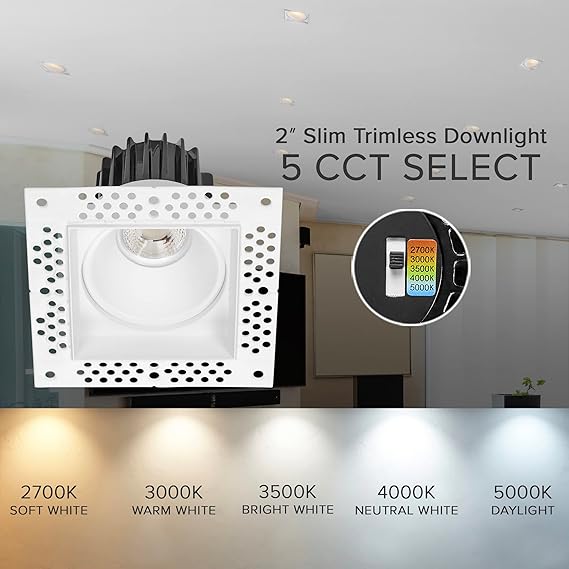

5 CCT of 2700K/3000K/3500K/4000K/5000K allows you to choose whatever light color you prefer from soft white, warm white, bright white, neutral white and daylight easily utilizing the switch on the back of the light fixture.
Dimmable range of 5% - 100%, 38° beam spread with a 90 CRI that provides the most accurate appearance of colors in the room creating a perfectly lit space with this designer downlight.
This mud in fixture is made with a cast aluminum body making it lightweight and ideal for both residential and commercial installations like homes, apartments, condos, hotels, restaurants and more.
Wet rated for use in showers or bathrooms.
The smooth baffle trimless look gives a seamless and clean appearance of a downlight with the convenience of a slim canless light fixture as it blends right into your ceiling.
Trimless Slim Recessed Anti-Glare LED Downlight
Trimless Design - Install the plaster frame into the new cutout and use screws to secure the trimless frame to sheetrock.
Plaster and paint over this frame and put the junction box through the frame and twist lock the fixture into the frame.
This gives you a clean look and feel with no trim showing on the outside of the ceiling light.
600 Lumen output anti glare square recessed lighting that provides even illumination throughout the room.
8W equivalent to 35W incandescent light.
This ultra thin downlight consumes less power than a traditional light would, allowing you to be more energy-efficient and save money.
5 CCT of 2700K/3000K/3500K/4000K/5000K allows you to choose whatever light color you prefer from soft white, warm white, bright white, neutral white and daylight easily utilizing the switch on the back of the light fixture.
Dimmable range of 5% - 100%, 38° beam spread with a 90 CRI that provides the most accurate appearance of colors in the room creating a perfectly lit space with this designer downlight.
This mud in fixture is made with a cast aluminum body making it lightweight and ideal for both residential and commercial installations like homes, apartments, condos, hotels, restaurants and more.
Wet rated for use in showers or bathrooms.
The smooth baffle trimless look gives a seamless and clean appearance of a downlight with the convenience of a slim canless light fixture as it blends right into your ceiling.
Trimless Slim Recessed Anti-Glare LED Downlight
Size: 2inch,4inch
Power: 8W,15W
Lumen:600LM,1000LM
Color Temperature (K):5cct(2700K-3000K-3500K-4000K-5000K)
Shape:Round/Square
Light Color:White
IP54 (Wet Locations)
Iput voltage:AC120
Power Factor:0.95~0.98
Operating Temperature:-40°C-40°C
Diameter:3.5inch,5.9inch
Cutout:2inch,3 3/4inch
CRI: 80+
Lifespan: 50,000 hours working time
Certificates: ETL
Warranty: 5 Years Warranty
Trimless Slim Recessed Anti-Glare LED Downlight
Size: 2inch,4inch
Power: 8W,15W
Lumen:600LM,1000LM
Color Temperature (K):5cct(2700K-3000K-3500K-4000K-5000K)
Shape:Round/Square
Light Color:White
IP54 (Wet Locations)
Iput voltage:AC120
Power Factor:0.95~0.98
Operating Temperature:-40°C-40°C
Diameter:3.5inch,5.9inch
Cutout:2inch,3 3/4inch
CRI: 80+
Lifespan: 50,000 hours working time
Certificates: ETL
Warranty: 5 Years Warranty
INSTRUCTIONS FOR PROPER ASSEMBLY
Ensure the power has been turned off by switching the circuit breaker to the off position or by removing the fuse from the fuse panel.
After marking the center point of where the fxture will be located,using the provided template cut the required hole round or square.
.Install the plaster frame into the new cutout and use four screws to secure the plaster frame to the ceiling.
Plaster over the plaster frame ensuring not to apply too much plaster to fill beyond the raised rim.
Open the junction box, remove the desired knockout and attach a twin screw clamp connector (not provided) (or similar).
Insert the supply wire through the twin screw clamp connector (not provided) (or similar).
Connect the hot (black) wire to the black wire, the neutral (white) wire to the white wire and the ground (green/bare copper) wire to the green wire using the provided wire nuts.
Put all of the wires into the metal junction box and close the junction box.
Using the selector switch on the back of the fxture,the CCT can be changed to any of the ve settings (CCT settings are 2700K/3000K/3500K/4000K/5000K)
Connect the male output connector from the junction box with the female connector from the xture and tighten the locking nut.
Insert the junction box into the plaster frame, ensuring the junction box is laying on the ceiling material. Then align the locking tabs on the side of the xture such that the xture can be inserted then turn the fxture until the fxture is locked into the plaster frame.
Installation is now complete, restore power and the fxture is now operational.
Remarks:Our twist-lock design allows you to easily replace the lighting components if needed in the future. You can simply push up and twist the head counter clockwise and remove it without opening up your ceiling or damaging the sheetrock.
INSTRUCTIONS FOR PROPER ASSEMBLY
Ensure the power has been turned off by switching the circuit breaker to the off position or by removing the fuse from the fuse panel.
After marking the center point of where the fxture will be located,using the provided template cut the required hole round or square.
.Install the plaster frame into the new cutout and use four screws to secure the plaster frame to the ceiling.
Plaster over the plaster frame ensuring not to apply too much plaster to fill beyond the raised rim.
Open the junction box, remove the desired knockout and attach a twin screw clamp connector (not provided) (or similar).
Insert the supply wire through the twin screw clamp connector (not provided) (or similar).
Connect the hot (black) wire to the black wire, the neutral (white) wire to the white wire and the ground (green/bare copper) wire to the green wire using the provided wire nuts.
Put all of the wires into the metal junction box and close the junction box.
Using the selector switch on the back of the fxture,the CCT can be changed to any of the ve settings (CCT settings are 2700K/3000K/3500K/4000K/5000K)
Connect the male output connector from the junction box with the female connector from the xture and tighten the locking nut.
Insert the junction box into the plaster frame, ensuring the junction box is laying on the ceiling material. Then align the locking tabs on the side of the xture such that the xture can be inserted then turn the fxture until the fxture is locked into the plaster frame.
Installation is now complete, restore power and the fxture is now operational.
Remarks:Our twist-lock design allows you to easily replace the lighting components if needed in the future. You can simply push up and twist the head counter clockwise and remove it without opening up your ceiling or damaging the sheetrock.
