YG044-S-3C-WL-SD
Youth Green

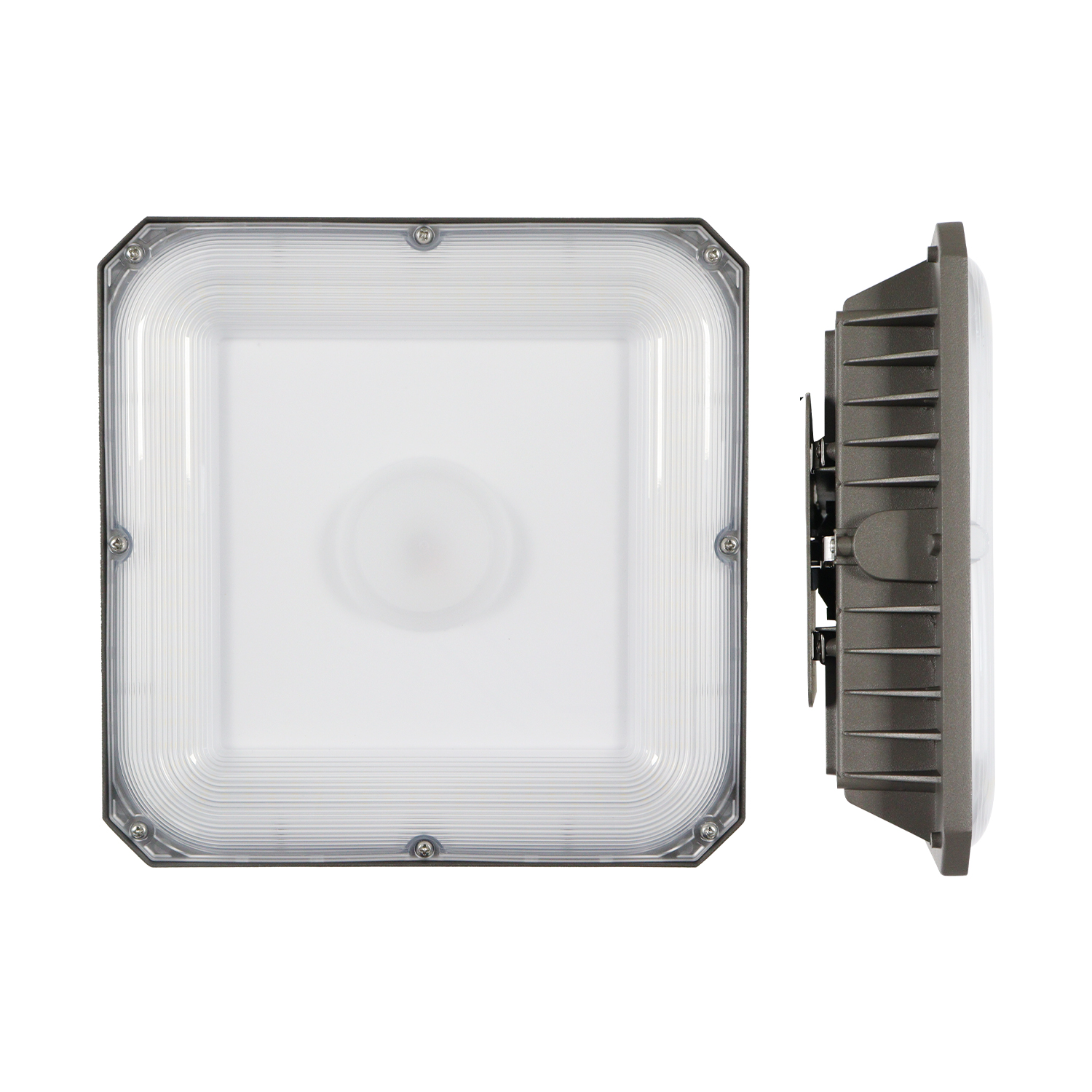

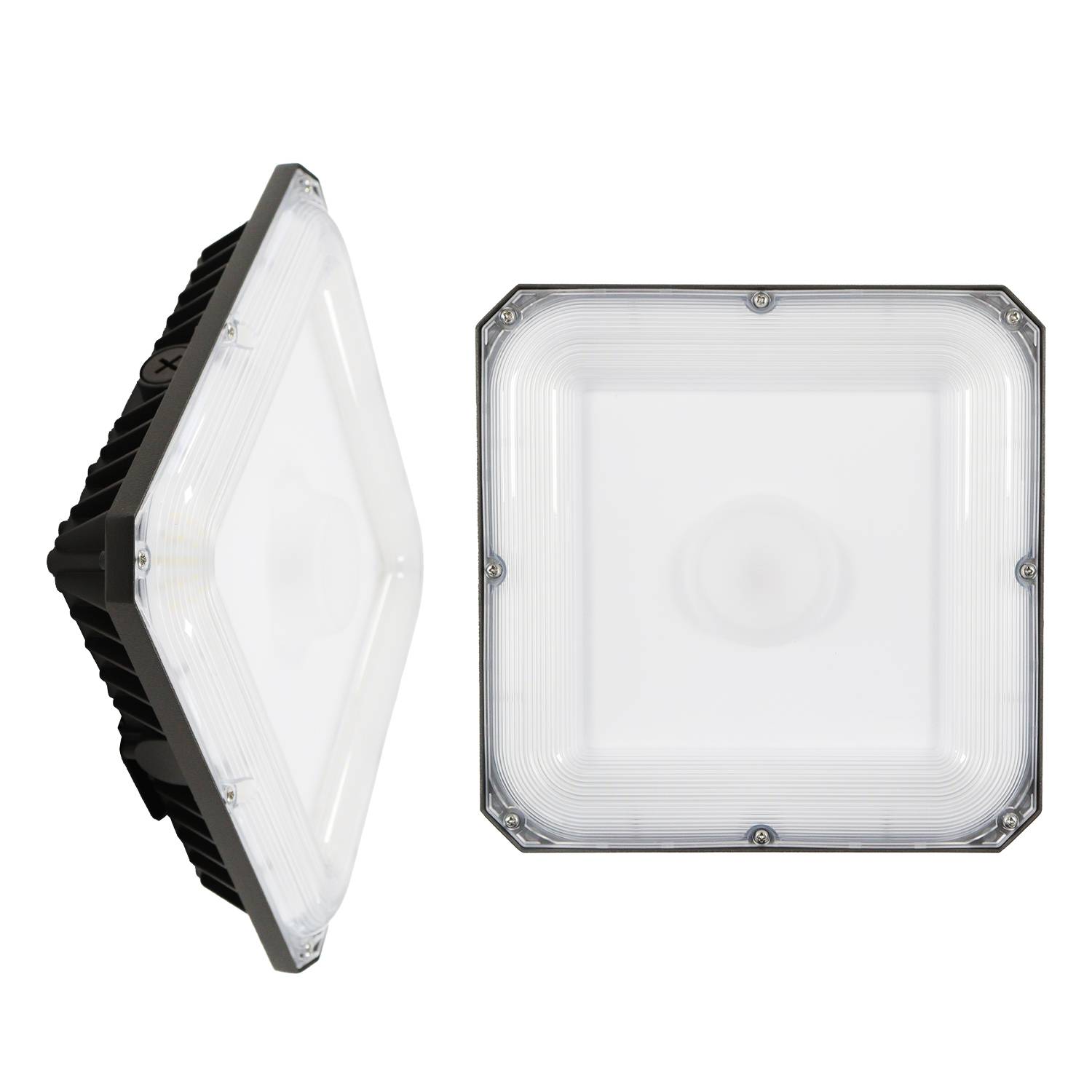

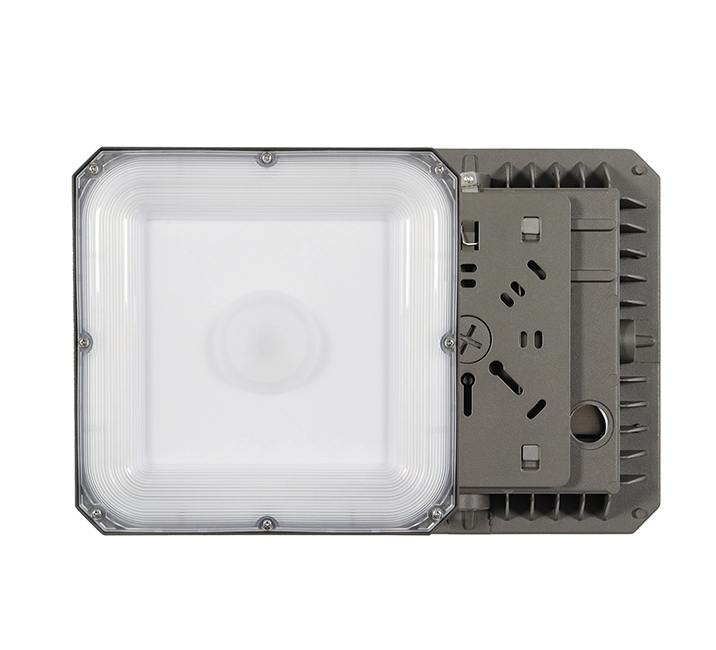

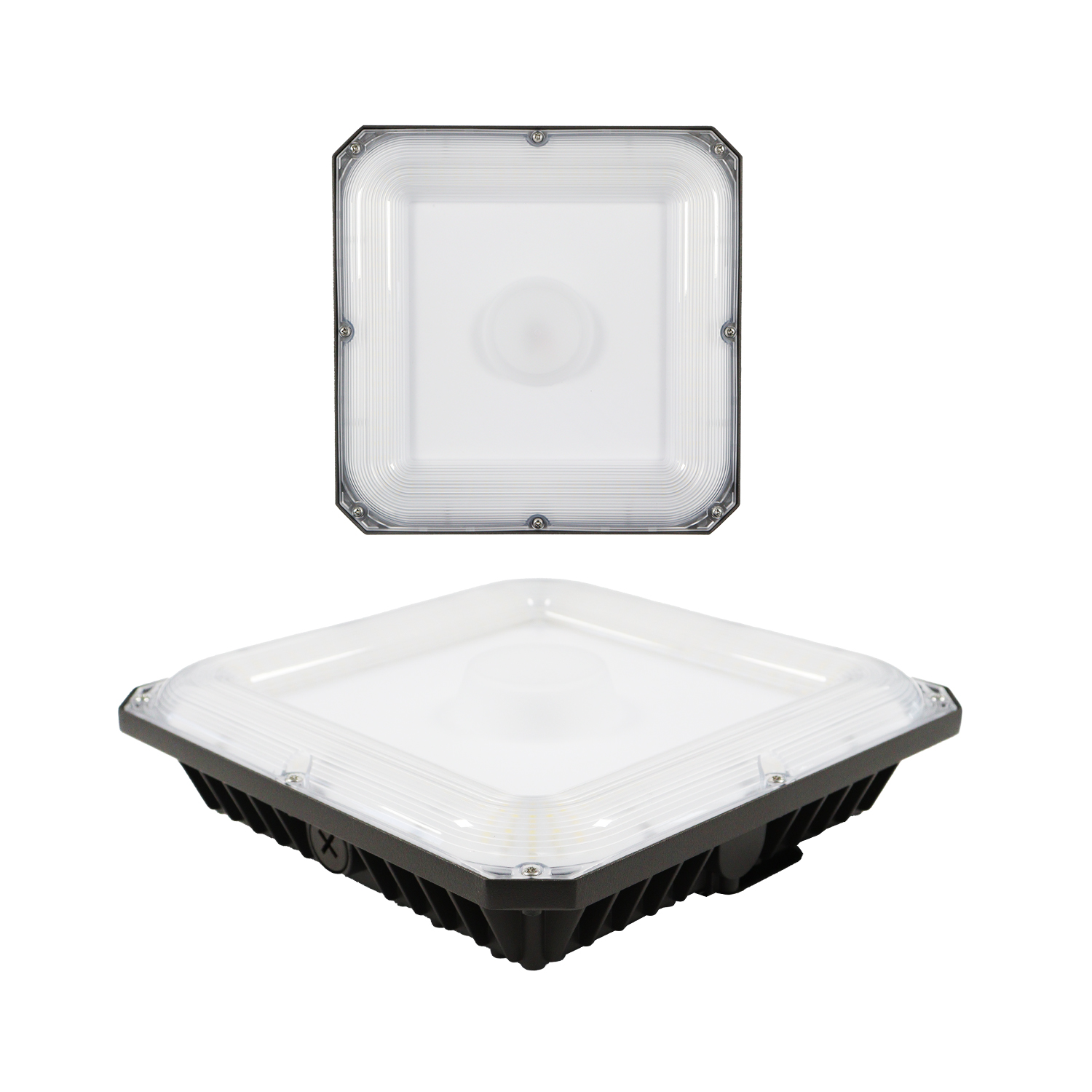

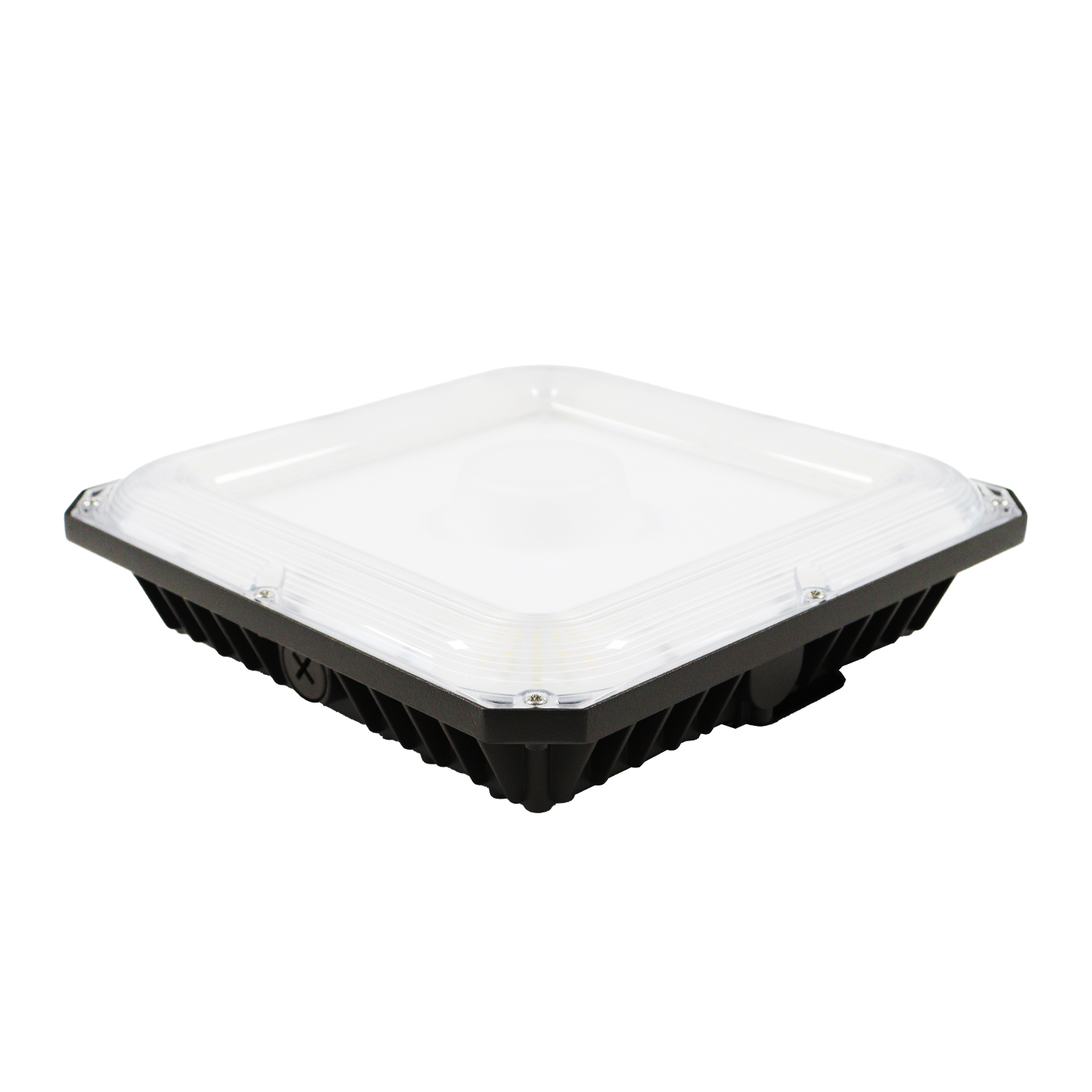

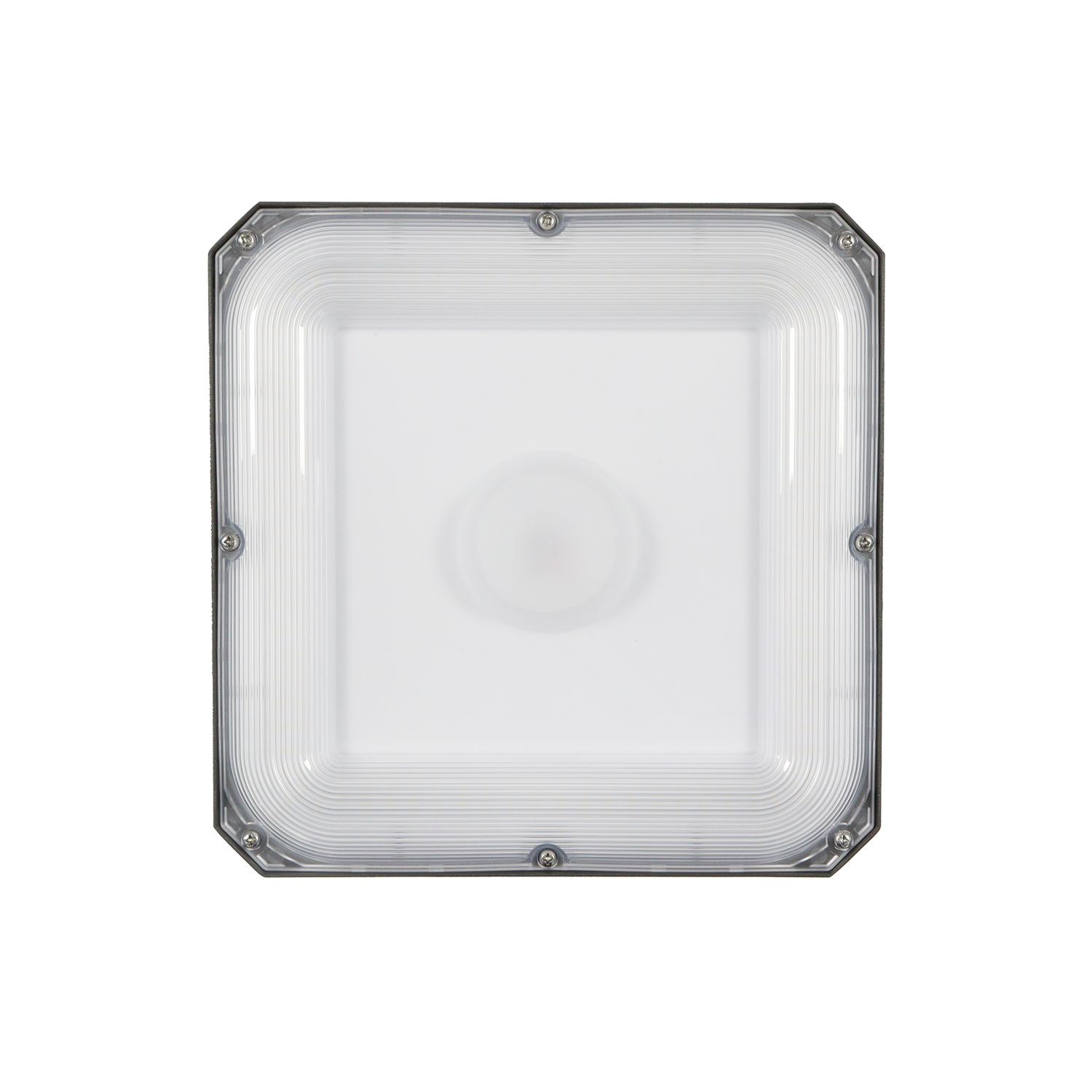

130LM/W 80W 100W IP65 LED Garage & Canopy Light
Available in 3000K-6500K warm white to cool white color temperature
Sealed aluminum die-cast housing for excellent heat expenditure and better waterproofing
Boasts a corrosion-resistant powder coating for protection and an architectural finish that can blend well with garage environment
Easy installation using the included junction box or pendant with 3/4" conduit (conduit not included)
IP65 Waterproof
0-10V dimmable
50,000 lifetime hours
5-year manufacturer's warranty
130LM/W 80W 100W IP65 LED Garage & Canopy Light
Available in 3000K-6500K warm white to cool white color temperature
Sealed aluminum die-cast housing for excellent heat expenditure and better waterproofing
Boasts a corrosion-resistant powder coating for protection and an architectural finish that can blend well with garage environment
Easy installation using the included junction box or pendant with 3/4" conduit (conduit not included)
IP65 Waterproof
0-10V dimmable
50,000 lifetime hours
5-year manufacturer's warranty
LED Garage & Canopy Light
Power(Wattage): 80W/100W
Luminous Efficacy: 130LM/W
Input Voltage: AC120-347V
Frequency Range: 50Hz/60HZ
Color Temperature: 3000K/4000K/5000K/6500K
Shape: Square
Total Harmonic Distortion: ≤20%
Power Factor: 95%
LED Working Voltage: DC180-260V
LED Chips: SMD3030 1W High Brightness LED
Lamp's Efficiency: >90%
lluminance Uniformity: >0.8.
Color Rendering Index: Ra>80
Light Distribution: Symmetrical I Circular Spot
Light Design: ADC12 + PC Lens
LED Junction Temperature: ≤90C
Working Temperature: -40C-+50C
Storage Temperature: -25C-+65 C
Working Life span: > 50,000H
LED Garage & Canopy Light
Power(Wattage): 80W/100W
Luminous Efficacy: 130LM/W
Input Voltage: AC120-347V
Frequency Range: 50Hz/60HZ
Color Temperature: 3000K/4000K/5000K/6500K
Shape: Square
Total Harmonic Distortion: ≤20%
Power Factor: 95%
LED Working Voltage: DC180-260V
LED Chips: SMD3030 1W High Brightness LED
Lamp's Efficiency: >90%
lluminance Uniformity: >0.8.
Color Rendering Index: Ra>80
Light Distribution: Symmetrical I Circular Spot
Light Design: ADC12 + PC Lens
LED Junction Temperature: ≤90C
Working Temperature: -40C-+50C
Storage Temperature: -25C-+65 C
Working Life span: > 50,000H

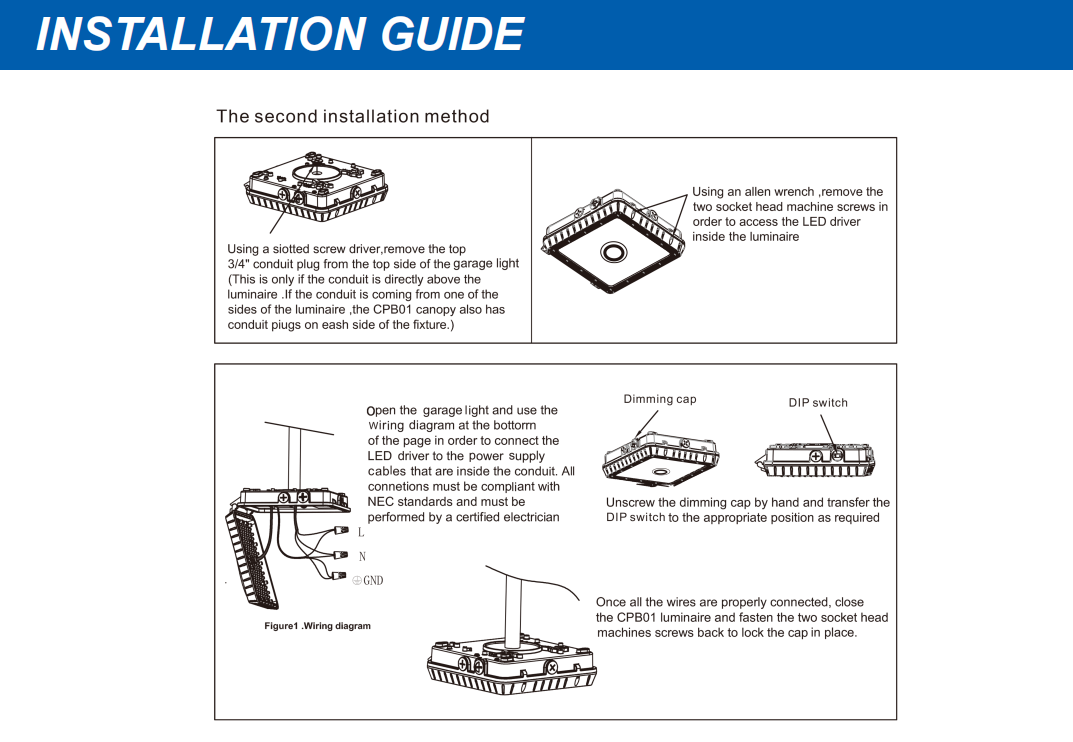

Two types of installation:
Mode 1：
Using a siotted screw driver,remove the top 3/4" conduit plug from the top side of the garage light (This is only if the conduit is directly above the luminaire .If the conduit is coming from one of the sides of the luminaire ,the CPB01 canopy also has conduit plugs on eash side of the fixture.)
Using an allen wrench ,remove the two socket head machine screws in order to access the LED driver inside the luminaire.
Mode 2:
Open the garage light and use the wiring diagram at the bottorrn of the page in order to connect the LED driver to the power supply cables that are inside the conduit. All connetions must be compliant with NEC standards and must be performed by a certified electrician.
Unscrew the dimming cap by hand and transfer the DIP switch to the appropriate position as required.
Once all the wires are properly connected, close the CPB01 luminaire and fasten the two socket head machines screws back to lock the cap in place.
