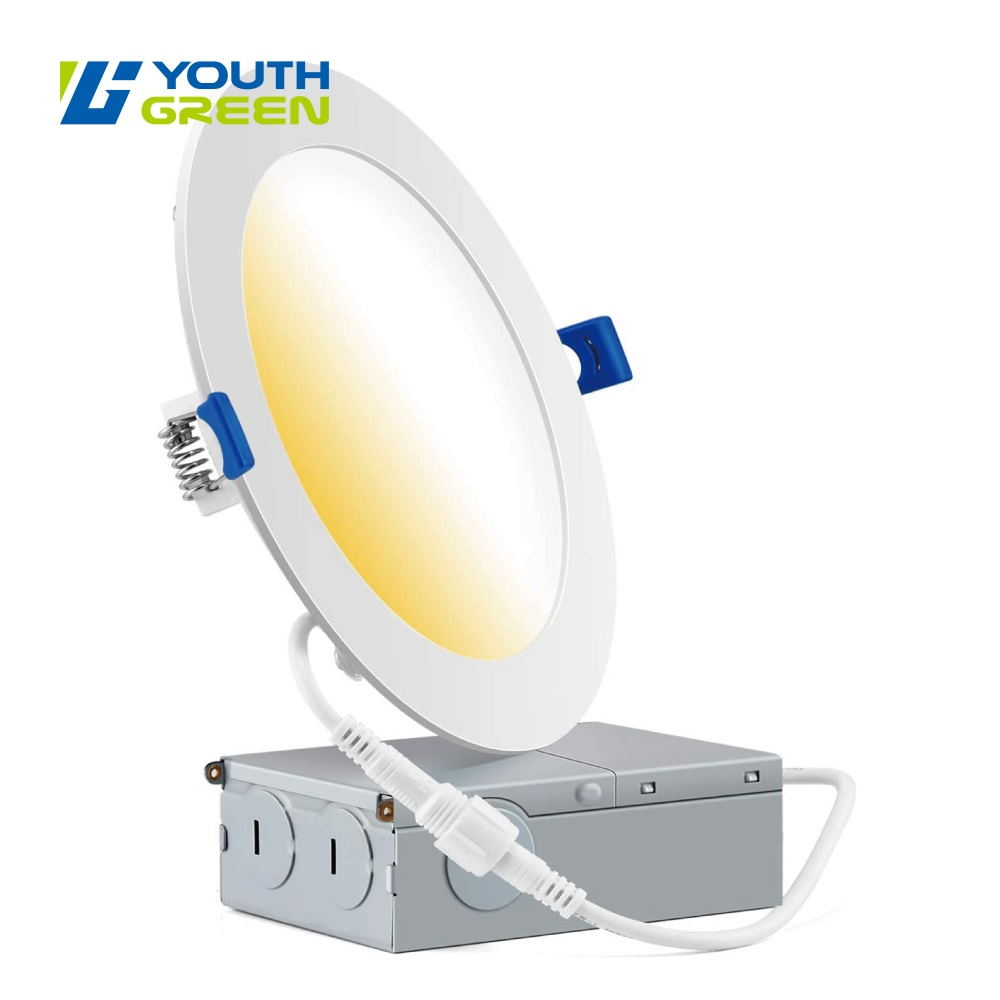

6Inch Single Color/3CCT/5CCT LED Recessed Slim Panel Light 12W

YG012F12-R-3C-WL
ETL/ES/FCC/5 YEARS WARRANTY
Availability:
Quantity:
  • YG012F12-R-3C-WL

  • YOUTH GREEN

6Inch Single Color/3CCT/5CCT LED Slim Panel Light

  • Patented Mold Design YG012

  • Sing Color/3CCT/5CCT Optional

  • IP54 Suit For Wet Locations

  • High Brightness: 6Inch 12W 1300LM

  • Recessed type with Junction box, All -in-one design, easier and tool-less installation design, no need installation CANS

  • AC120V triac dimmable, with flicker-free, and best working effect with Lutron and Leviton dimmers

  • Compatible with most LED dimmers, brightness can be adjusted from 5% to 100%

  • ETL/ES/FCCListed & 5 Years Warranty



SPECIFICATIONS

Item number

YG012

Cut Hole

6"

Type IC

YES

Shape

Round/Square

Approved Locations

WET Locations

Air Tight

YES

Finish

White/Black/Brush Nickel

PHOTOMETRIC

Color (CCT)

3CCT(3000K-4000K-5000K All in one)

Lumen

1300LM

CRI

>80



ELECTRICAL

Power(Wattage)

12W

Input Volts

AC120V

Rated Lifetime

50,000hrs

Dimmable

Triac Dimming

Power Factor

0.97

IP Range

IP54

Frequency

60HZ

Lumen Efficacy

108LM/W

Operating Temp:

-40 ~40

Driver Type

Class II

Warranty

5 Years
