CCT & Power Tunable LED Wall Light

ETL/ES/RoHS/5 Year Warranty
Size:
Power:
Color Temperature:
Certificates:
Availability:
Quantity:
  • YG-WL002

  • YOUTH GREEN

CCT & Power Tunable LED Wall Light


  • Appearance design: milky white lampshade, plus outer frame, overall fashionable atmosphere, adapt to the current market demand, practicality.

  • Exquisite craftsmanship and smooth lines can be perfectly integrated into a variety of decorative styles.

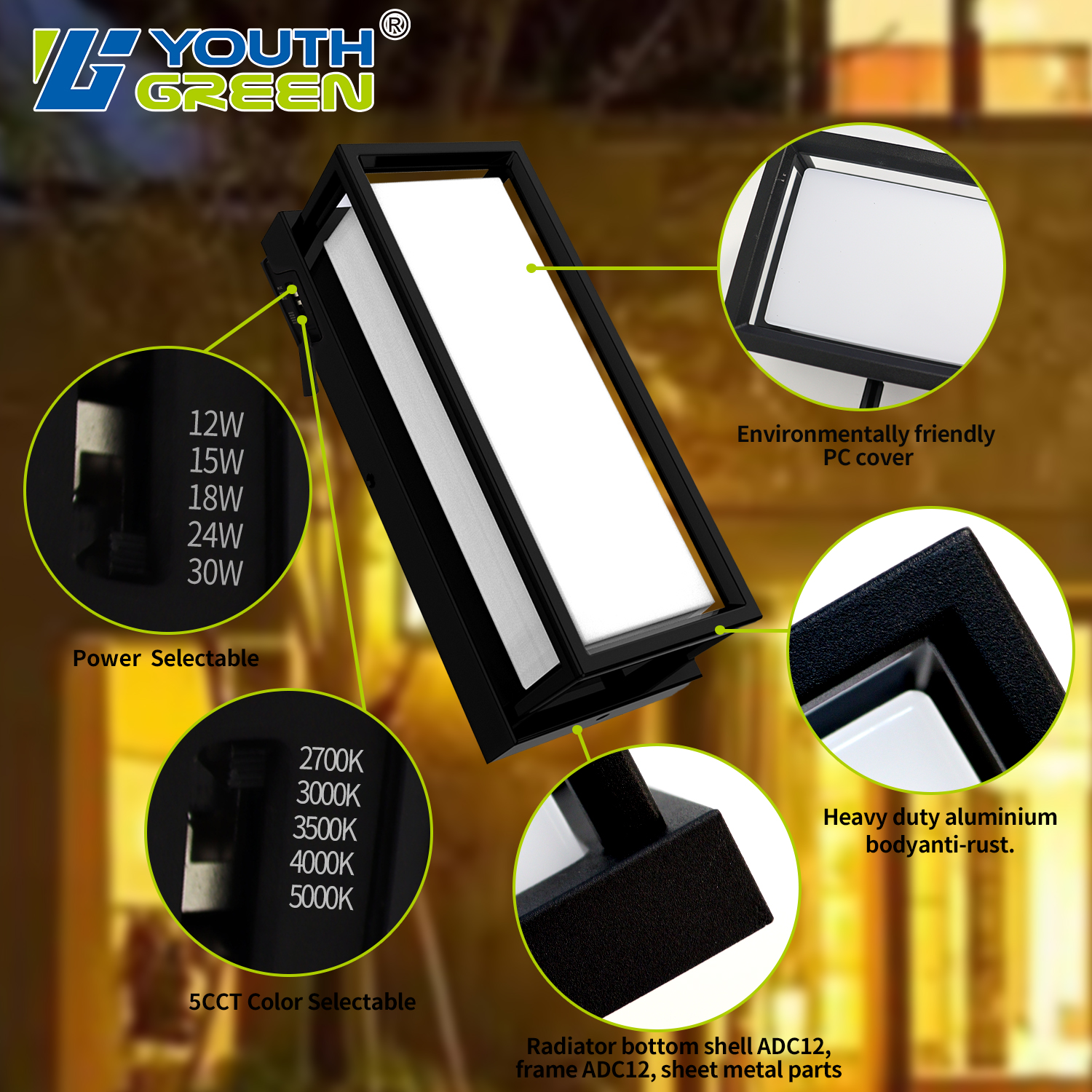

  • Material Selection: Made of high quality metal, sturdy and durable, with good0 heat dissipation performance to ensure the stable operation of the LED lights.

  • Installation: simple installation, wall mounting, adapting to different installation environments.

  • High brightness and energy saving: compared with traditional wall lamps, 12 inch double adjustable wall lamp, 12W is equivalent to the traditional lamps 85W incandescent lamps.15W is equivalent to the traditional 135W incandescent lamps, 20W is equivalent to the traditional lamps 150W incandescent lamps, 30W is equivalent to the traditional lamps 150W incandescent lamps

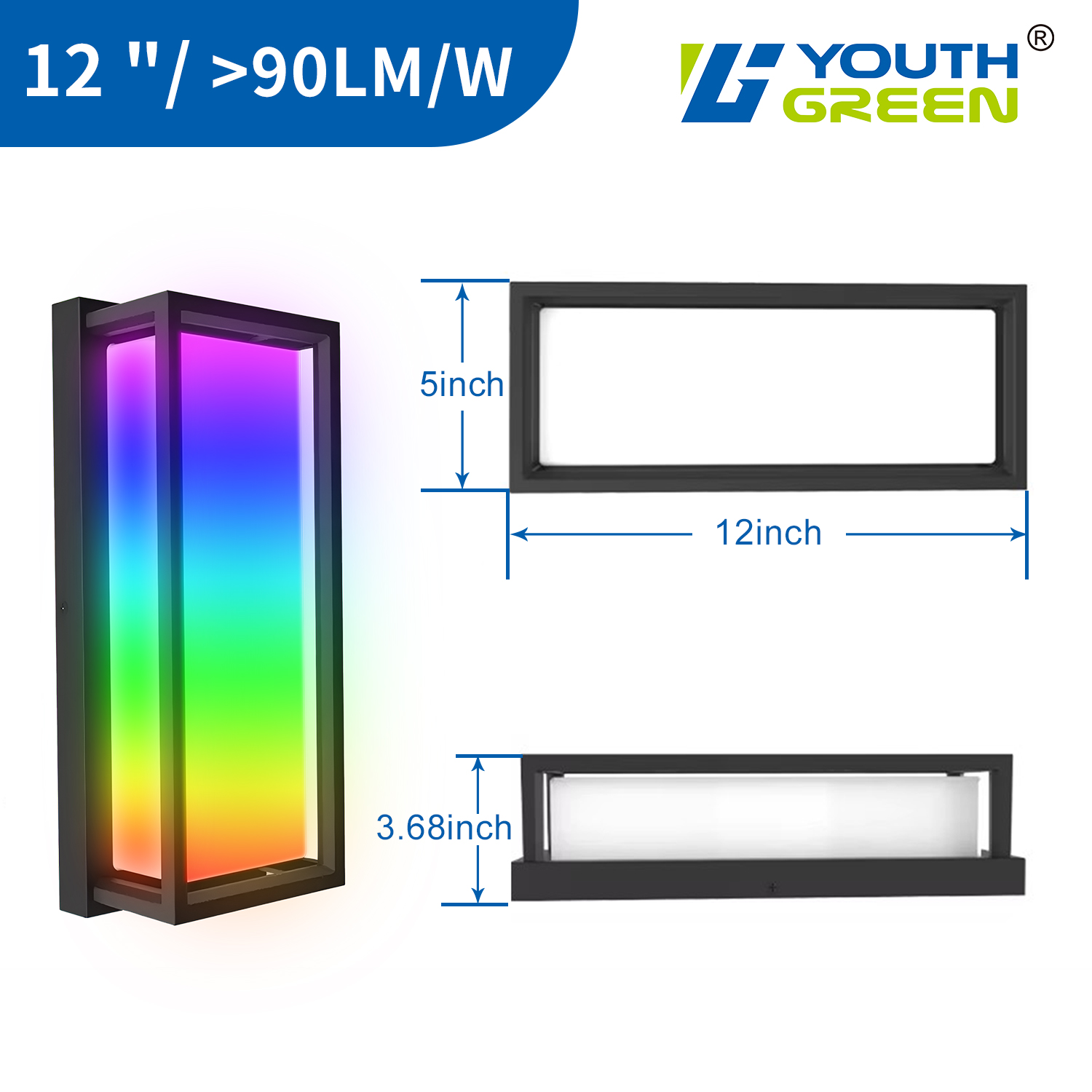

  • LONG LIFE: The 12’ double adjustable wall sconce has a longer life span, typically up to 50,000 hours, reducing the frequency of lamp replacement and maintenance costs.

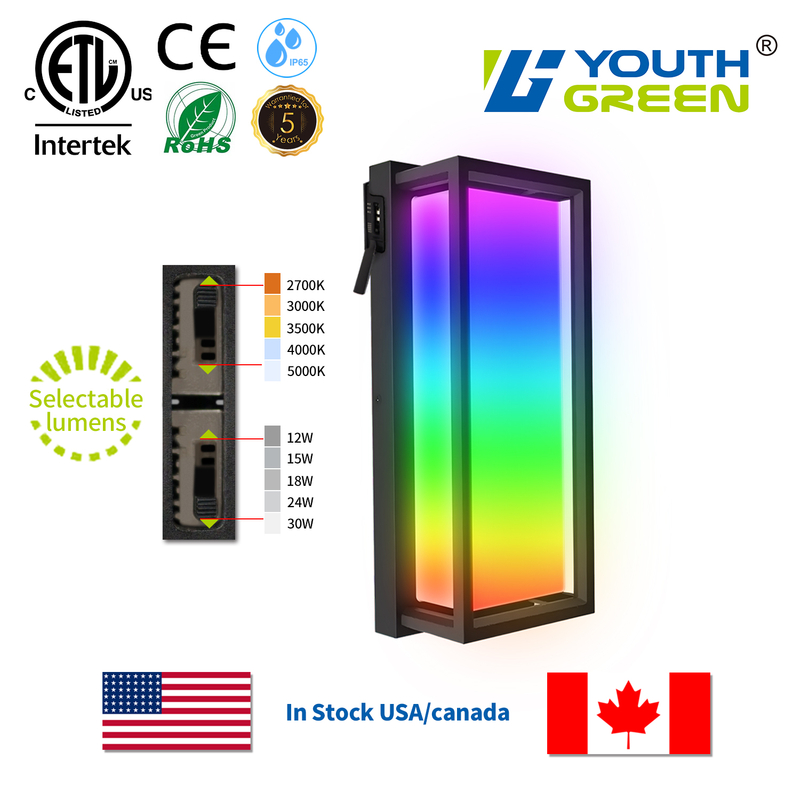

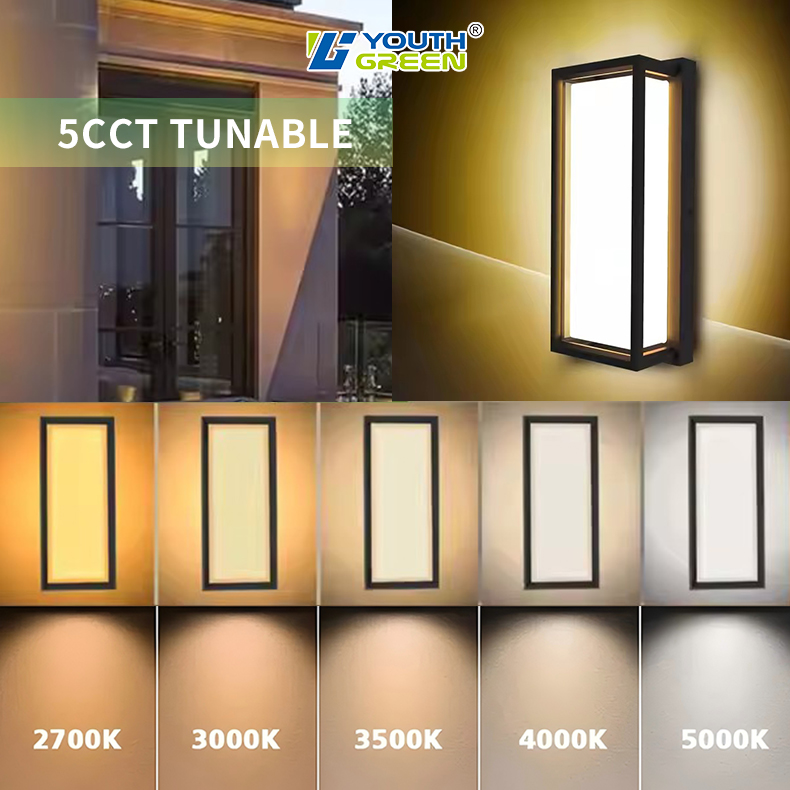

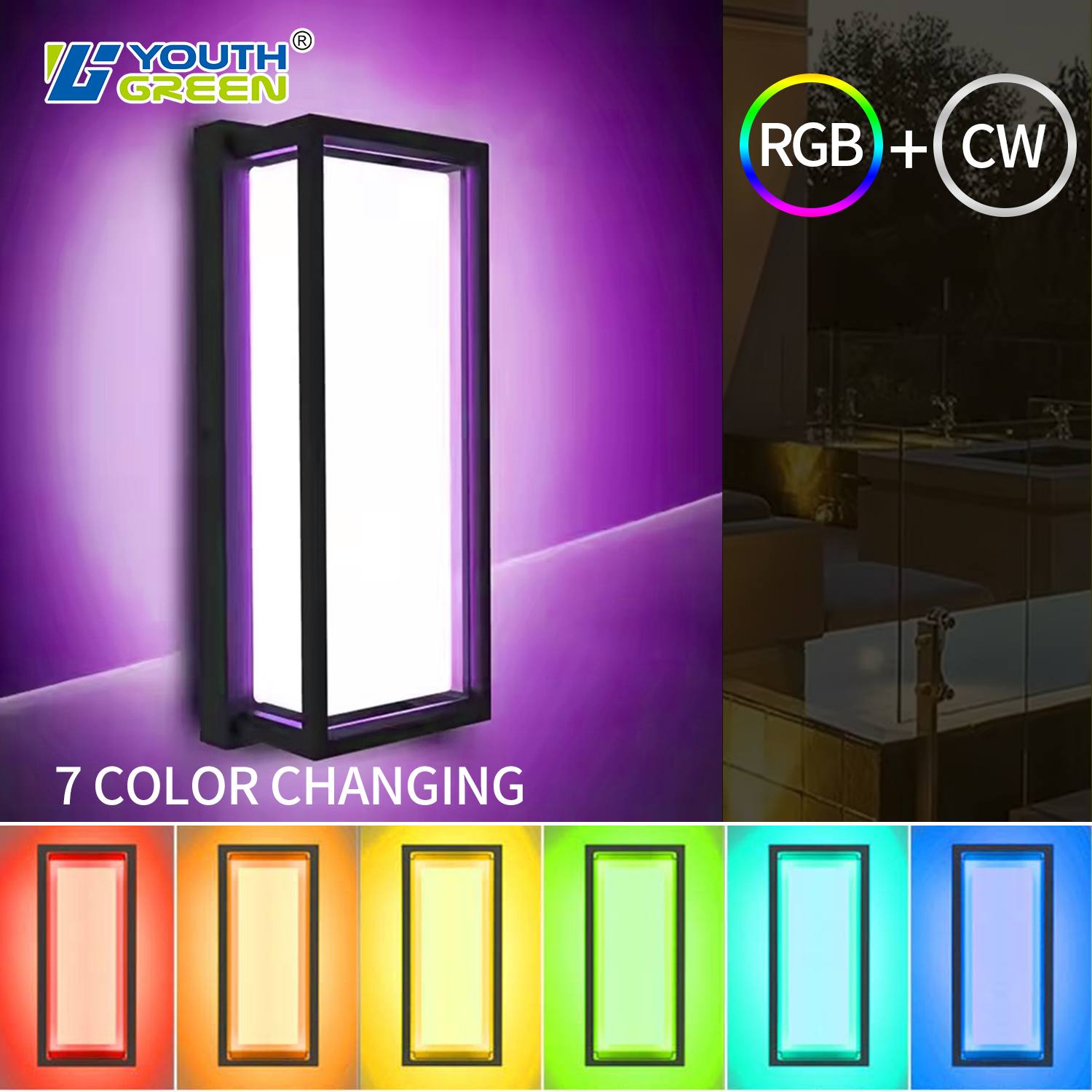

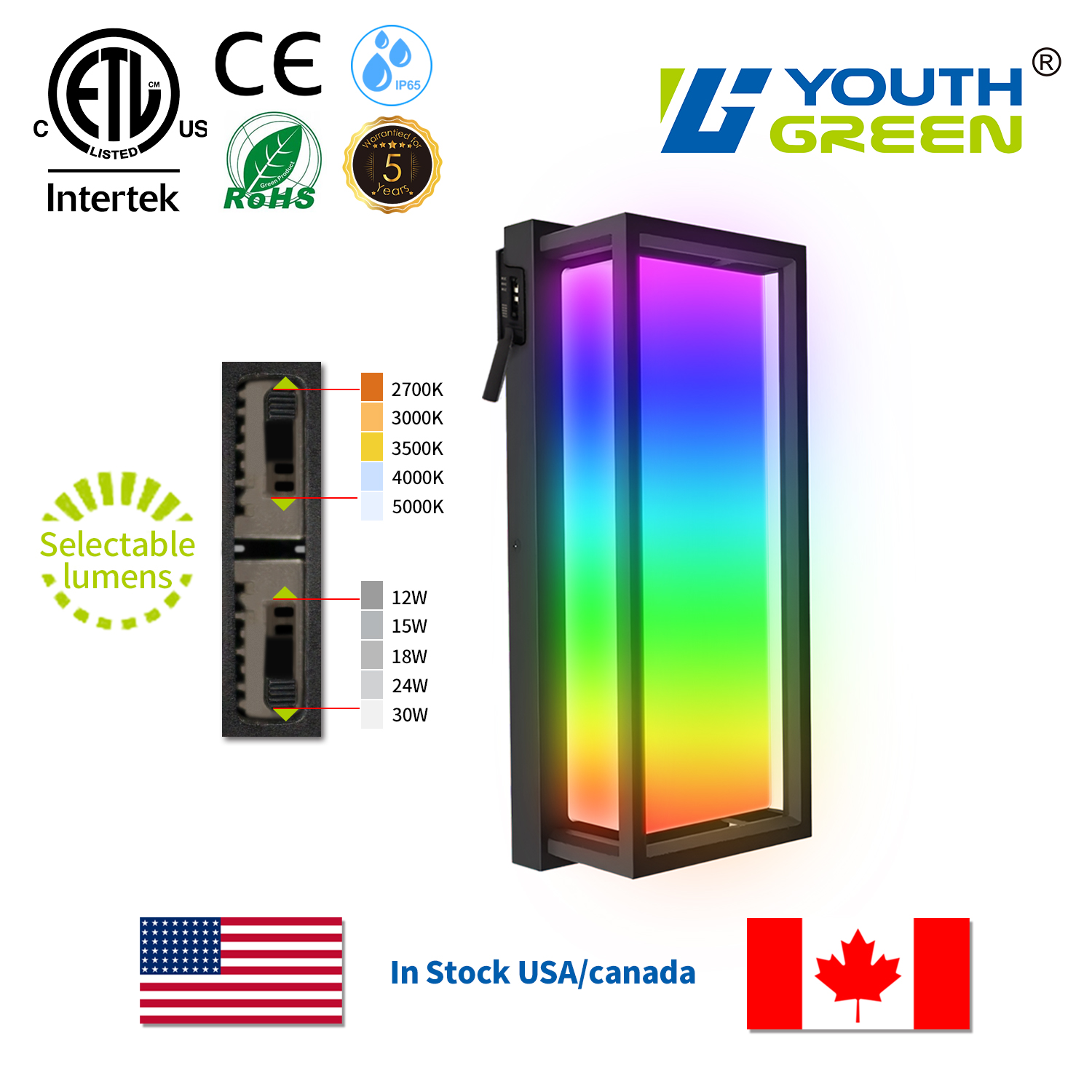

  • Adjustable colour temperature: 5CCT colour temperature adjustable (2700K-3000K-3500K-4000K-5000K) or RGBCW, with its own light sensing function, it can automatically sense switching on and off according to the sunlight intensity.

CCT & Power Tunable LED Wall Light


  • Power:12W-15 W-18W,20W-24 W-30W,12W-15W-18W-24 W-30W

  • CCT:5CCT (2700K-3000K-3500K-4000K-5000K)+Photocell/RGBCW(OPTIONAL)

  • Input Voltage Range(V):120V-277V/120V

  • Electric Shock Protection Class:CLASS 1类

  • Ik Rating :IK08

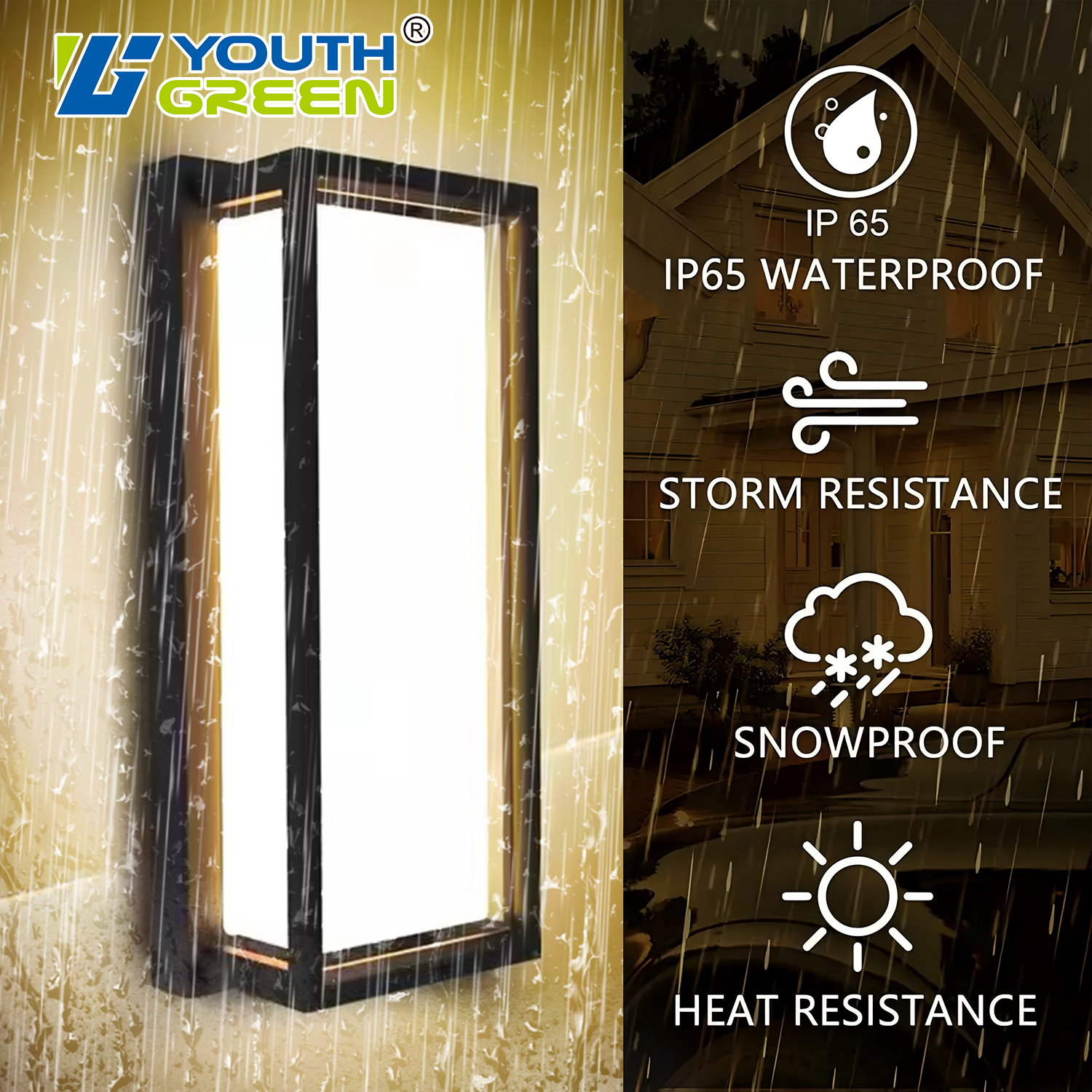

  • IP Rating :IP65

  •  Power Factor PF:> 0.9

  • Color Tolerance Range:< 5 STEP

  • CRI:> 80

  • Beam Angles:120°

  • Efficacy Range:>80LM/W

INSTRUCTIONS FOR PROPER ASSEMBLY


WARNING:Turn power off from electrical panel before installation or maintenance


  • Take off the mounting bracket from the light fixture.

  • Attached the mounting bracket to the J-box/wall by 2 screws.

  • Use push in wire connectors to connect the wires.

  • Select your ideal CCT through the CCT switch

  • Fix the light fixture to the mounting bracket by 2 screws on the side.

  • Installation is done
