UP and Down Outdoor LED Wall Light

YGWL-20W4-28DML
ETL / FCC / 5 Year Warranty
Size:
Power:
Shape:
Color Temperature:
Certification:
Availability:
Quantity:
  • YGWL-20W4-28DML

  • YOUTH GREEN

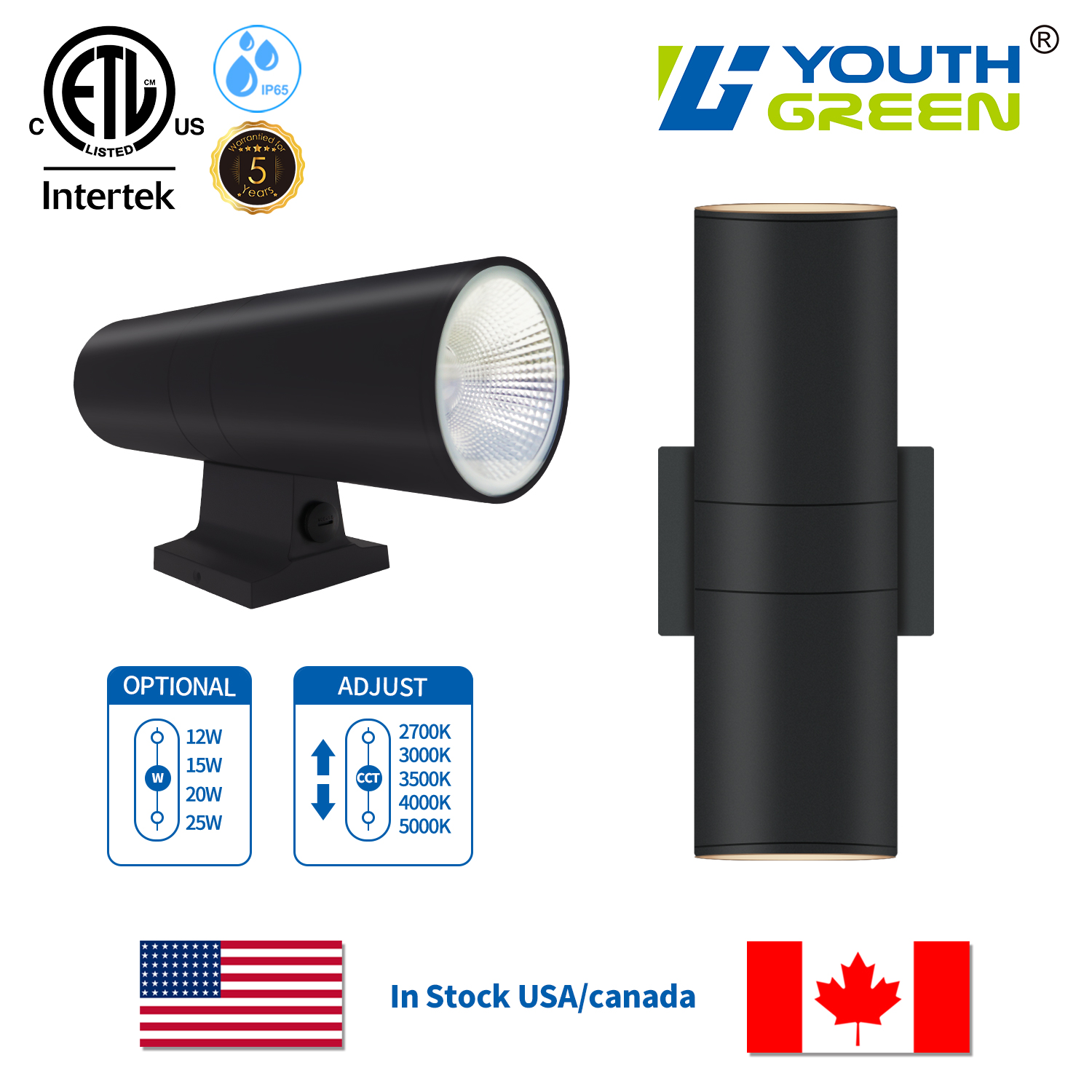

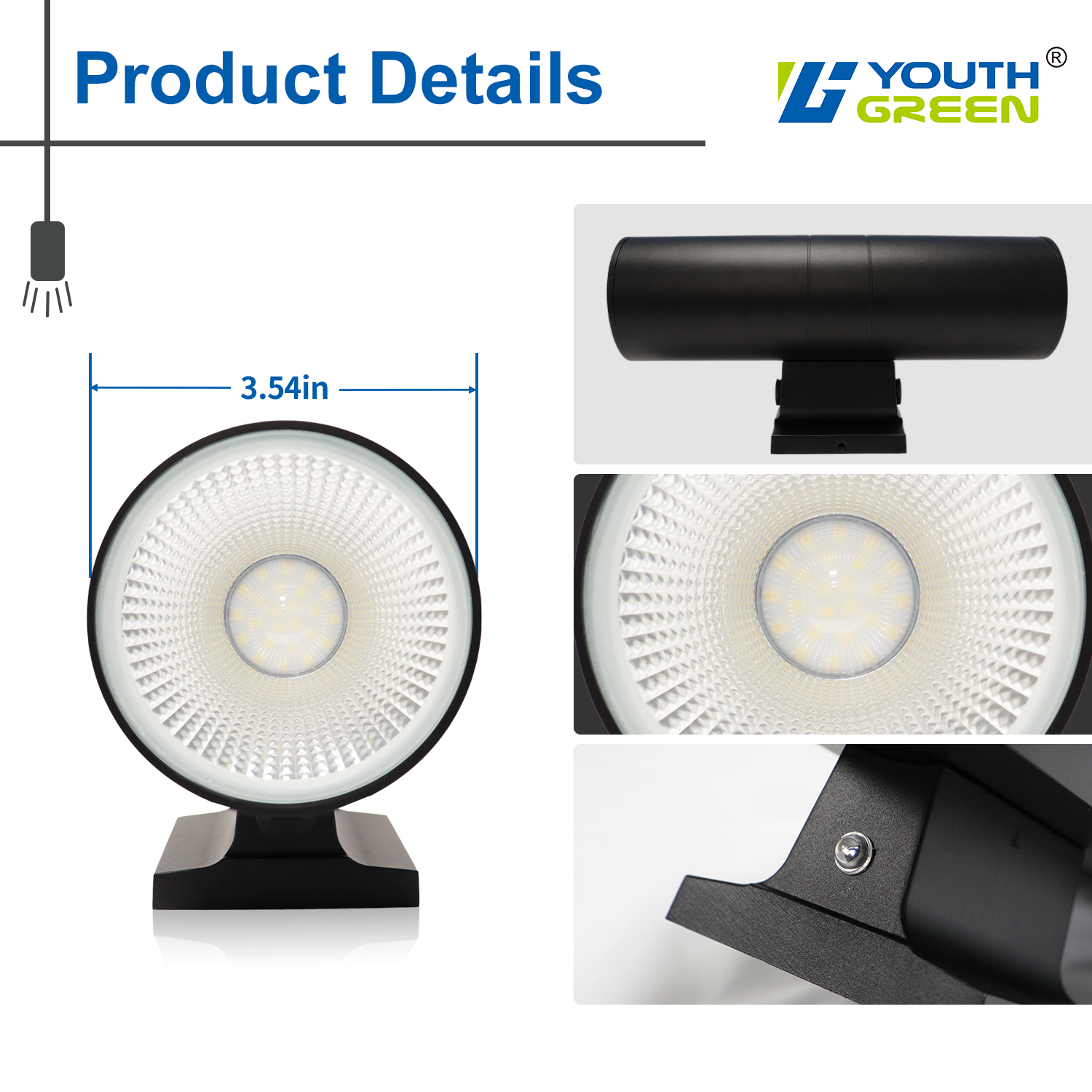

UP and Down Outdoor LED Wall Light


  • Geometric square and round appearance design,simple modern style

  • Colour options, white, black, and a variety of retro colours to order and so on

  • Exquisite craftsmanship and smooth lines, can be perfectly integrated into various decoration styles

  • Made of high quality metal, sturdy and durable

  • At the same time has good heat dissipation performance to ensure the stable operation of the LED light

  • The lampshade can be made of frosted glass or transparent glass to create different light effects

  • Compared with traditional wall lamps, LED wall lamps can be high brightness output at the same time, lower energy consumption, more energy efficient

  • 12W is equivalent to the traditional lamps 85W incandescent lamps

  • 15W is equivalent to the traditional 135W incandescent lamps

  • 20W is equivalent to the traditional lamps 150W incandescent lamps

  • 25W is equivalent to the traditional lamps 150W

  • LED wall lamps with a longer life expectancy, generally up to 50,000 hours

  • The LED wall light has a longer lifespan, typically up to 50,000 hours, which reduces the frequency of lamp replacement and maintenance costs

  • 5CCT colour temperature adjustable (2700K-3000K-3500K-4000K-5000K)

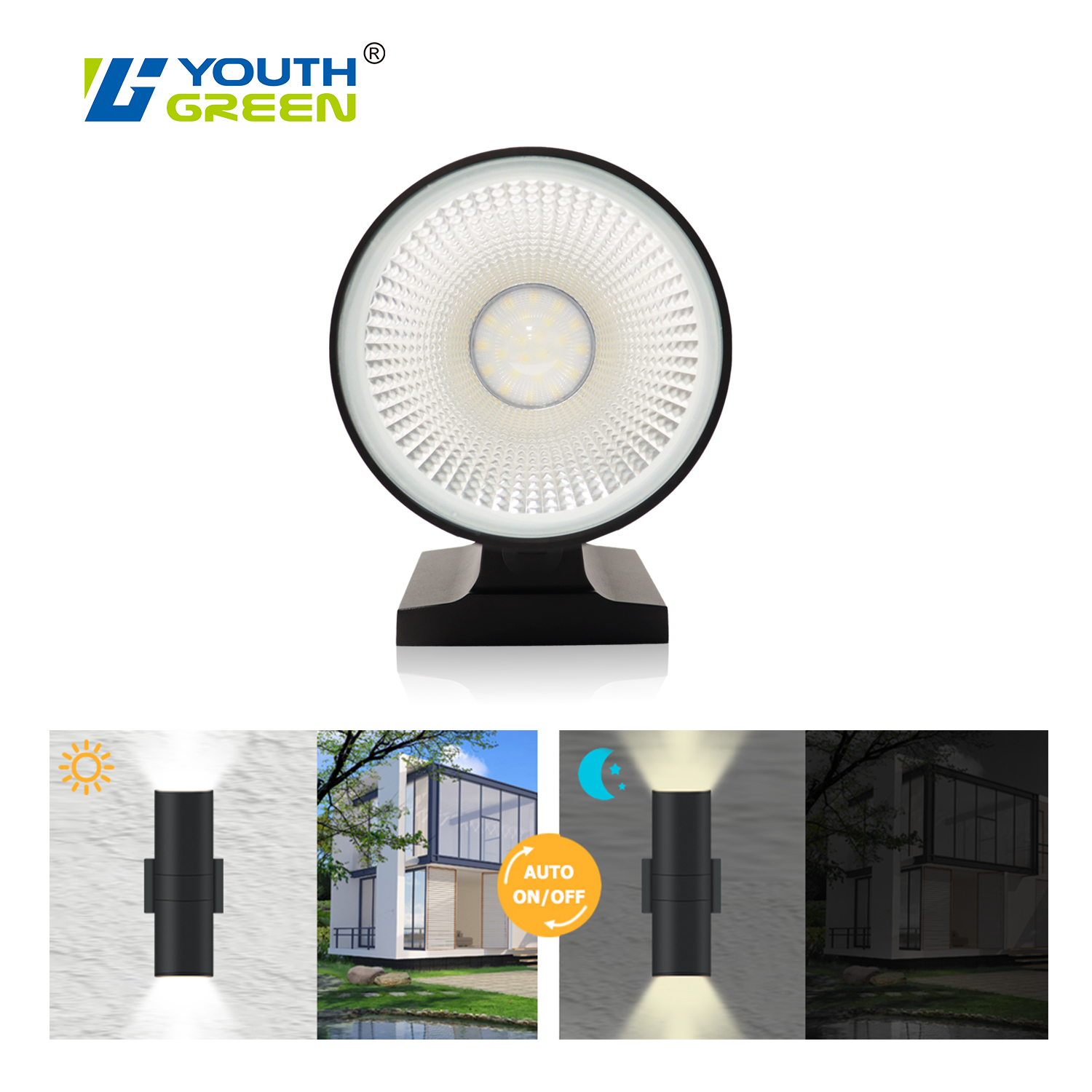

  • Comes with a light sensor function, according to the intensity of sunlight automatically sense switch on and off. No need for customers to manually switch the operation, convenient, intelligent and fast

  • Easy to install, wall-mounted, adapting to different installation environments

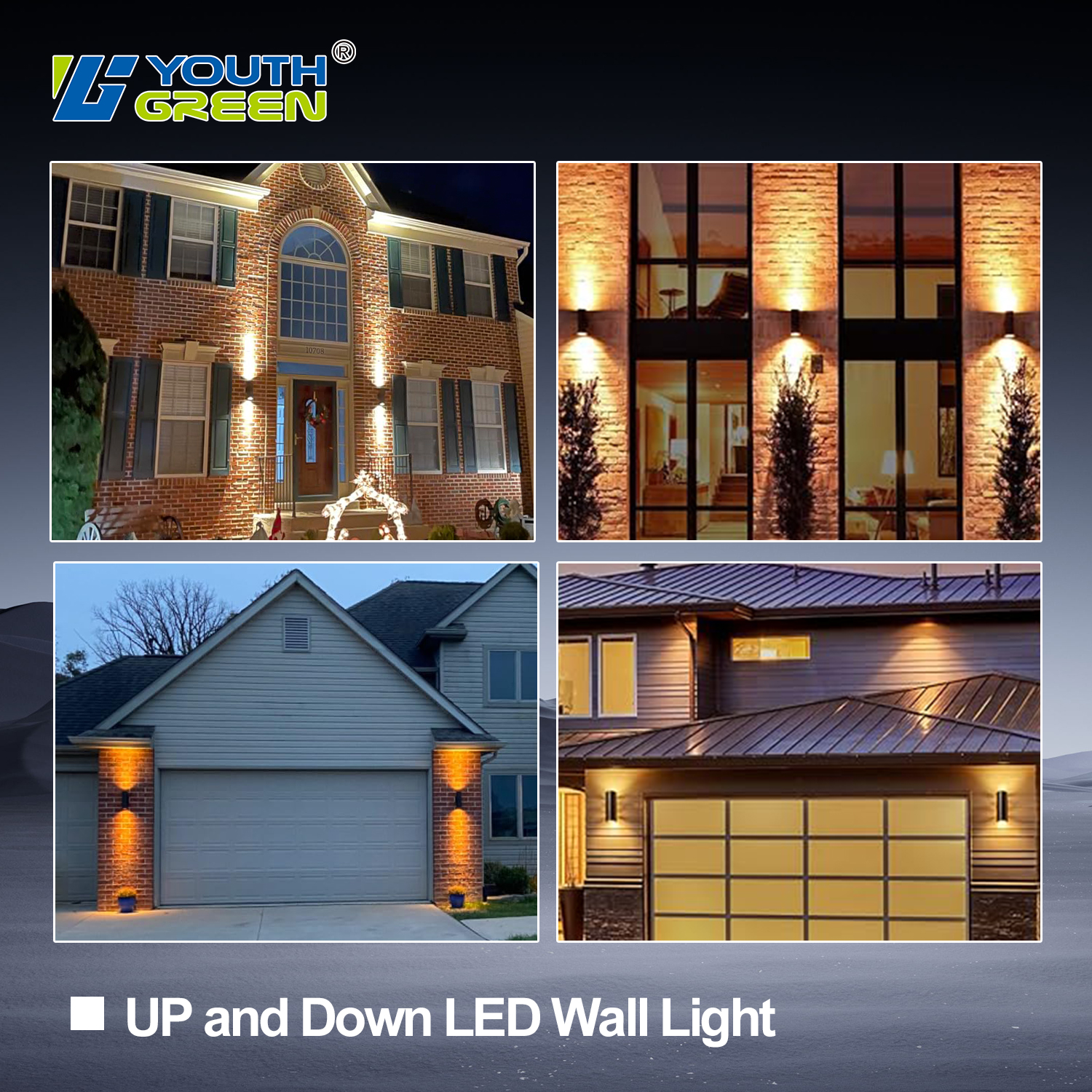

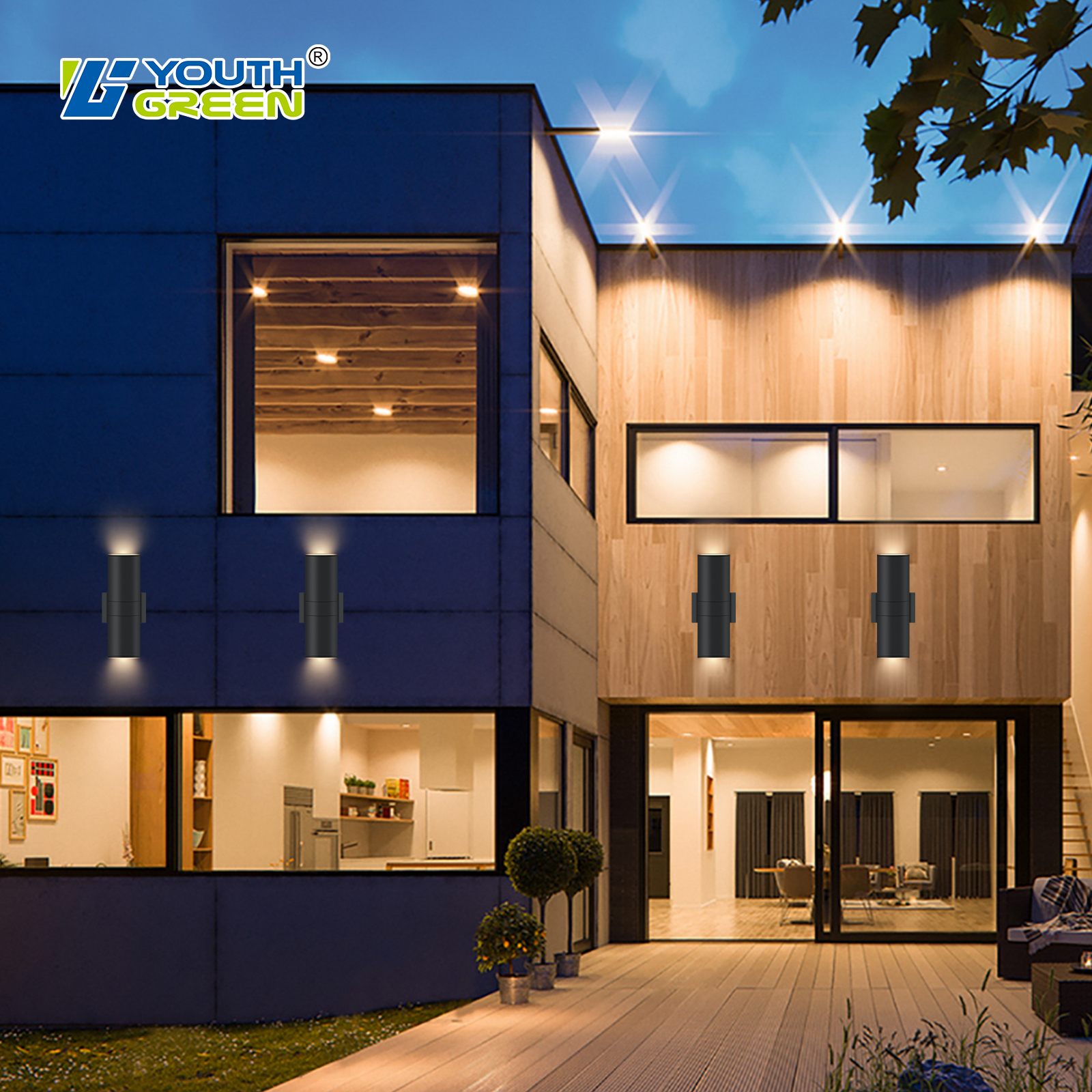

UP and Down Outdoor LED Wall Light


Power:12W、15W 、20W 、25W

Lumen:>100Lm/W

Color Temperature:5cct(2700K-3000K-3500K-4000K-5000K)

Sensor Model:Microwave induction(Optional)

Shape:Round or Square

Color:Black/Customisable

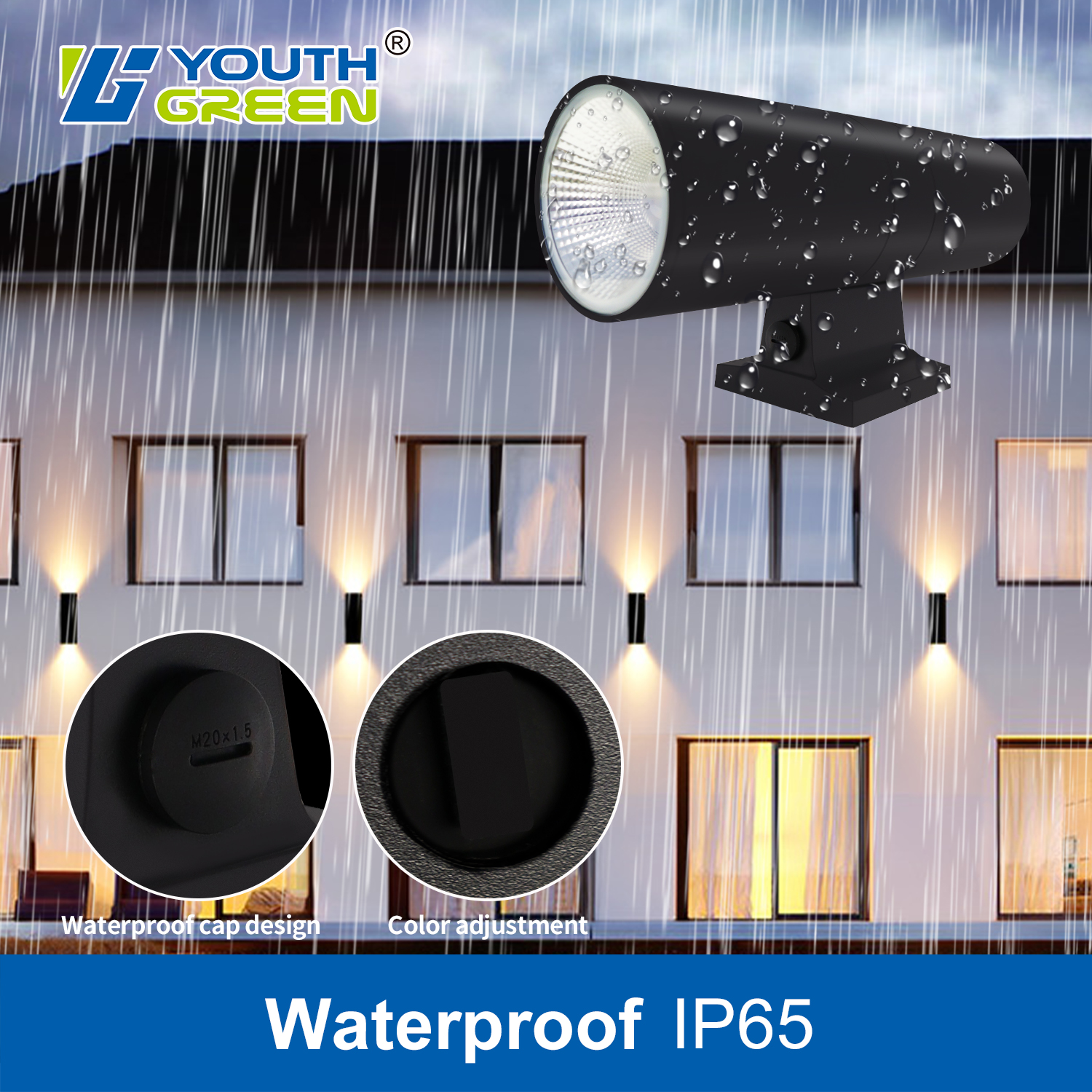

IP Rated:IP65 Waterproof

Beam Angle:70°

Input Voltage Range:AC120-277V,120-347V

Input Frequency(Hz):50Hz or 60Hz

Power Factory:>0.9

Housing Materials:Aluminium+Glasses

IK Rating:IK08

LED Chips Type:3030SMD

Color Tolerance Range:<7 Step

INSTRUCTIONS FOR PROPER ASSEMBLY


Warning

Turn power off from electrical panel before installation or maintenance

1.Take off the mounting bracket from the light fixture

2.Attached the mounting bracket to the J-BOX

3.Adjust the switch to select the color temperature 2700K-3000K-3500K-4000K-5000K

4.Use push in wire connectors to connect the wires

5.Fix the light fixture to the mounting bracket by 2 screws on the side

6.Installation is done.Products built-in with a  photocell sensor.Put on the cover to disable it,take off the cover to enable it.
