YG022D9-R-5C-WL
YOUTH GREEN

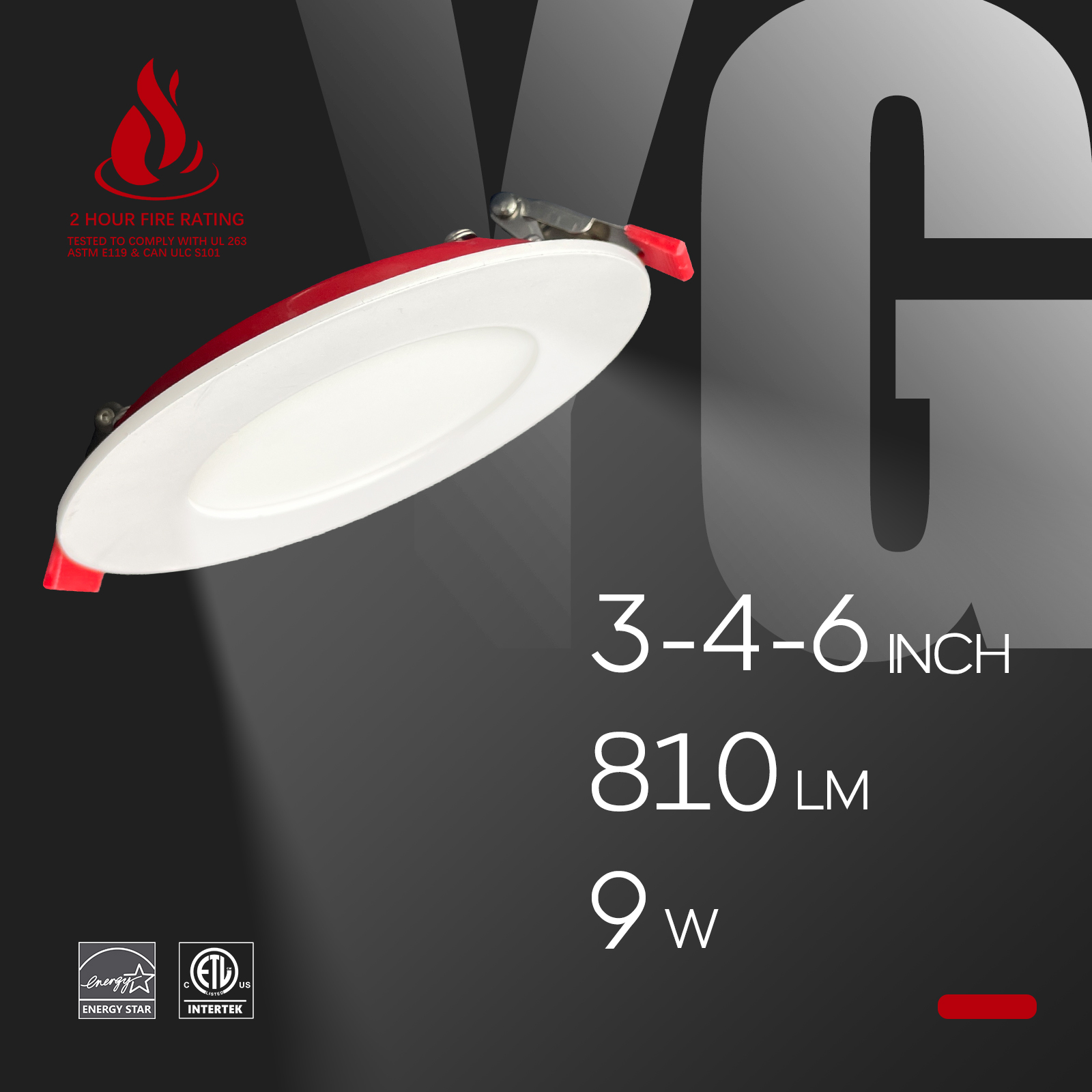

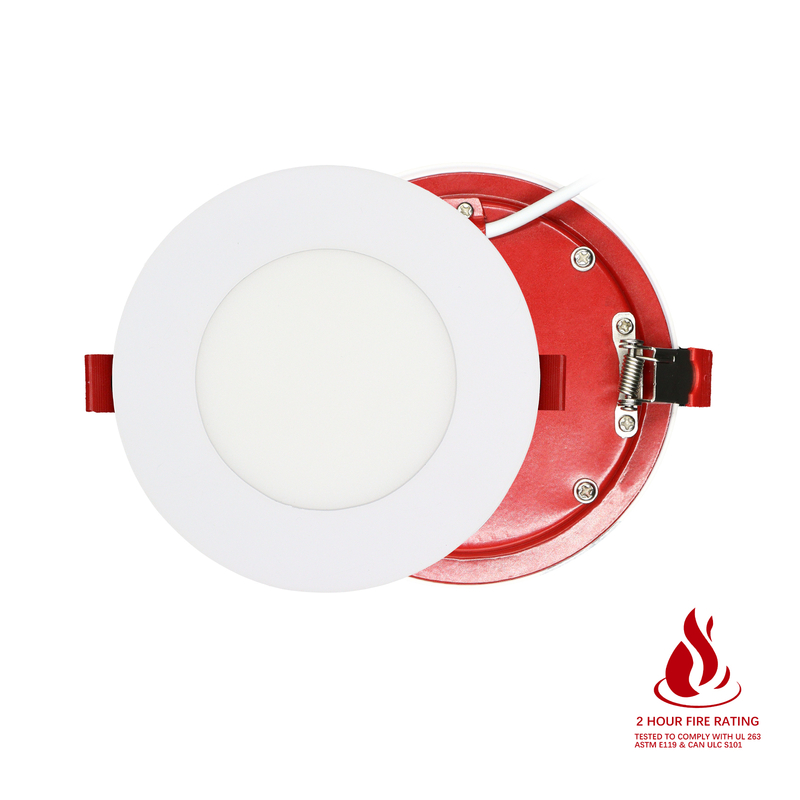

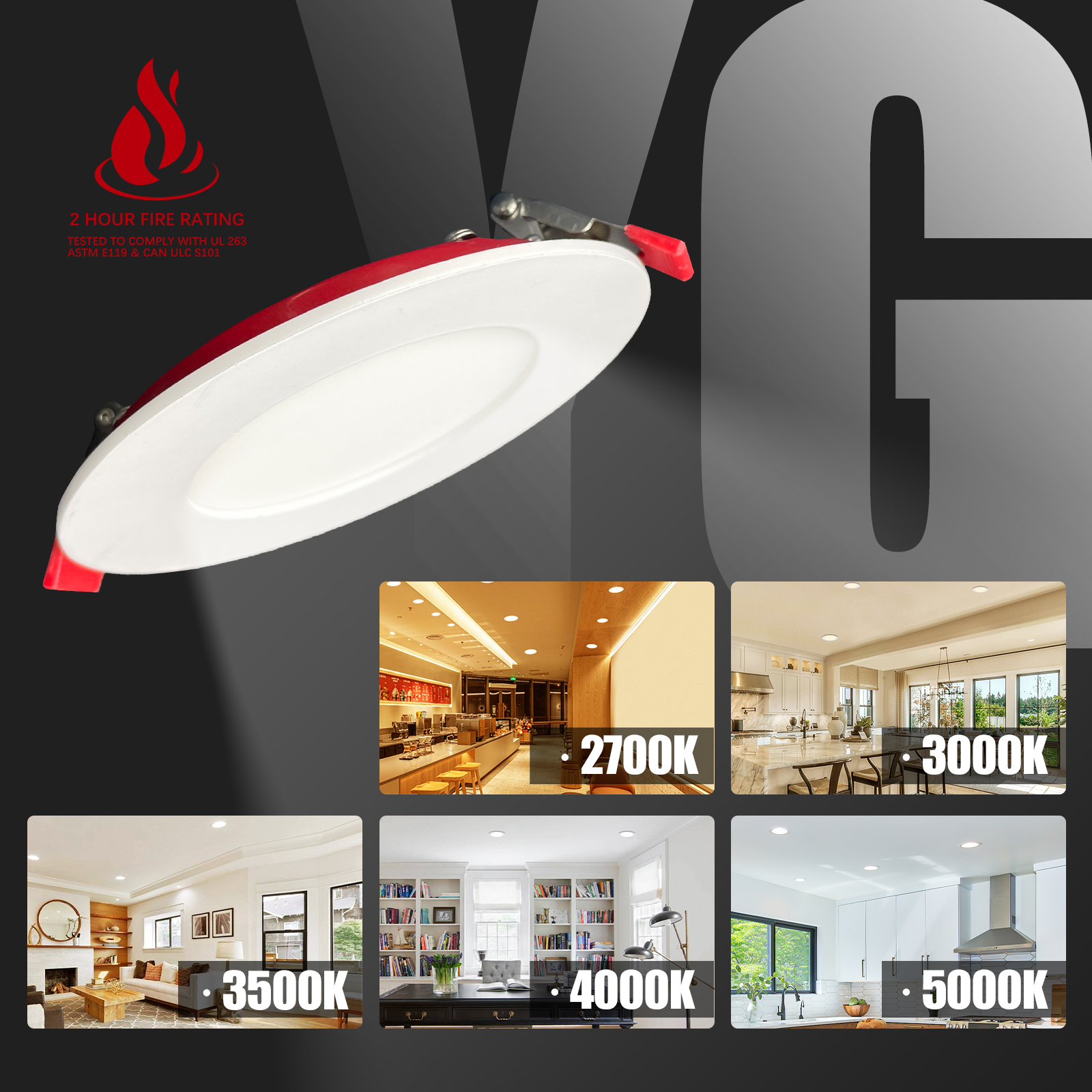

4Inch 5CCT LED Fire Rated Slim Panel Light
2 Hours Fire Rated In Accordance with UL263, ASTM E119 & CAN/ULC-S101 Standard
5CCT: 2700K-3000K-3500K-4000K-5000K Changeable
IP54 Suit For Wet Locations
High Brightness: 4Inch 9W 810LM, 6Inch 12W 1300LM

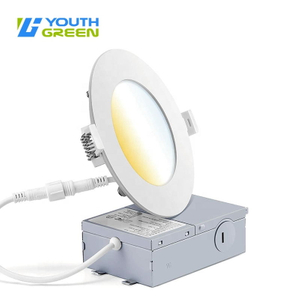

Recessed type with Junction box, All -in-one design,easier and tool-less installation design,no need installation CANS
AC120V triac dimmable ,with flicker-free,and best working effect with Lutron and Leviton dimmers;
Compatible with most LED dimmers, brightness can be adjusted from 5% to 100%
ETL/ES Listed & 5 Years Warranty
4Inch 5CCT LED Fire Rated Slim Panel Light
2 Hours Fire Rated In Accordance with UL263, ASTM E119 & CAN/ULC-S101 Standard
5CCT: 2700K-3000K-3500K-4000K-5000K Changeable
IP54 Suit For Wet Locations
High Brightness: 4Inch 9W 810LM, 6Inch 12W 1300LM
Recessed type with Junction box, All -in-one design,easier and tool-less installation design,no need installation CANS
AC120V triac dimmable ,with flicker-free,and best working effect with Lutron and Leviton dimmers;
Compatible with most LED dimmers, brightness can be adjusted from 5% to 100%
ETL/ES Listed & 5 Years Warranty
MMLED Fire Rated Slim Panel Light
Size:3inch/4inch/6inch
Power:6W/9W/12W
Lumen:500LM/810LM/1300LM

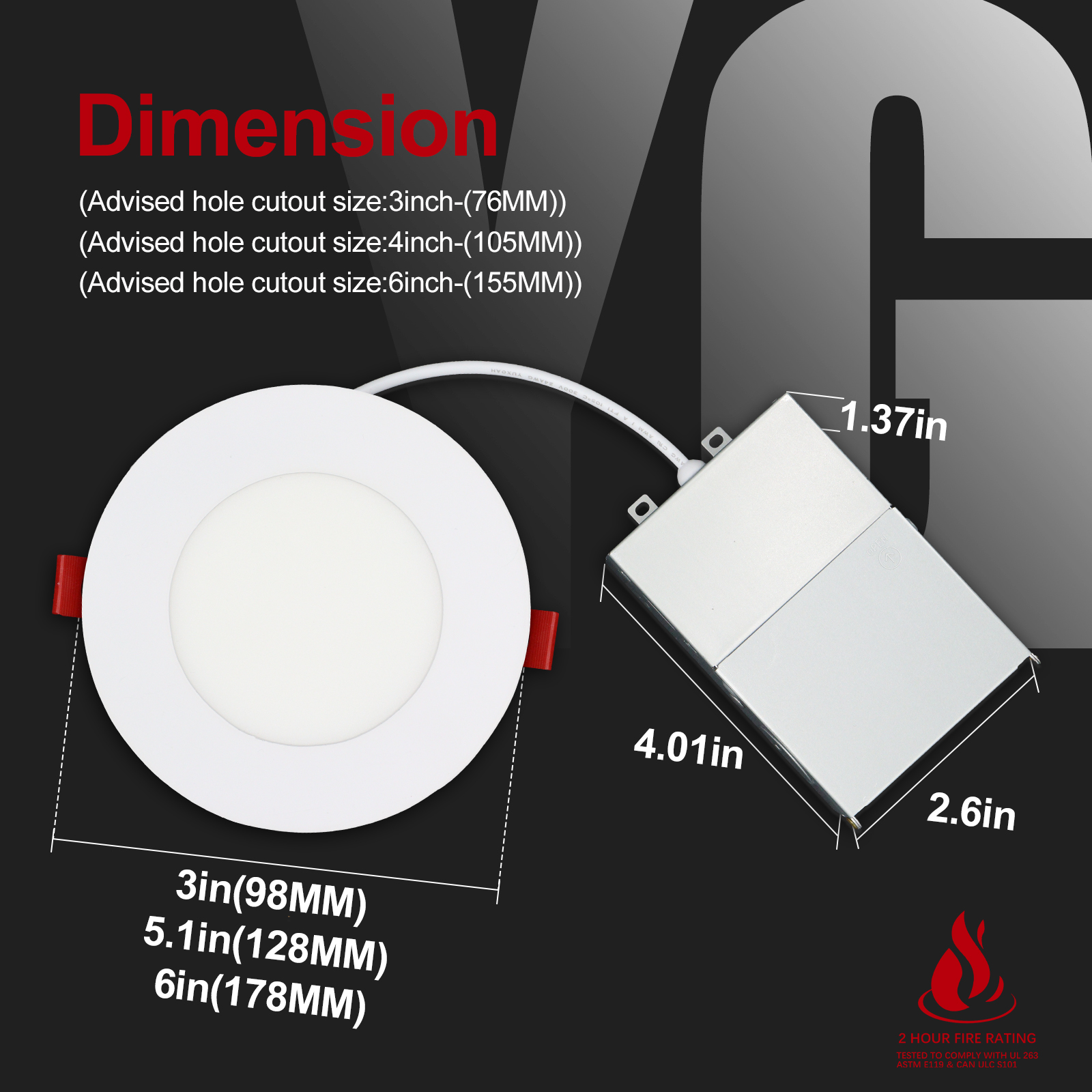

Diameter:92MM/128MM/178MM
Hole Diameter:76MM/105MM/155MM
Color Temperature:2700K-3000K-3500K-4000K-5000K
Shape:Round
Light Color:White
IP54(Wet Locations)
Input voltage:AC120V 50/60Hz
Ambient Temperature -4°F (-20°C) to +104°F (+40°C)
Power Factor:0.95~0.98
Material:Aluminum housing
LED Type:SMD2835
Brand of LED Chip:Sanan
Triacdimmable Testing:5-100%
Beam Angle:180 degree
Warranty:5 years
MMLED Fire Rated Slim Panel Light
Size:3inch/4inch/6inch
Power:6W/9W/12W
Lumen:500LM/810LM/1300LM
Diameter:92MM/128MM/178MM
Hole Diameter:76MM/105MM/155MM
Color Temperature:2700K-3000K-3500K-4000K-5000K
Shape:Round
Light Color:White
IP54(Wet Locations)
Input voltage:AC120V 50/60Hz
Ambient Temperature -4°F (-20°C) to +104°F (+40°C)
Power Factor:0.95~0.98
Material:Aluminum housing
LED Type:SMD2835
Brand of LED Chip:Sanan
Triacdimmable Testing:5-100%
Beam Angle:180 degree
Warranty:5 years
INSTRUCTIONS FOR PROPER ASSEMBLY
Cut a circular opening in the gypsum ceiling such that the annular space between the ceiling membrane and the fixture does not exceed 1/8 inch.
Ensure penetrations do not exceed 100 square inches in any 100 square feet of ceiling area.
Install with a minimum separation of 4 feet between units.
Maintain a minimum 1 inch space between the edge of the fixture and closest structural member.
INSTRUCTIONS FOR PROPER ASSEMBLY
Cut a circular opening in the gypsum ceiling such that the annular space between the ceiling membrane and the fixture does not exceed 1/8 inch.
Ensure penetrations do not exceed 100 square inches in any 100 square feet of ceiling area.
Install with a minimum separation of 4 feet between units.
Maintain a minimum 1 inch space between the edge of the fixture and closest structural member.
