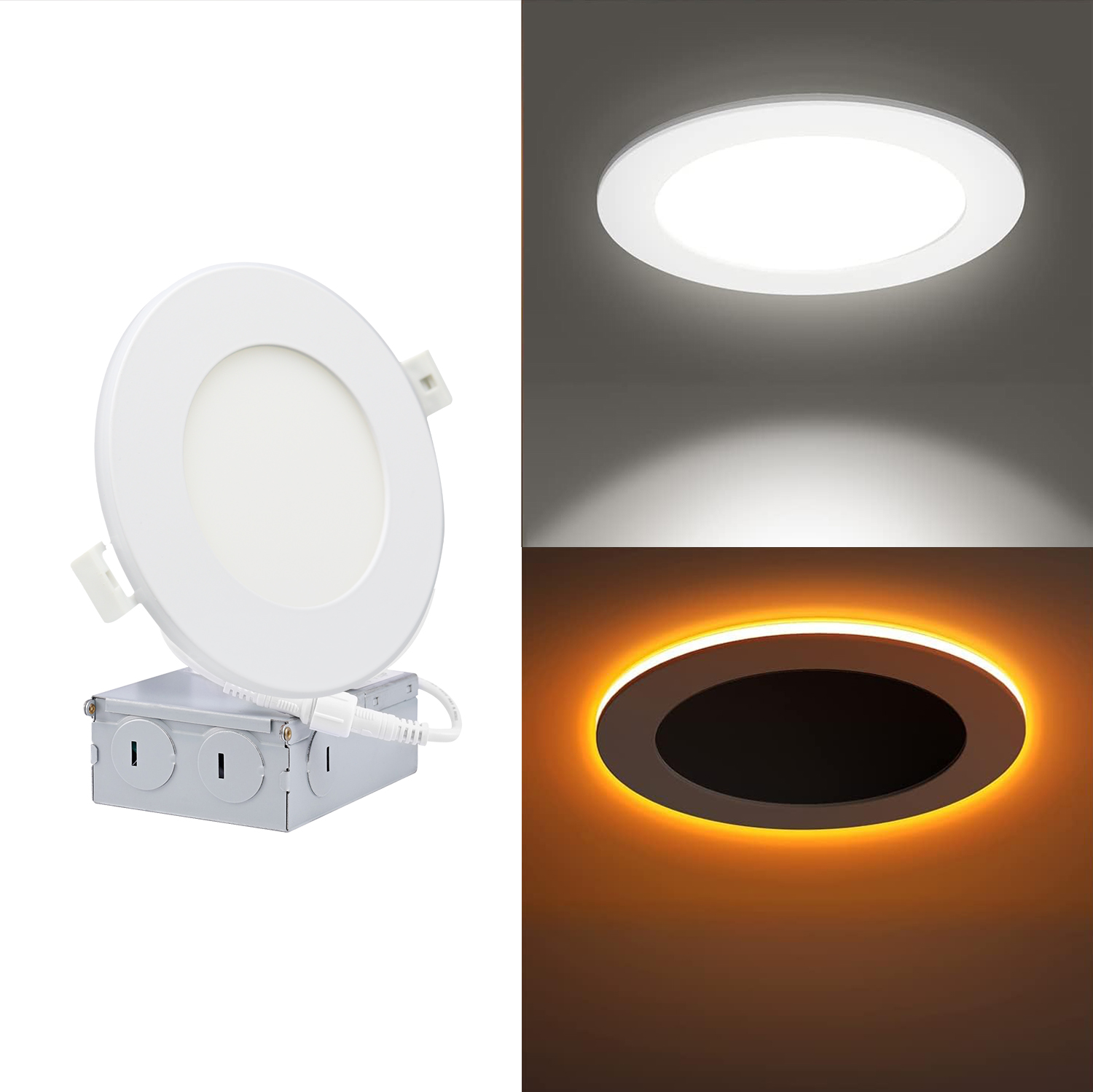

LED Recessed Downlight with Night Light 2000K

YG016D9-R-WL
ETL/Energy Star/FCC/5 Years Warranty
Size:
Power:
Color Temperature:
Remark:
Availability:
Quantity:
  • YG016

  • YOUTH GREEN

  • YG Patent Model YG016

  • 4INCH 9+3W LED Recessed Downlight with Night Light

  • 810LM High Brightness,Save you up to 88% in energy costs.

  • 128 diameter

  • Ultra-thin design:0.94inch

  • Guaranteed for 50000 hours life span

  • One Downlight for Two Purposes

  • 2700K 3000K 3500K 4000K 5000K Selectable

  • Night Light Mode 2000K

  • No Flicker,No Noise.anti-glare and eye protection,to creat a more comfortable enviroment

  • Fast & easy installation


4Inch 9+3W LED Recessed Downlight with Night Light 2000K


Size:4Inch

Power(Wattage):9+3W

Lumen:810LM

Diameter:128MM

Hole Diameter:105MM

Color Temperature Selectable:5CCT(2700K-3000K-3500K-4000K-5000K)+Night Light 2000K

Shape:Round

Light Color:White

IP Rate:IP44(Wet Locations)/IP54(Wet Locations)

Input voltage:AC120V 50/60Hz

Power Factor:0.95~0.98

Material:Aluminum housing with PMMA lampshade

LED Type:SMD2835

Brand of LED Chip:Sanan

Triacdimmable Testing:5-100%

Beam Angle:180 degree

Warranty:5 years



  • YG Patent Model:YG016.Private molds,patented production.

  • 5CCT:2700K,3000K, 3500K,4000K, 5000K, 5 color temperature selectable, no need to worry about what color temperature to buy, eliminates the hassle of returning or exchange products due to inappropriate color temperature.

  • Perfect Indoor Light: With the hassle-free installation not limited by a housing can, the smooth 5% - 100% dimming, and being a perfect fit for multiple indoor locations. You are sure to find a use for this light in closets, kitchen, hallways, doorways, basement, etc

INSTRUCTIONS FOR PROPER ASSEMBLY


  • Cut a circular opening in the gypsum ceiling such that the annular space between the ceiling membrane and the fixture does not exceed 4.13inch(105mm).

  • Ensure penetrations do not exceed 100 square inches in any 100 square feet of ceiling area.

  • Install with a minimum separation of 4 feet between units.

  • Maintain a minimum 1 inch space between the edge of the fixture and closest structural member.
