Smart Slim LED Recessed Light with Night Light

Smart Slim LED Recessed Light with Night Light

• Control from your smartphone or tablet with the user-friendly Smart Life app

• control to dim, turn on/off or change colors

• Control bulbs individually or create different groups to control in unison

• You can even bump up the beat and atmosphere with Music Sync, which changes color to the beat of your favorite songs

• Smart Sim LED Recessed Light with Night Light provides instant bright light in various color temperature options to suit the look and feel of your space

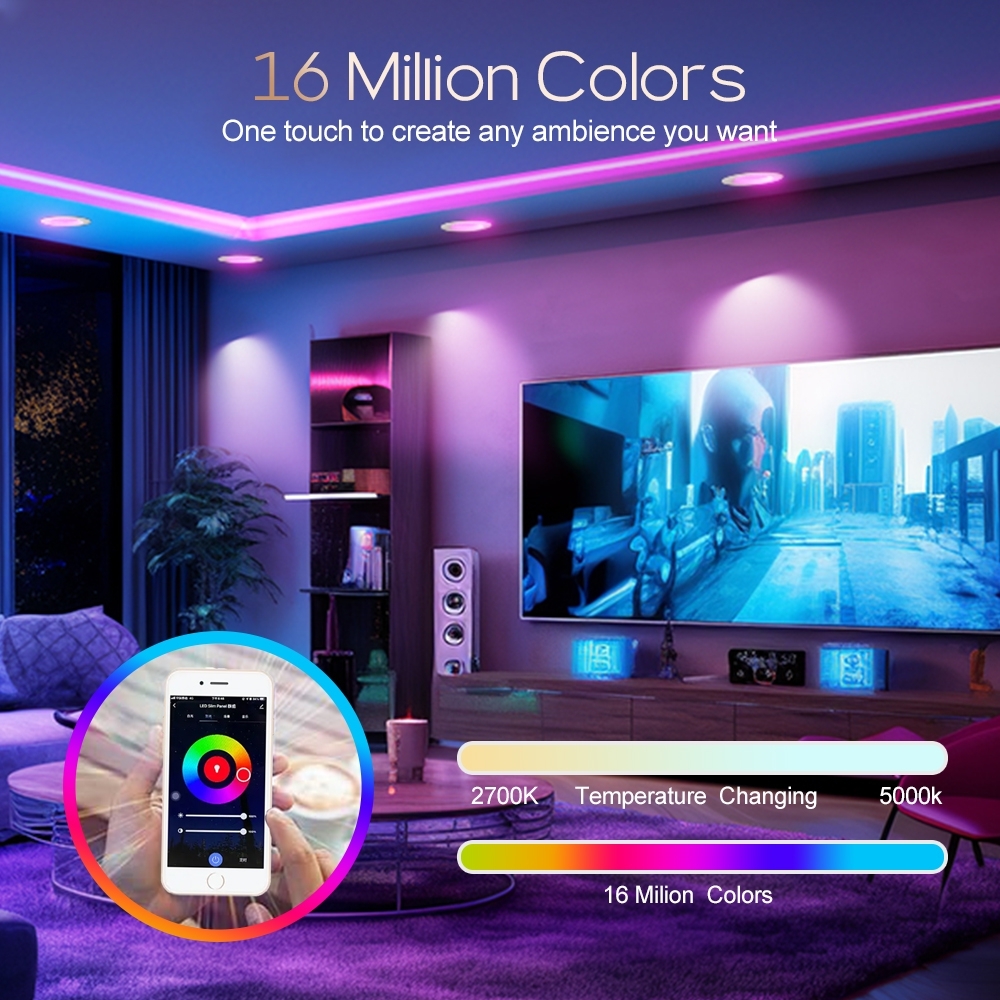

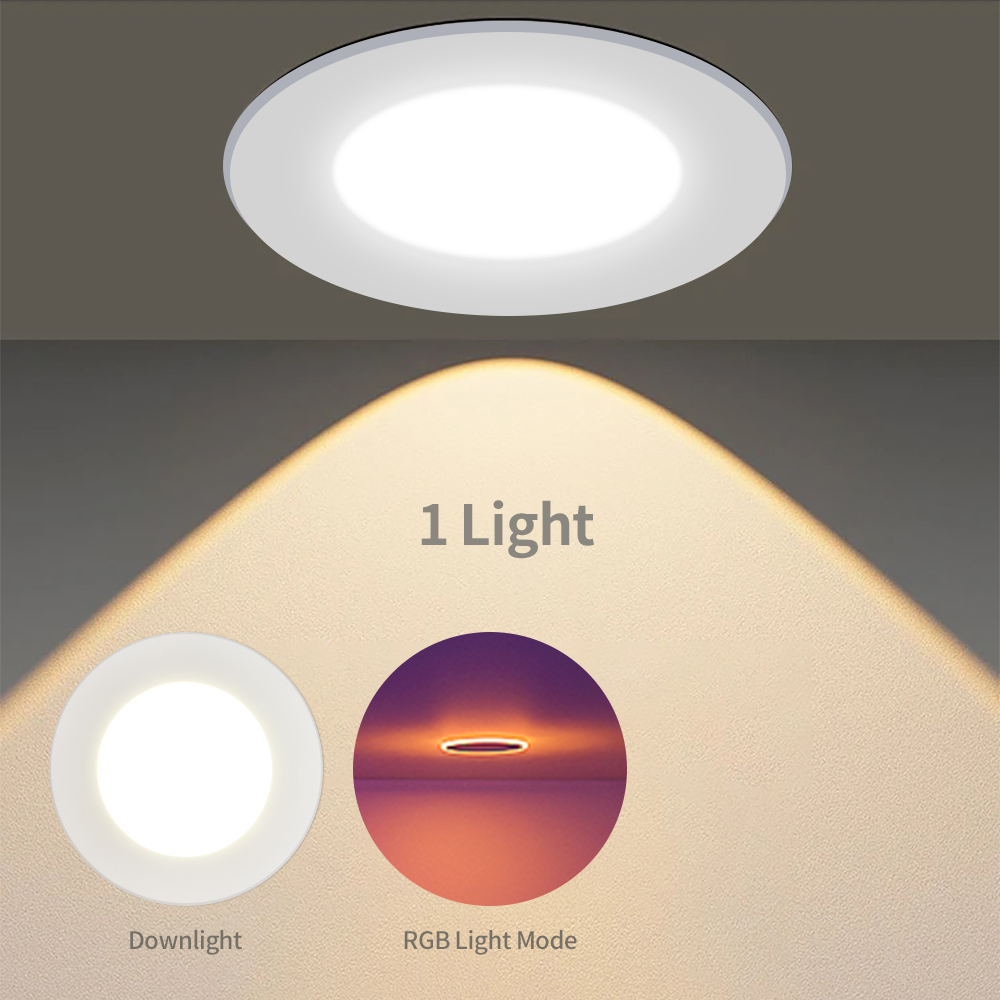

• Tune the color temperature of the main light, or switch to the Night Light mode and change colors via the RGB rainbow color wheel on the Smart Life app

• Seamless dimming capabilities (5%-100%) to fit any mood or decor

• Our slim downlights give off sunlight-like quality for true color rendering.


Smart Slim LED Recessed Light with Night Light

• Size:4inch

• Power（Wattage):9w+3w

• Lumen:810Lm

• Diameter:128mm

• Cut hole Diameter:105mm

• Color Temperature:RGBCW

• Shape:Round

• Light Color:White

• IP Rate:IP54

• Input voltage:AC120,50Hz or 60Hz

• Power Factor:0.95-0.98

• Operating Temperature:-40°F~104°F(-20°C-40°C)

• CRI:>80

• LED Type:SMD2835

• Installation of LED Driver:Internal

• Type of LED Driver:Constant current output

• Energy Level:A

• Triac Dimmable:Yes

• Testing:Dimming,Aging Testing

• Life Span Based on 3hrs/days:50000Hrs

• Beam Angle:120D

• Warranty:5 Years

• Certificates:ETL/ES/FCC

• Brand of LED Chip:Epistar

INSTRUCTIONS FOR PROPER ASSEMBLY

• 1.Turn power OFF from the electrical panel prior to installation.

• Determine the location for installation and cut ceiling hole inaccordance with cut-hole dimensions.Refer toHole Diametertable forappropriate sizes

• Open the junction box cover and remove the appropriate knockout(s)on the side panel

• Insert the electrical supply cable through theknockout and securewitha cable connector (sold separately).

• Using quick-connect push-in terminals,connecttheground wire to thegreen wire terminal;black wire to black wire terminal white wire towhite wire terminal

• Place al wiring and connections back in to the boxandclose the cover.Connect the driver to the lightpanel.

• Insert junction box through the mounting hole

• Push spring-loaded clips on the fixtureupwards and insert fixture basen to the mounting hole.Release theclips and fixture will be pulledflush to the ceiing.

• Do not modify this fixture.Any modifications may render the productunsafe and void warranty.

• This product is suitable for damp locations

• 0perating Temperatures:-20℃ to+40℃

• LED Panel and Remote Driver Box are Type IC rated
