YG010I18-R-3C-MS
Youth Green

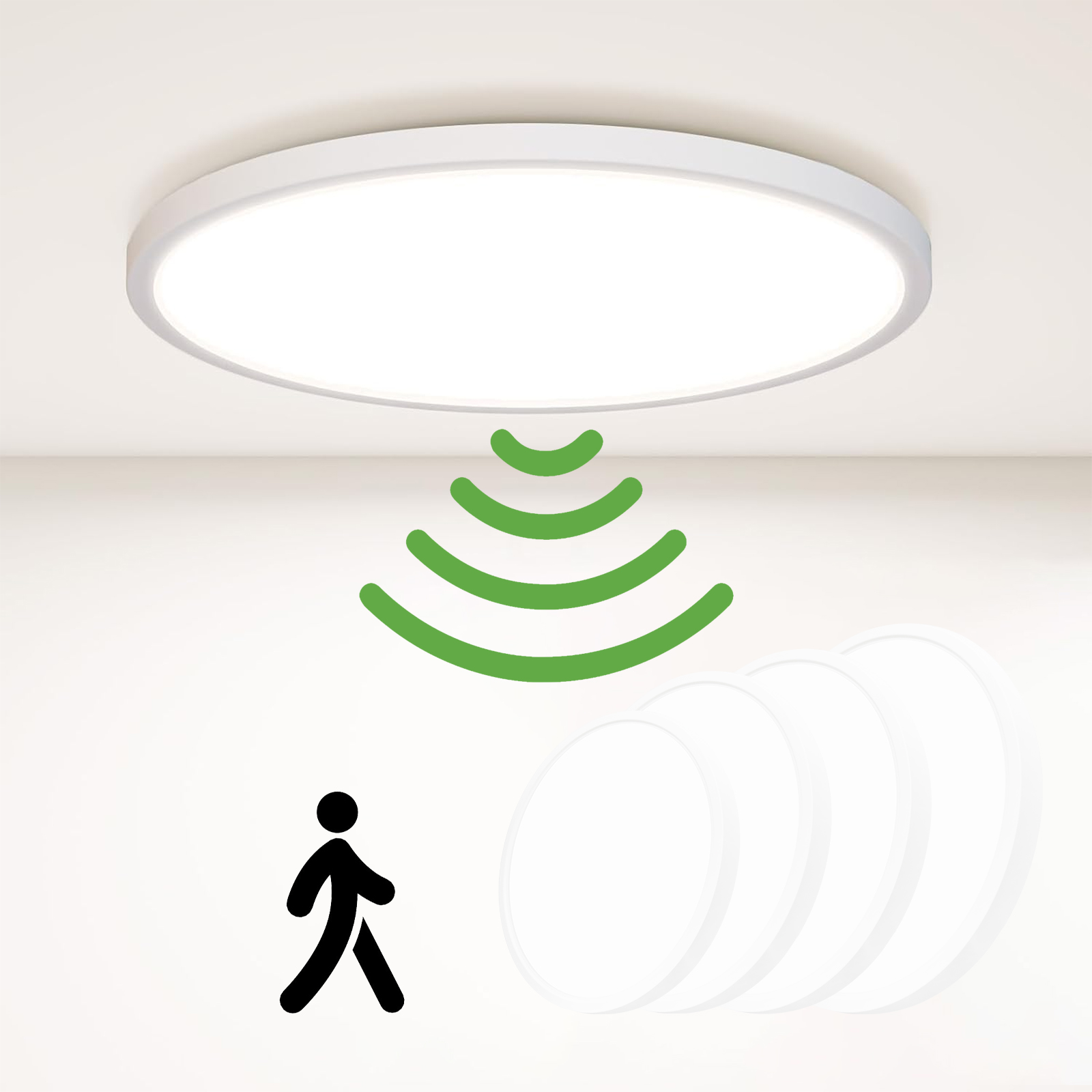

9inch 12inch 15inch Round Radar Motion Sensor LED Flush Mount Panel
7in 12W,9inch 18w, 12inch 24w, 15in 30w, AC120V 50/60Hz
840LM/2000LM/3000LM/4000LM
Single Color: 3000k/4000k/5000k/6000k or Color Selectable:3000k-4000k-5000k
Durable white plastic housing

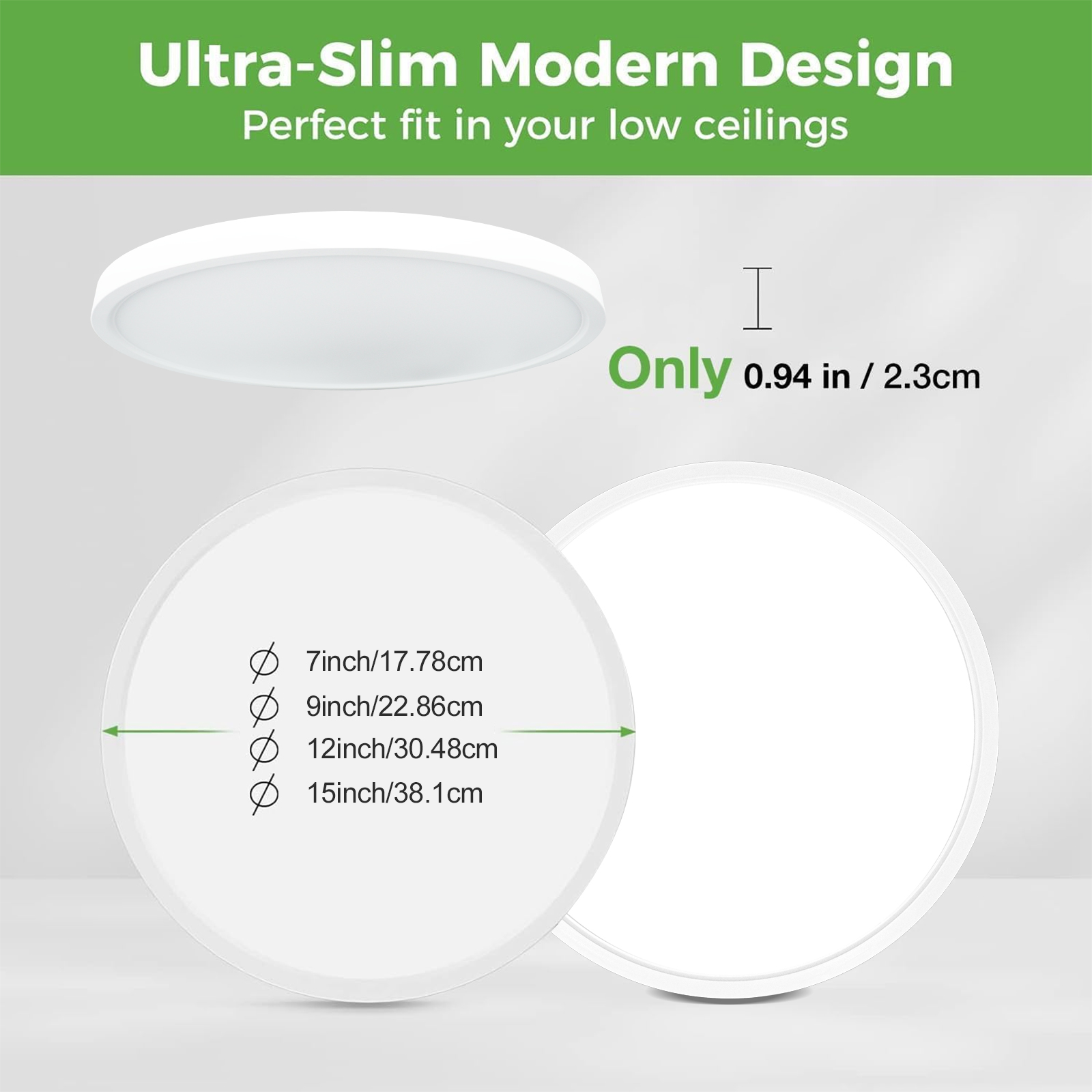

Ultra thin design, 0.94inch only
SMD2835
CRI＞80
Glare-Free & Eye Protection,No Flicker, no buzzing, no blue light, no radiation and no UV, soft and uniform lighting source care for your family's health all the time.

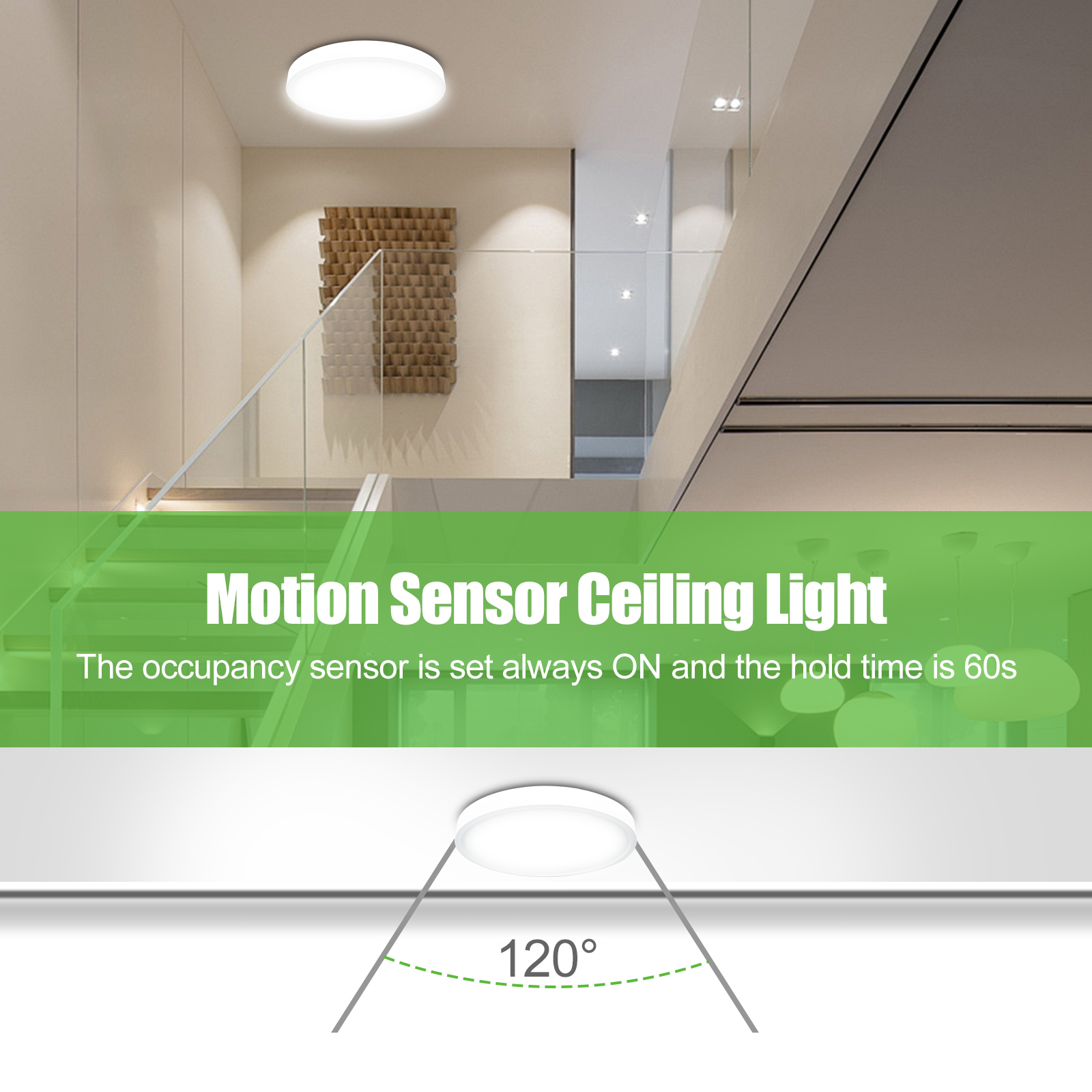

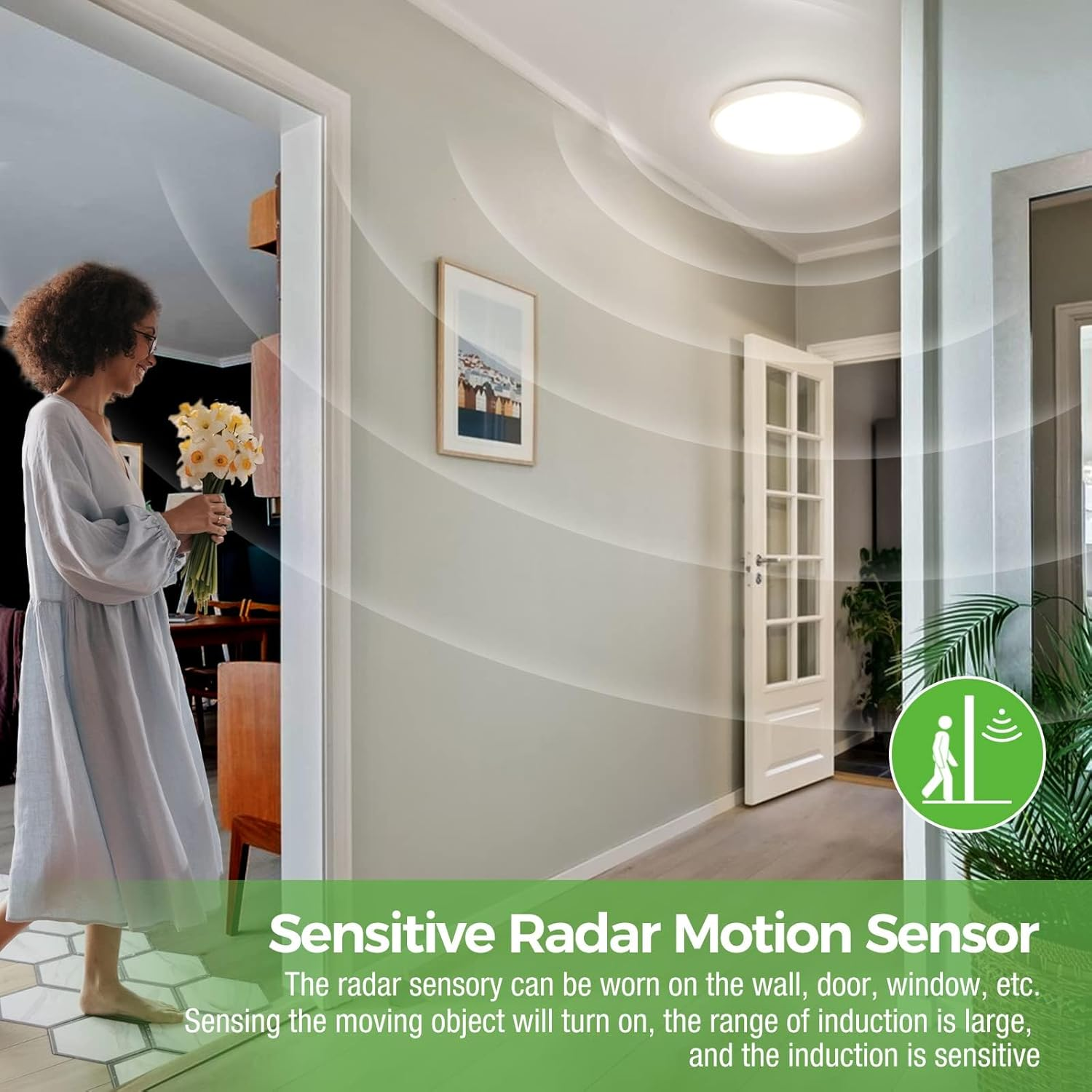

5 -10 meter (13.1-32.8ft) detection range, refer to diagram
After 60 seconds of no movement detection, the ceiling luminaire will turn off
Compatible for North America’s installation regulation requirementl
ETL /CETL/ES Certificated, 5 years warranty.
9inch 12inch 15inch Round Radar Motion Sensor LED Flush Mount Panel
7in 12W,9inch 18w, 12inch 24w, 15in 30w, AC120V 50/60Hz
840LM/2000LM/3000LM/4000LM
Single Color: 3000k/4000k/5000k/6000k or Color Selectable:3000k-4000k-5000k
Durable white plastic housing
Ultra thin design, 0.94inch only
SMD2835
CRI＞80
Glare-Free & Eye Protection,No Flicker, no buzzing, no blue light, no radiation and no UV, soft and uniform lighting source care for your family's health all the time.
5 -10 meter (13.1-32.8ft) detection range, refer to diagram
After 60 seconds of no movement detection, the ceiling luminaire will turn off
Compatible for North America’s installation regulation requirementl
ETL /CETL/ES Certificated, 5 years warranty.
Round Radar Motion Sensor LED Flush Mount Panel
Size: 7inch/9inch/12inch/15inch
Power: 12W/18W/24W/30W
Lumen: 840LM/2000/3000/4000Lumens
Single Color: 3000k/4000k/5000k/6000k or Color Selectable:3000k-4000k-5000k
CRI: 80+
IP Rate: IP44 Waterproof
Thinckness:22mm
Smooth and uniform lighting

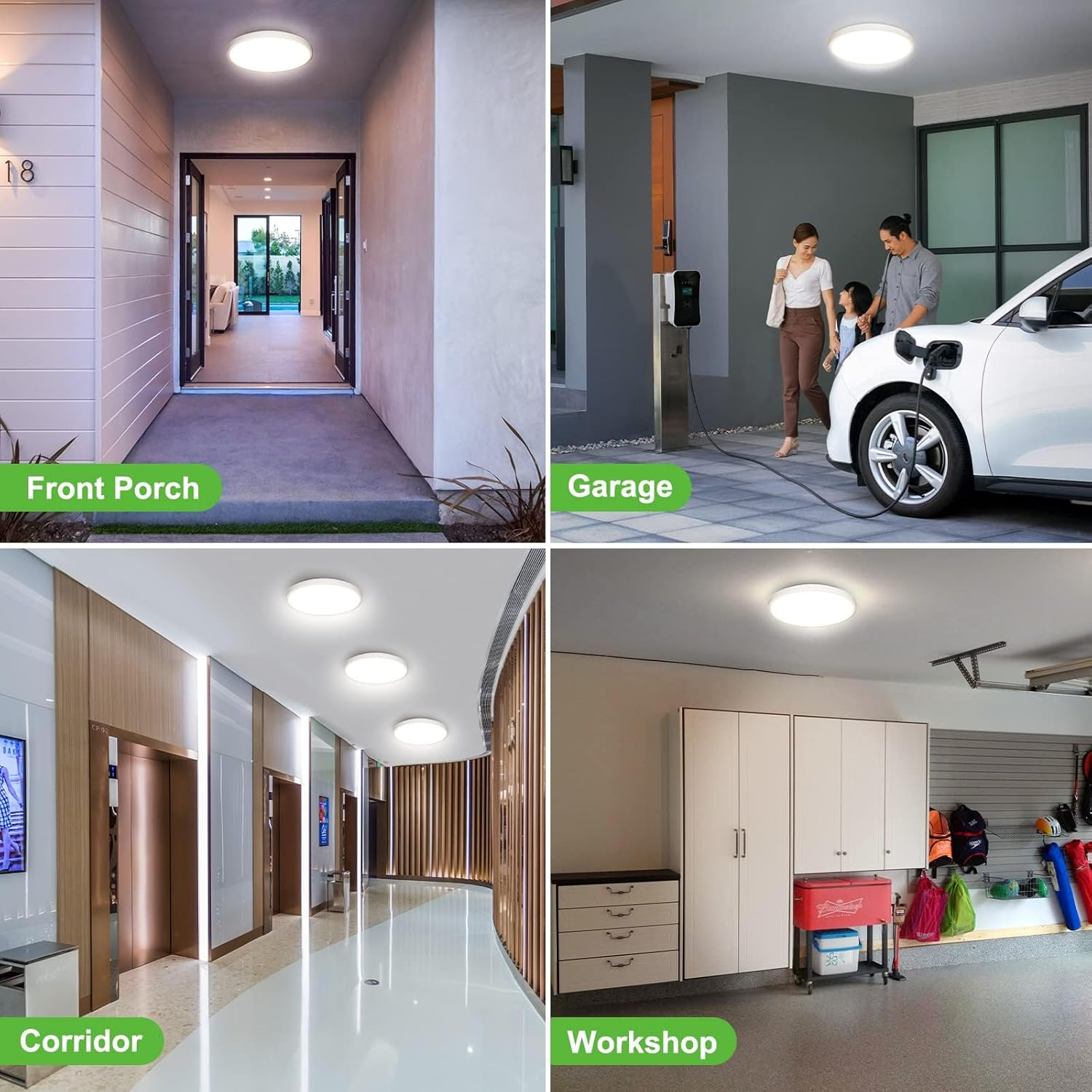

Suitable for:Living room/Corridor/Hallway/Kitchen/Staiways
Driver Input Voltage AC120V,50Hz/60Hz
Traic Dimmable: 5%~100% Dimmable(Remarks:7inch are not dimmable)
After 60 seconds of no movement detection, the ceiling luminaire will turn off
5 -10 meter (13.1-32.8ft) detection range, refer to diagram
Ambient Operating Temperature: (-20℃) to (40℃),The led ceiling light adopts high-quality plastic shell to prevent potential risks of electric shock and leakage, and protect the safety of you and your family.
Lifespan: 50,000 hours working time
Certificates: ETL, ES, FCC
Warranty: 5 Years Warranty
Round Radar Motion Sensor LED Flush Mount Panel
Size: 7inch/9inch/12inch/15inch
Power: 12W/18W/24W/30W
Lumen: 840LM/2000/3000/4000Lumens
Single Color: 3000k/4000k/5000k/6000k or Color Selectable:3000k-4000k-5000k
CRI: 80+
IP Rate: IP44 Waterproof
Thinckness:22mm
Smooth and uniform lighting
Suitable for:Living room/Corridor/Hallway/Kitchen/Staiways
Driver Input Voltage AC120V,50Hz/60Hz
Traic Dimmable: 5%~100% Dimmable(Remarks:7inch are not dimmable)
After 60 seconds of no movement detection, the ceiling luminaire will turn off
5 -10 meter (13.1-32.8ft) detection range, refer to diagram
Ambient Operating Temperature: (-20℃) to (40℃),The led ceiling light adopts high-quality plastic shell to prevent potential risks of electric shock and leakage, and protect the safety of you and your family.
Lifespan: 50,000 hours working time
Certificates: ETL, ES, FCC
Warranty: 5 Years Warranty
INSTRUCTIONS FOR PROPER ASSEMBLY
Fix bracket on Octagonal Electrical box
Connecting the wire
Fixing the lamp body on bracket and fix tightly with provided plastic clips.
Caution
Warning:Risk of fire.Use AC120 50Hz/60Hz circuits.
Suitable for damp locations. Operating temperatures: -20℃ - +40℃，All electrical connections must be with an accordance with local and National Electrical Code (NEC) standards.
Obey fire prevention regulations,do not cover the fixture with any heat insulated materials.
Do not change the LED light source or driver under any circumstances. Any modification or alteration of the fixture made by Buyer or his/her installer void the warranty.
Warranty applies to the original consumer purchase only. Proof of purchase is required. The product has to be returned in original packaging.The amount of the claim cannot exceed the original purchase price of the product.
Manufacturer specifically disclaims any liability and shall not be liable or responsible for any direct, consequential or incidental loss,damage or injuries related to the use of the product, including but not limited to any labor/expense costs involved in the replacement, installation or repair of the product.
INSTRUCTIONS FOR PROPER ASSEMBLY
Fix bracket on Octagonal Electrical box
Connecting the wire
Fixing the lamp body on bracket and fix tightly with provided plastic clips.
Caution
Warning:Risk of fire.Use AC120 50Hz/60Hz circuits.
Suitable for damp locations. Operating temperatures: -20℃ - +40℃，All electrical connections must be with an accordance with local and National Electrical Code (NEC) standards.
Obey fire prevention regulations,do not cover the fixture with any heat insulated materials.
Do not change the LED light source or driver under any circumstances. Any modification or alteration of the fixture made by Buyer or his/her installer void the warranty.
Warranty applies to the original consumer purchase only. Proof of purchase is required. The product has to be returned in original packaging.The amount of the claim cannot exceed the original purchase price of the product.
Manufacturer specifically disclaims any liability and shall not be liable or responsible for any direct, consequential or incidental loss,damage or injuries related to the use of the product, including but not limited to any labor/expense costs involved in the replacement, installation or repair of the product.
