CCT& Power Tunable UFO LED High Bay Light

YGUFO-001
ETL DLC 5.1 Premium CE RoHS Certificates
Power:
Color Temperature:
Sensor Model:
Certificates:
Availability:
Quantity:
  • YGUFO-001

  • YOUTH GREEN

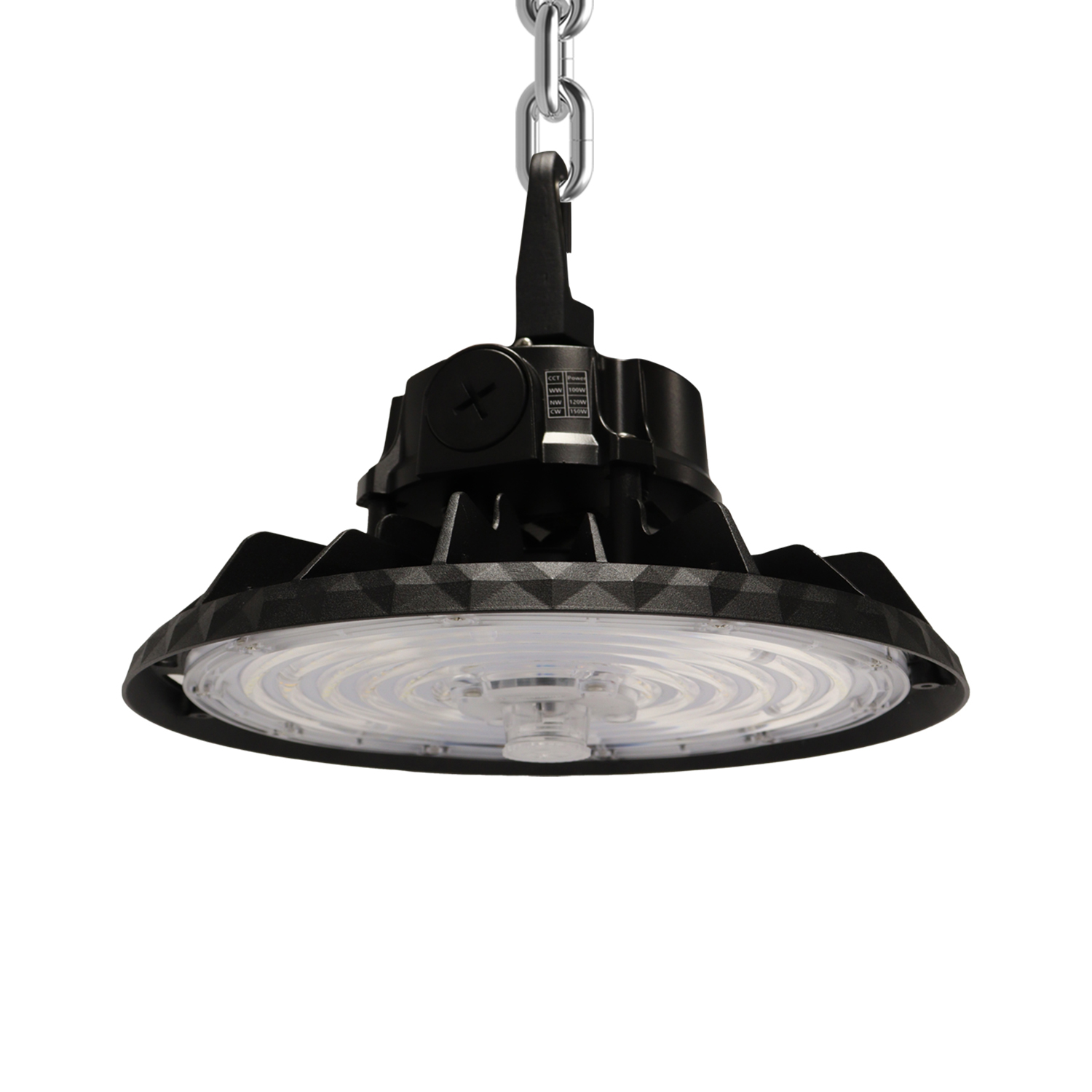

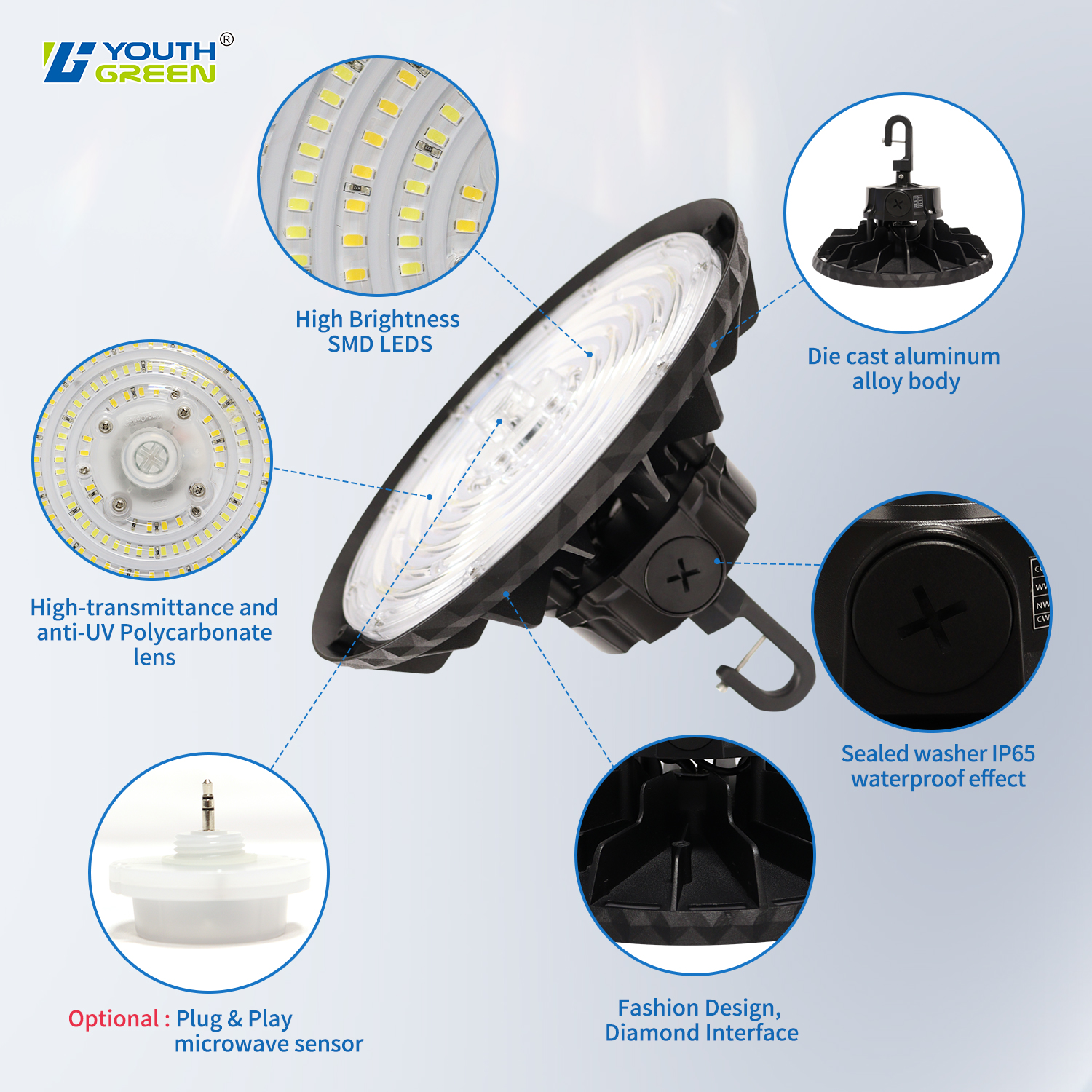

CCT & Power Tunable LED UFO High Bay Light


  • It has a built-in durable driver, supports AC120-277V or 120-347V voltage

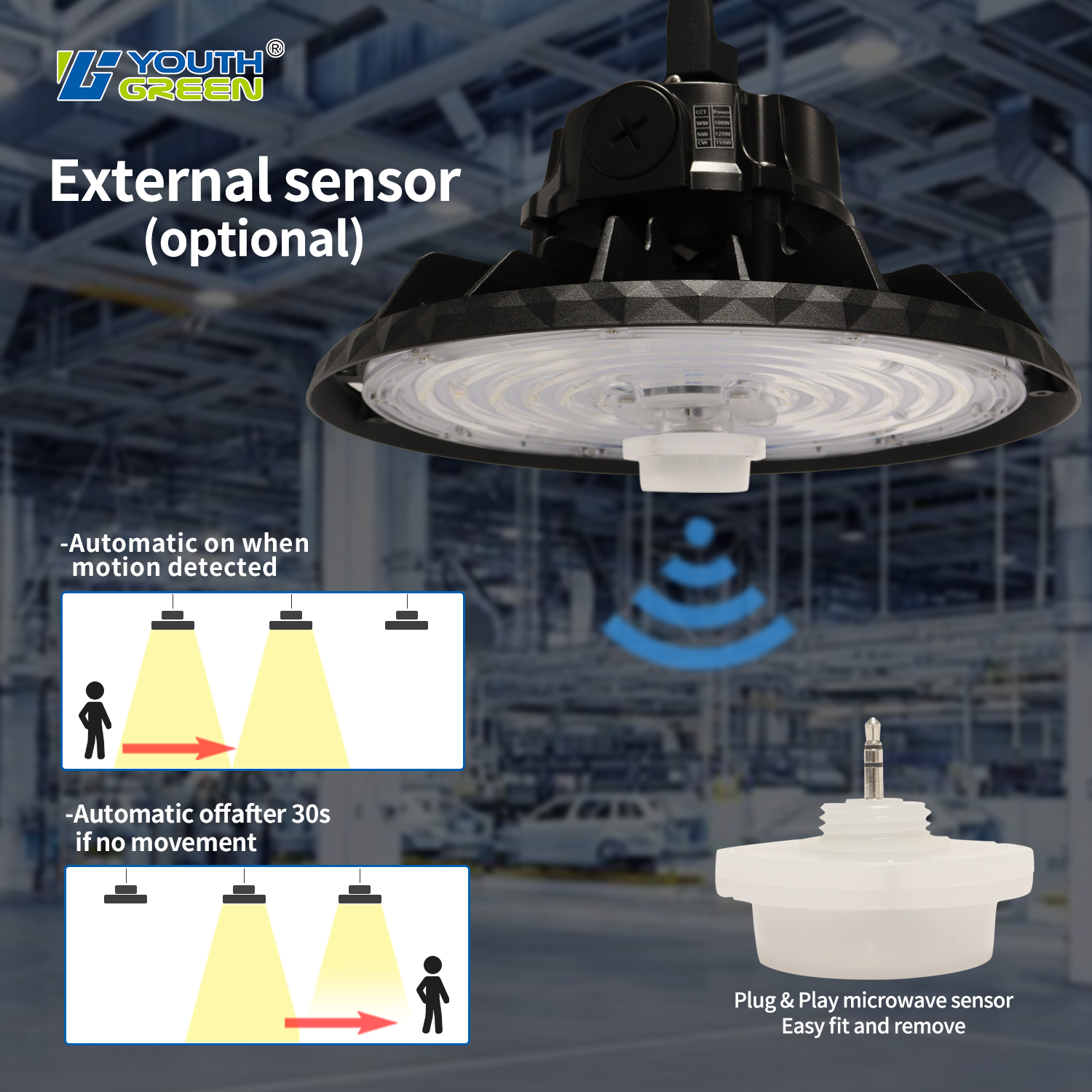

  • High bay light is equipped with a motion sensor and remote control function

  • Saves time, allowing you to control the lights without having to manually flip a switch

  • Saves on electricity bills but also operates at a remarkable efficiency of up to 150LM/W

  • Enjoy low-cost operation with energy savings of up to 80%

  • Made of aluminum, with die-casting technology, and has excellent heat dissipation performance

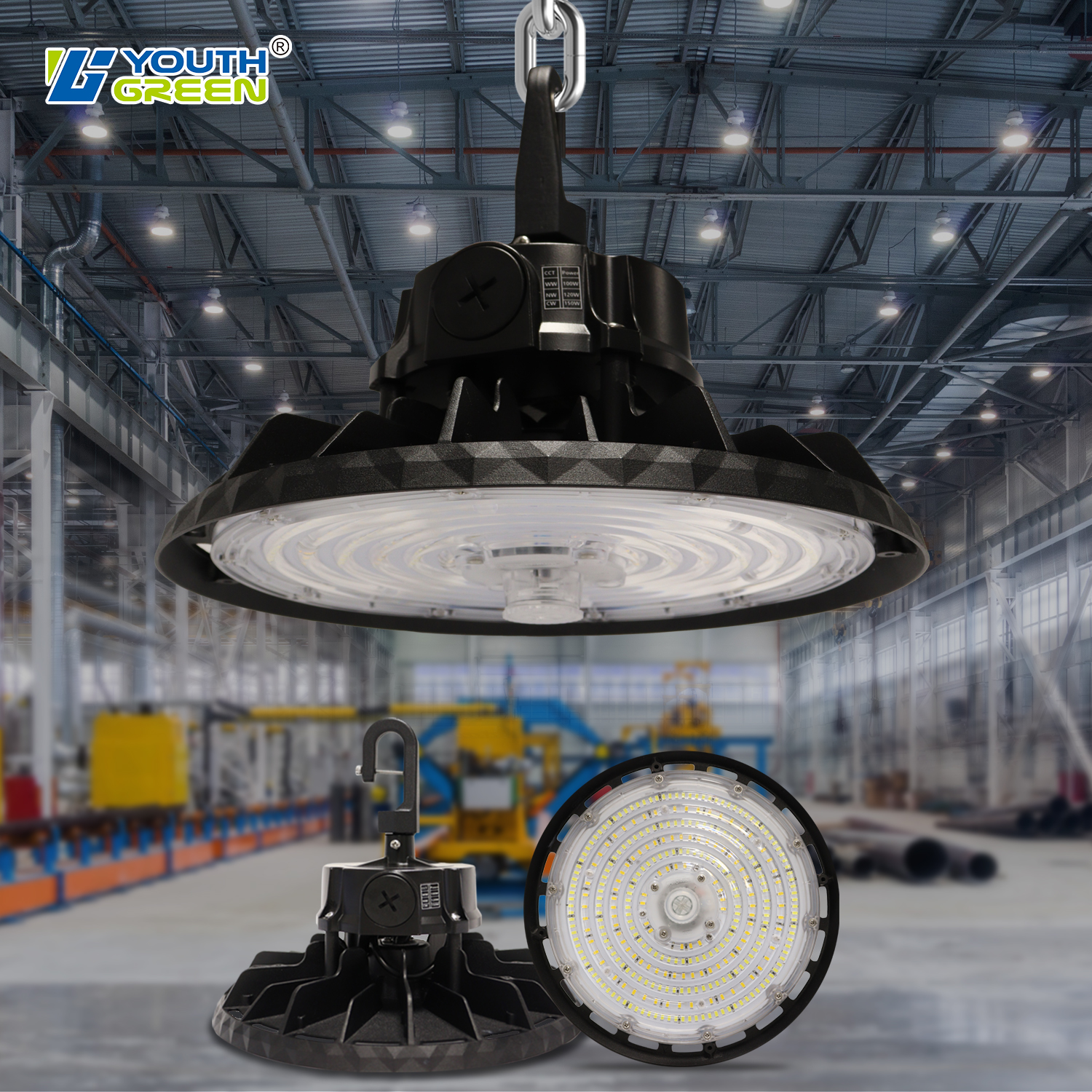

  • Ideal for a variety of settings including workshops, warehouses, garages, barns, gyms, factories, supermarkets, ect

  • LED high bay lights are versatile and suitable for a wide range of environments, including industrial warehouses, factories, stadiums, and retail stores

  • With the addition of a smart motion sensor, you can work with greater convenience and efficiency, eliminating concerns about forgetting to turn off the lights and incurring unnecessary electricity costs

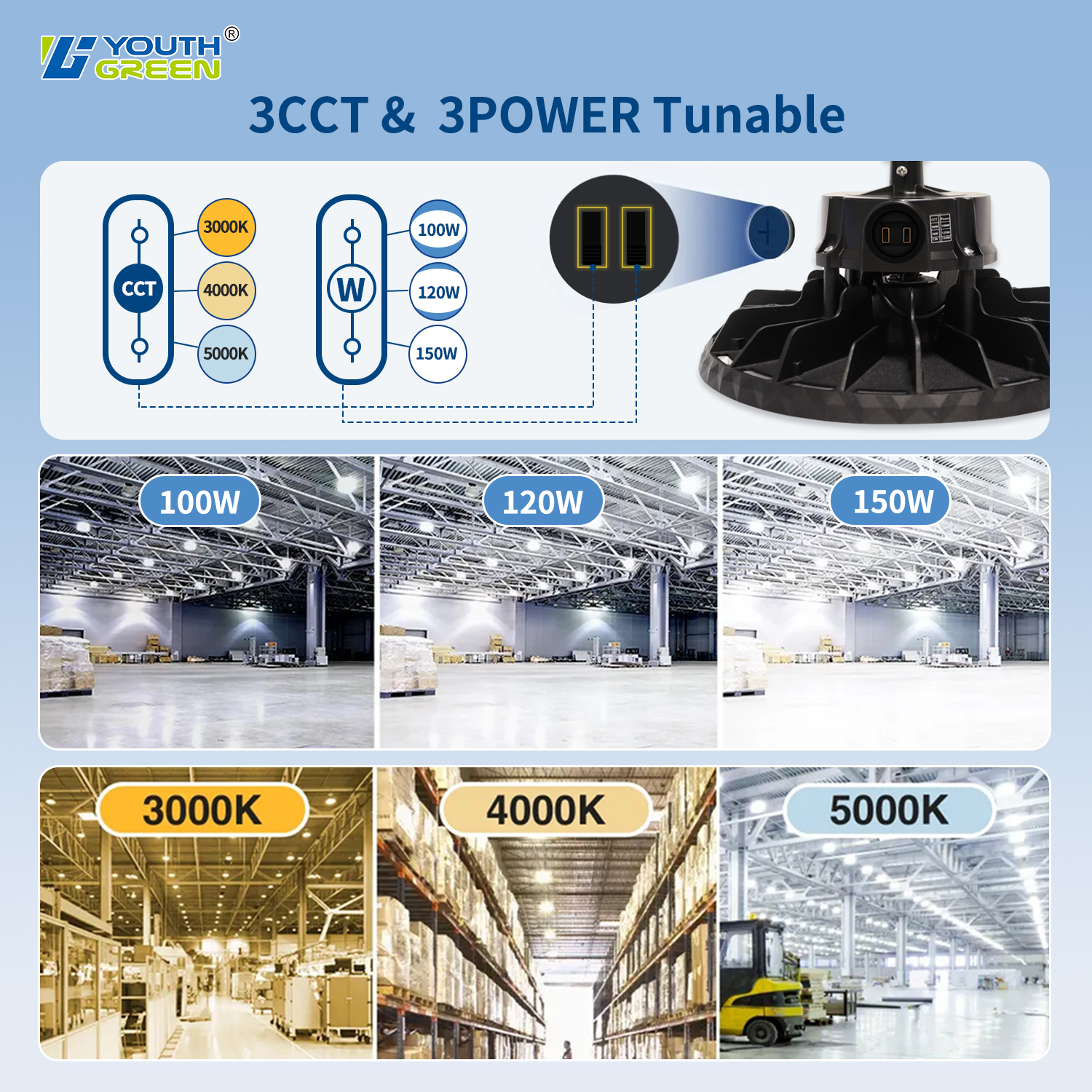

CCT & Power Tunable LED UFO High Bay Lights


  • Power: 150W (60%-80%-100%),200W (60%-80%-100%),240W (60%-80%-100%)

  • Lumen:>150LM/W

  • Input Voltage: AC120-277V,120V-347V

  • Frequency Range: 50Hz/60Hz

  • Color Temperalure: 3000K-4000K-5000K

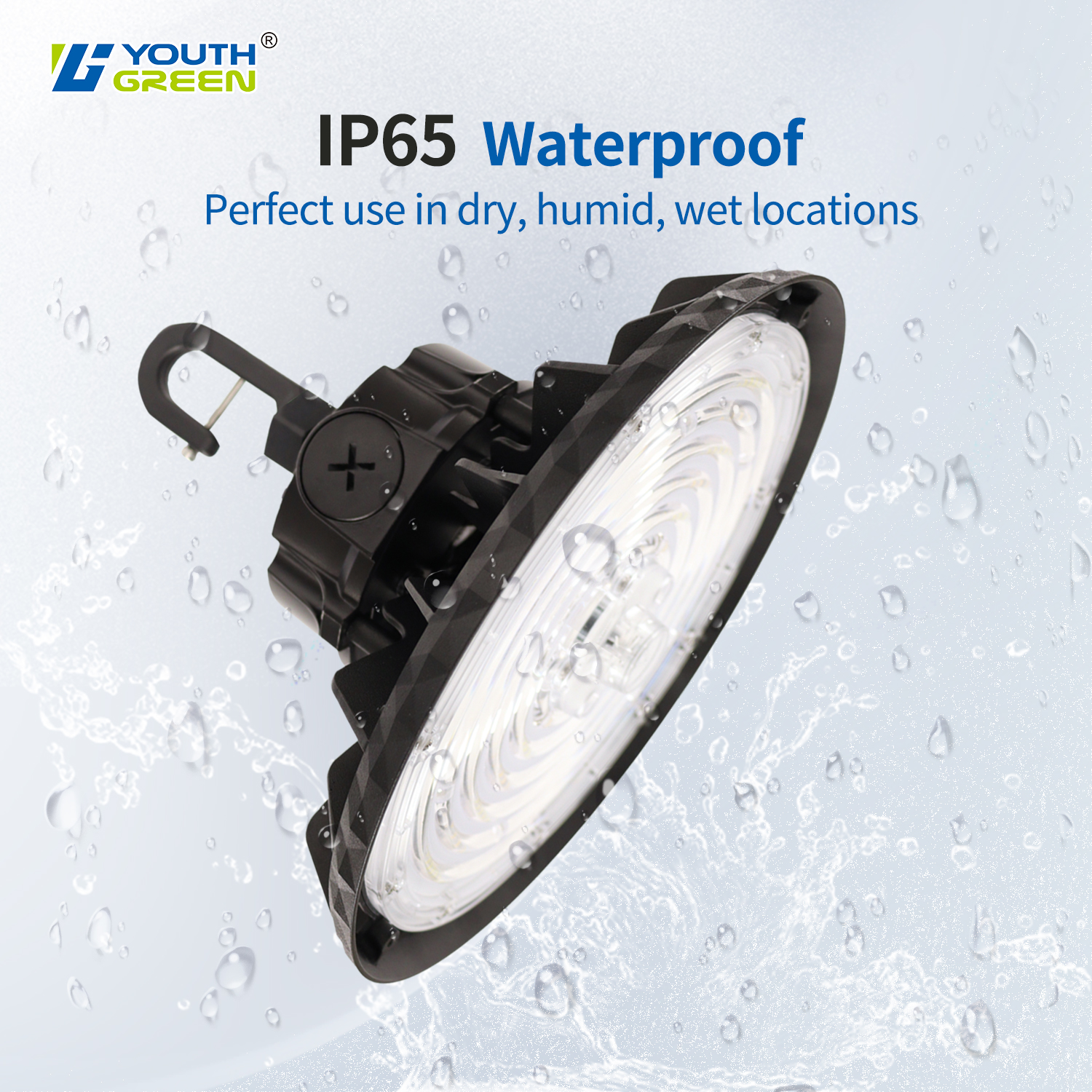

  • IP Rate: IP65(WATERPROOF)

  • Beam Angle: 60°/90°/120°

  • Housing Materials:ADC12

  • Optic Materials:PC

  • IK Rating:IK08

  • Electric Shock Protection Class:CLASS2

  • Sensor Model:microwave induction

  • LED Chips Type:2835SMD

  • Color Tolerance Range:step<7

  • CRI:>80

  • Beam Angles:60° 90° 120°

  • Operating Temperature Range:.-20 ℃- 40℃

  • Warranty: 5 years

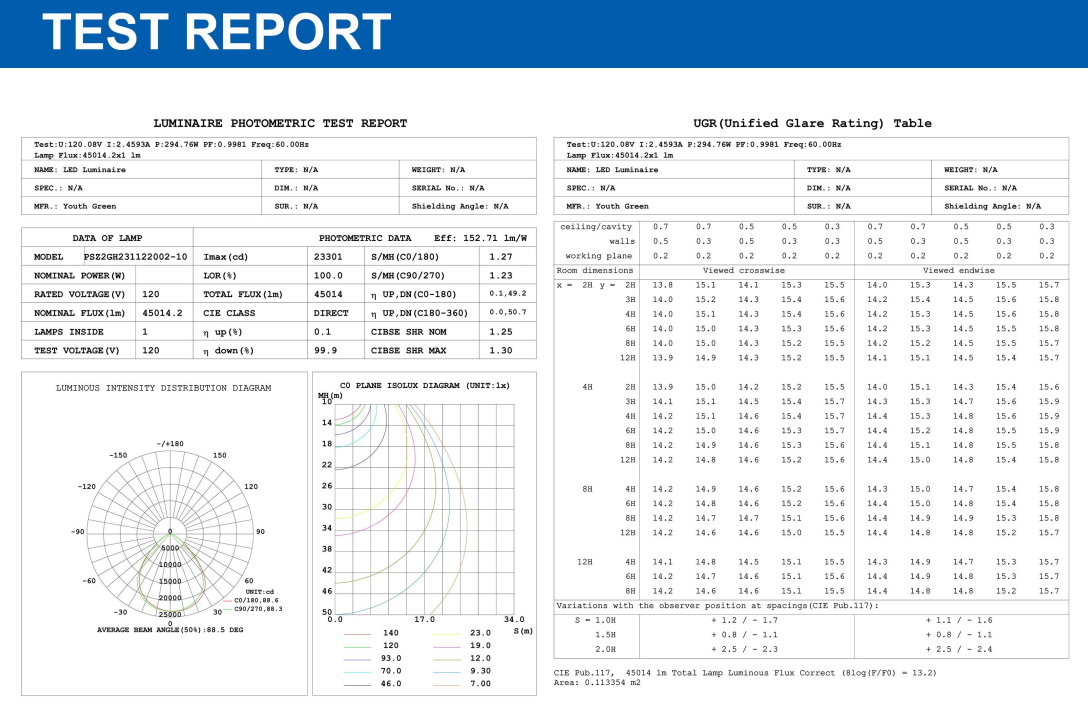

Test Report


 INSTRUCTIONS FOR PROPER ASSEMBLY


Mounting method 1:

  • Hooking Mounting Installation

    a.Drill corresponding size holes in the ceiling.Put the hook into the holes.

    b.Making the full fixture's ring hang on the hook.Keeping it stable.

    c.Notes distinguish the L/N/GND line.


Mounting method 2:

  • Hanging chain Installation

    a.Drill corresponding size holes in  the ceiling,Put the expansion bolts into holes.Fixed the hook on the ceiling with cut

    b.Using the chain's bukle button up the fixture's ring

    c.Hanging the chain's another-side ring on the hook with carefully

    d.Notes distinguish the L/N/GND line


Mounting method 3:

  • Ceiking Installation

    a.Drill corresponding size holes in the ceiling,put the expansion bolts into holes.fixed the hook on the ceiling with nut

    b.Locking up the fixture's bracket and Wall-mounting bracket with screw

    c.Notes distinguish the L/N/GND line

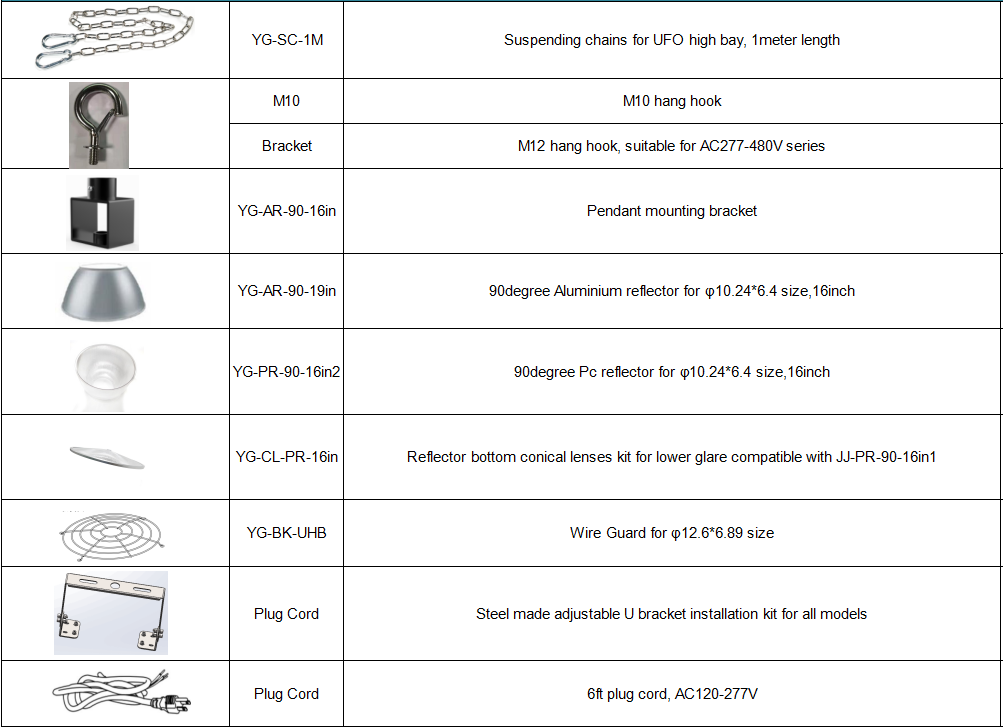

Accessories
