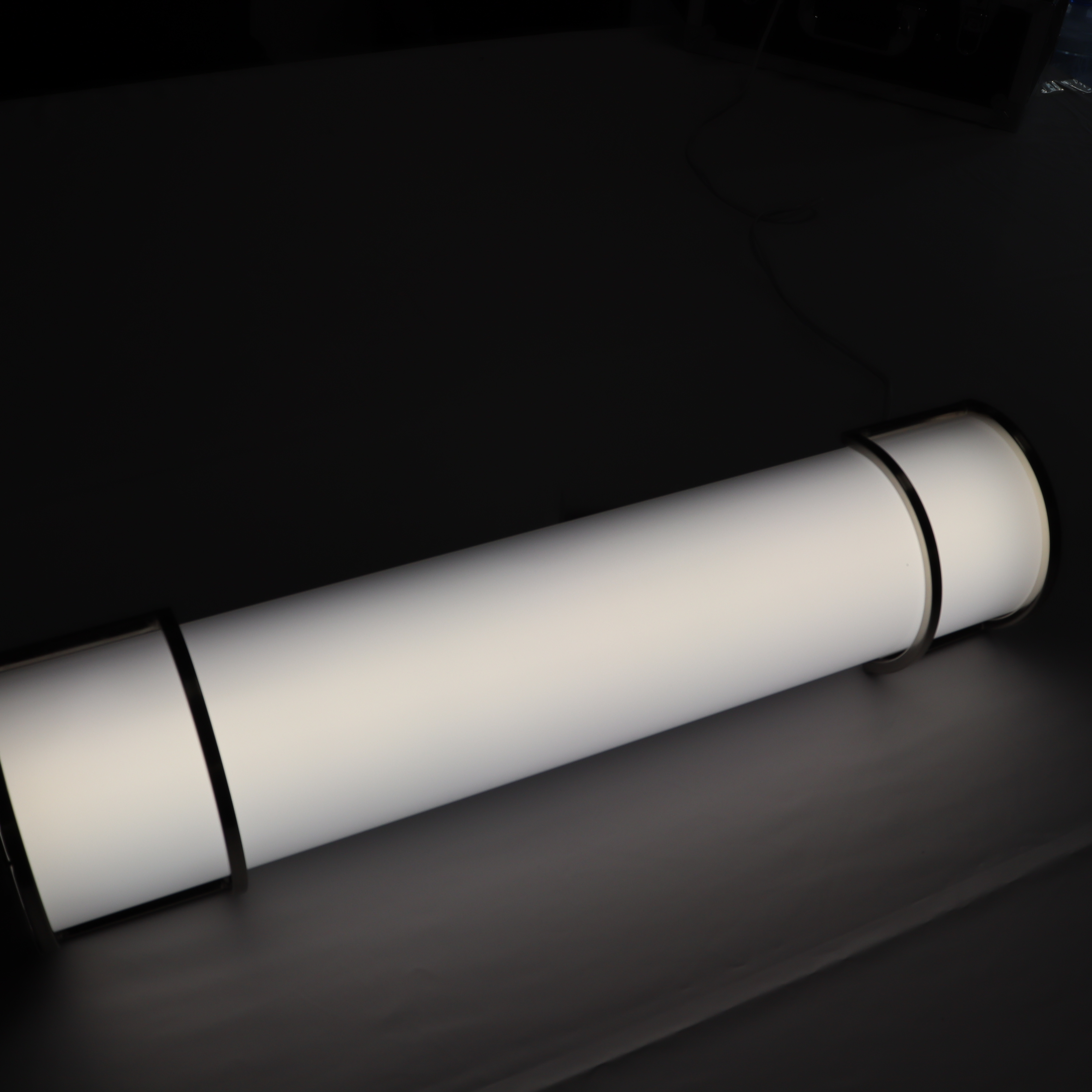

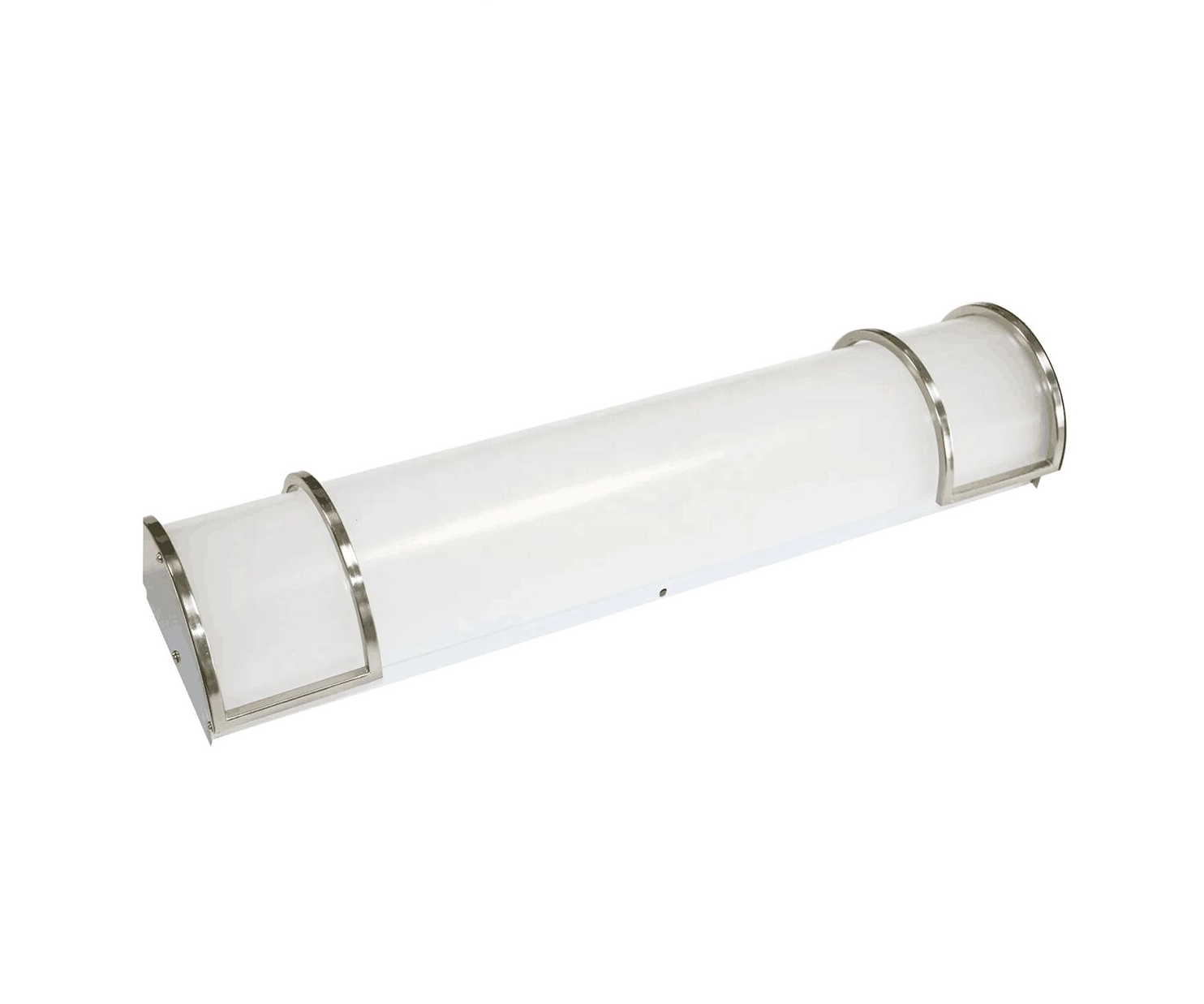

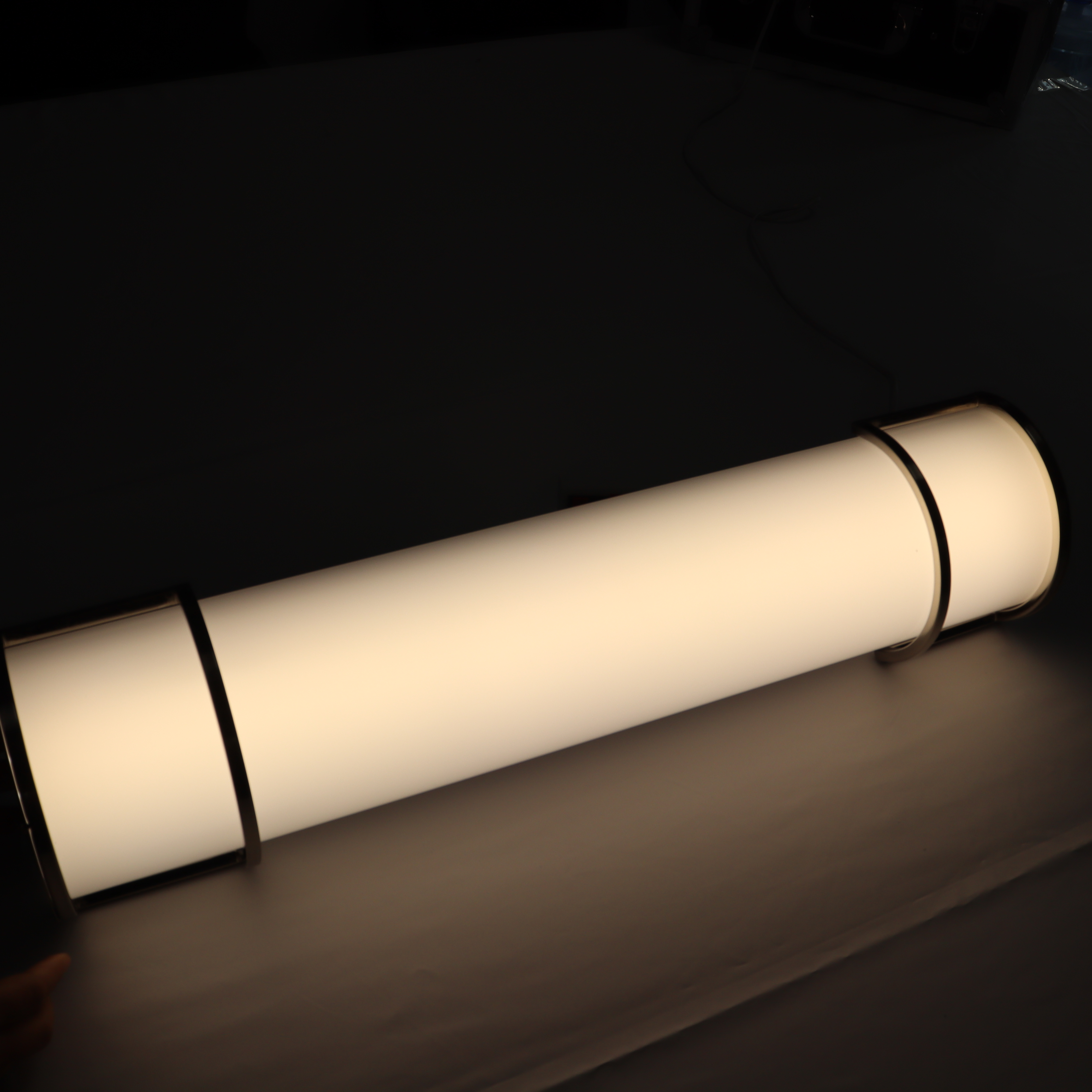

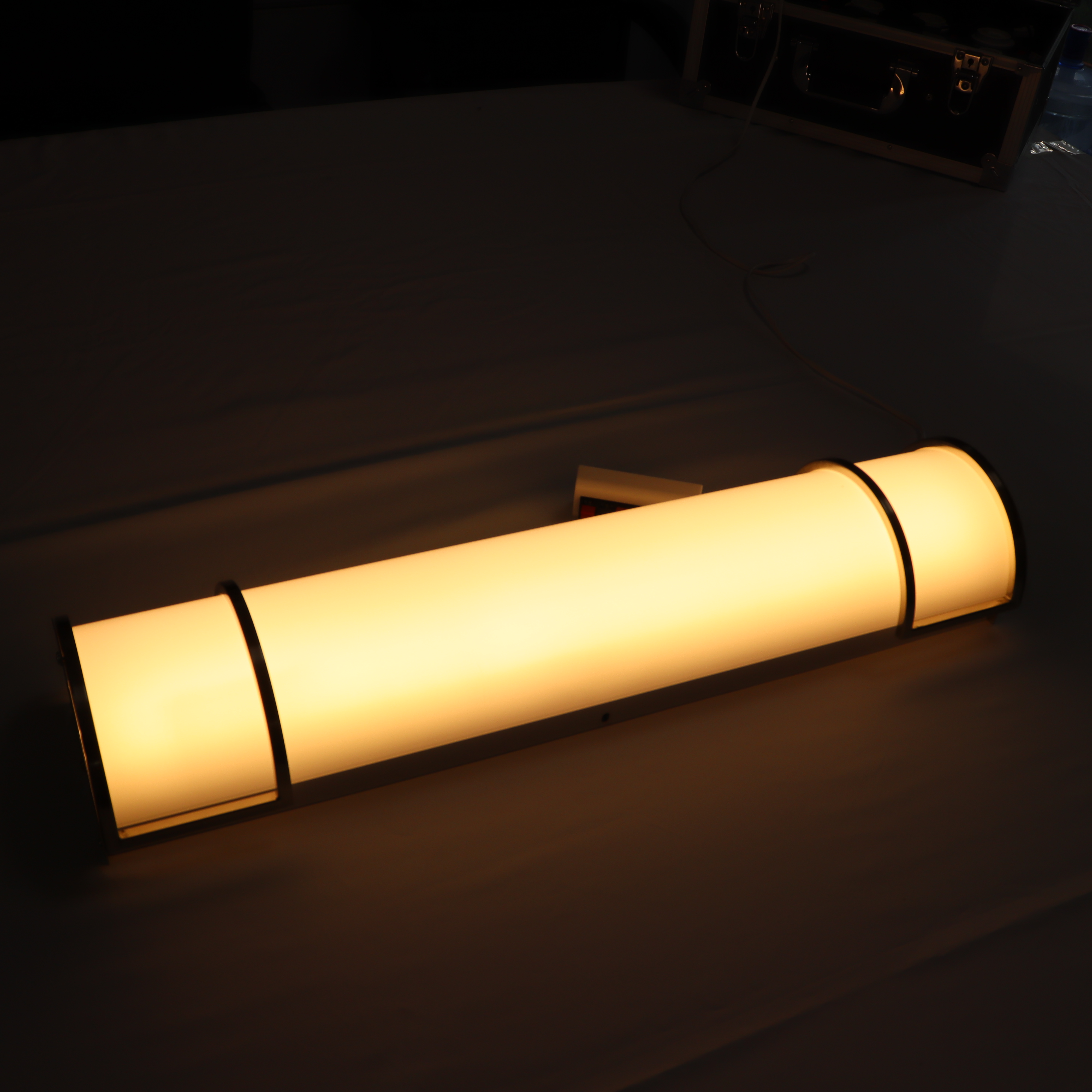

Long Tube Bath LED Flush Mount Vanity Lighting

Long Tube Bath LED Flush Mount Vanity Lighting

• Size : 24inch 36inch  48inch

• Power: 25W 30W 35W

• Lumen:2452LM,2942LM,3431LM

• IP Rate:IP44(Damp Locatios)

• 3CCT User Selectable 3000-4000-5000K

• CRI:80+

• Driver Input Voltage: 120V AC

• Default Driver Triac Dimmable 120v input

• Ambient Operating Temperature: (-39°C) to + (+40°C)

• Triac dimmable:5%-100% Dimmable.

• Room Type:‎Bathroom, Bedroom, Hallway, Kitchen

• Shape:‎Linear Half Cylinder Shape, Slim Oblong Hemi Cylindrical Tube, Long Straight Semi Rounded Form

• Warranty: 5 Year Commercial

• Certificates:ETLES,FCC

INSTRUCTIONS FOR PROPER ASSEMBLY

• Remove the screws fromthe lamp body for later use

• According to the hole position of the mountingplate,draw the distance of drilling on the wall, and turn the hole of 6mm on the wall with an electric drill

• Put the plastic granules packed by theaccessories into the opening hole

• The white line N-pole and black line L-poleof the lamp are connectedto the reserved powerline above the wall, and the ground wire is connected to the reserved ground wire above the wall.Align themounting hole position of the hardware disk with the mounting hole position of the mounting plate, and tighten the screws tosecure it to the wall







Note:

• This product is suitable for 120V voltage,please cutoff the power supply before installation.

• Take the lamps and accessories out of thepacking box and assemble them according to the installation schmatic diagram.Please ensure the firmess and reliability of installation,so as not to prevent the lamps from falling off and hurting yourself or others

• Do not use gasoline or water to wipe the lamps and lanters

• do not arbitrarily pull and twist the wire in order to avoid the danger of bad contact fire and electric shock,clean the lamps and lanters with a clean soft cloth,there will be temperature attention to prevent burns when the lamps and lanters work.
